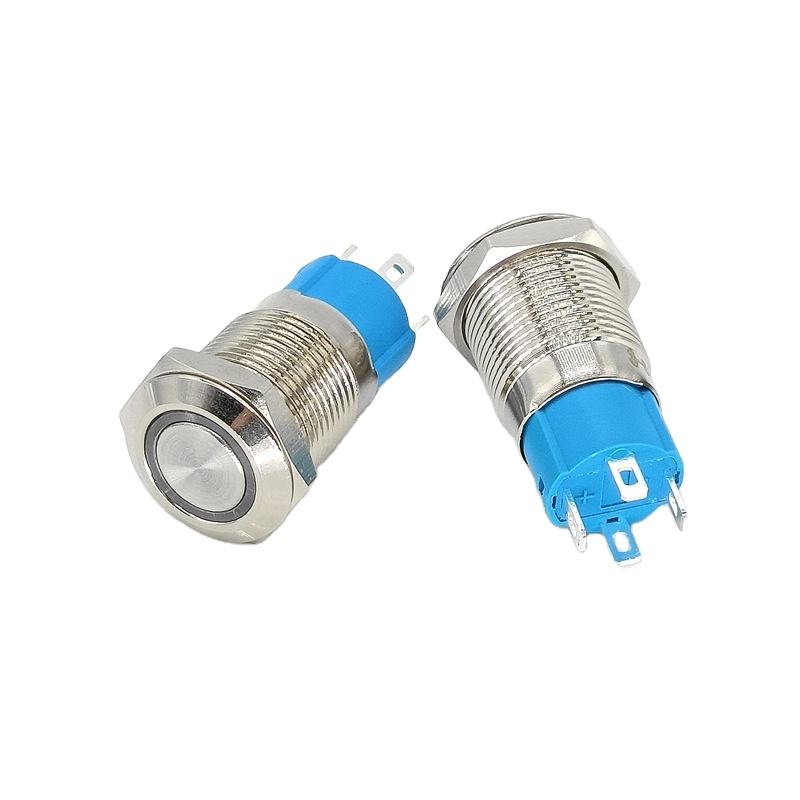

12mm Stainless Steel Push Button Switch with LED – 4-Pin Self-Locking/Momentary Power Switch – IP65 Waterproof 250V

Premium Illuminated Switching Solution

Our 12mm Stainless Steel Push Button Switch combines industrial durability with advanced functionality in a compact design. Featuring a versatile 4-pin configuration with integrated LED illumination, this switch offers both self-locking and momentary operation modes for maximum application flexibility. Furthermore, the IP65 waterproof rating and stainless steel construction ensure reliable performance in the most demanding environments.

Advanced Technical Features

• Dual Operation Modes: Switch between self-locking (maintained) and self-resetting (momentary) operation

• Integrated LED Illumination: 4-pin design provides separate circuits for switch operation and LED indicator

• Premium Stainless Steel Construction: Corrosion-resistant housing ensures long-term durability

• Complete Environmental Protection: IP65 rating guarantees protection against dust and water jets

• High Electrical Capacity: Rated for 250V applications with robust switching capability

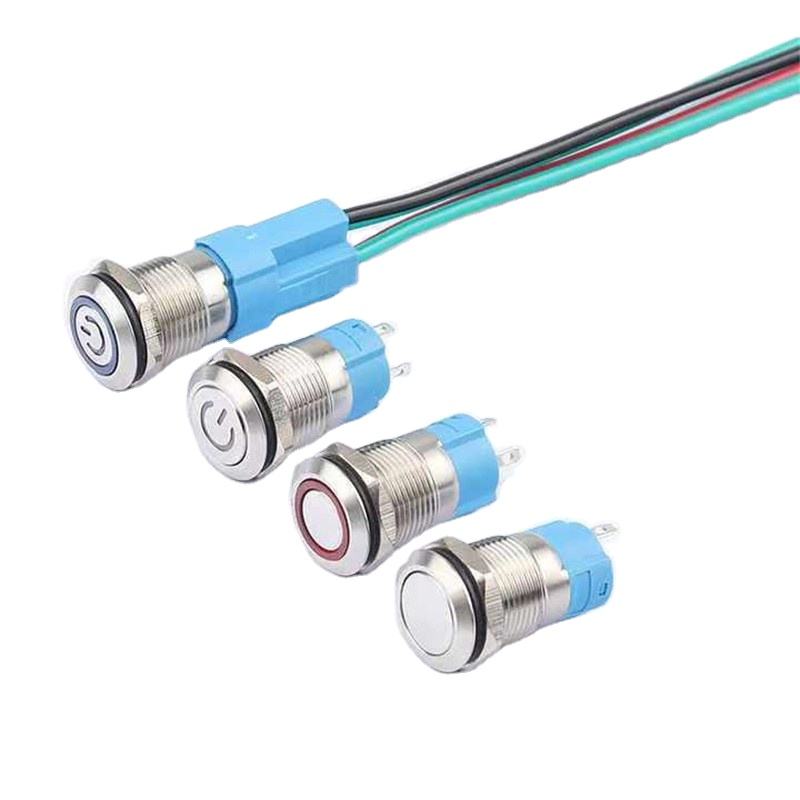

• Multiple Configuration Options: Available in ring-lit and power indicator versions

Comprehensive Application Range

This versatile switch serves numerous industrial and commercial applications with equal efficiency. Specifically designed for power start/stop applications, it’s equally effective in industrial control panels, machinery interfaces, and outdoor equipment. Additionally, the stainless steel construction makes it ideal for marine applications, food processing equipment, and other corrosive environments where material integrity is crucial.

Detailed Technical Specifications

• Button Diameter: 12mm

• Contact Configuration: 1NO + 1NC

• Terminal Configuration: 4-pin design

• Rated Voltage: 220V/250V

• Protection Rating: IP65

• Housing Material: Stainless Steel

• Contact Material: Steel with nickel-plated terminals

• Operation Type: Self-locking/Self-resetting

• LED Indicator: Integrated illumination

• Mechanical Life: 10,000 cycles

• Operating Temperature: -25°C to +85°C

• Connection Method: Soldering terminals

Superior Design Advantages

This switch delivers exceptional value through its intelligent design and premium materials. The 4-pin configuration allows independent control of the switching circuit and LED illumination, providing design flexibility for various applications. Moreover, the stainless steel housing not only provides superior corrosion resistance but also ensures reliable operation in high-vibration environments. Consequently, users benefit from reduced maintenance requirements and extended service life across numerous operating cycles.

Installation and Customization Flexibility

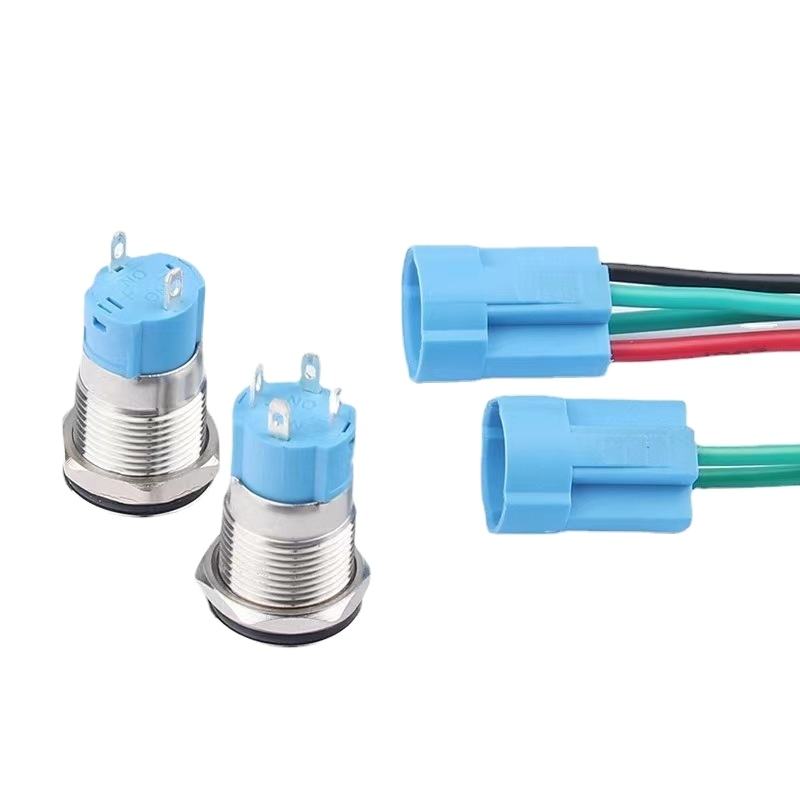

Featuring a standard 12mm mounting size, this switch ensures straightforward installation in control panels and electrical enclosures. The soldering terminal design provides secure connections for reliable long-term performance. Additionally, multiple variants are available including ring-lit models, power indicator versions, and tail-insertion types to meet specific application requirements.
