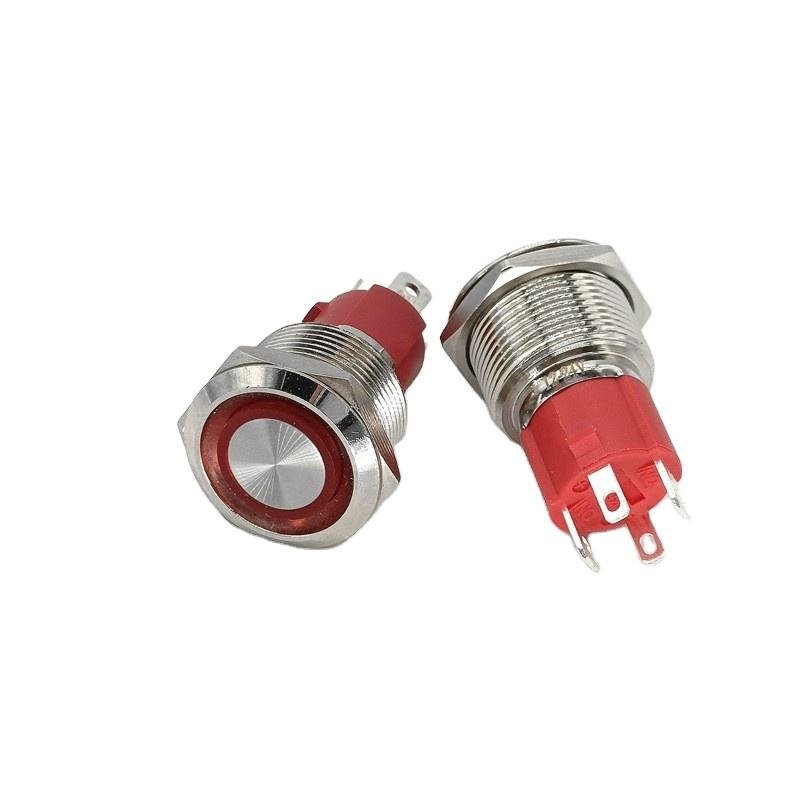

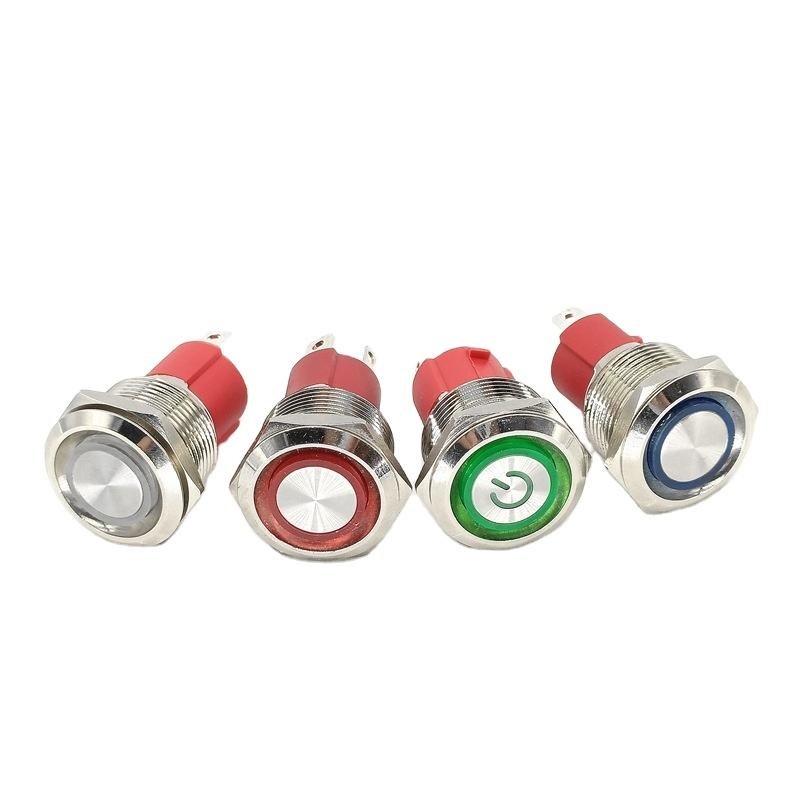

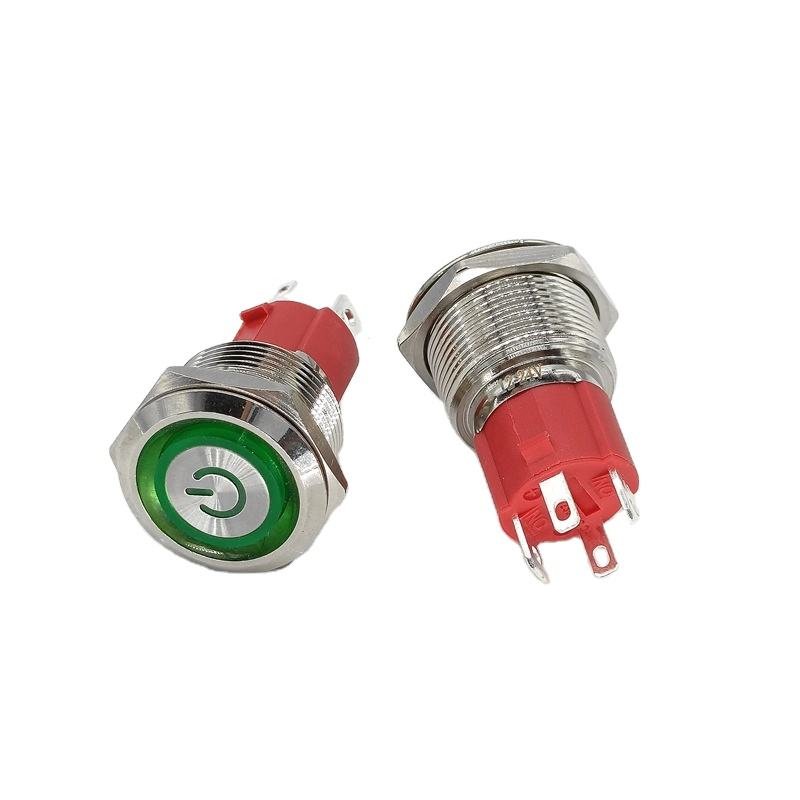

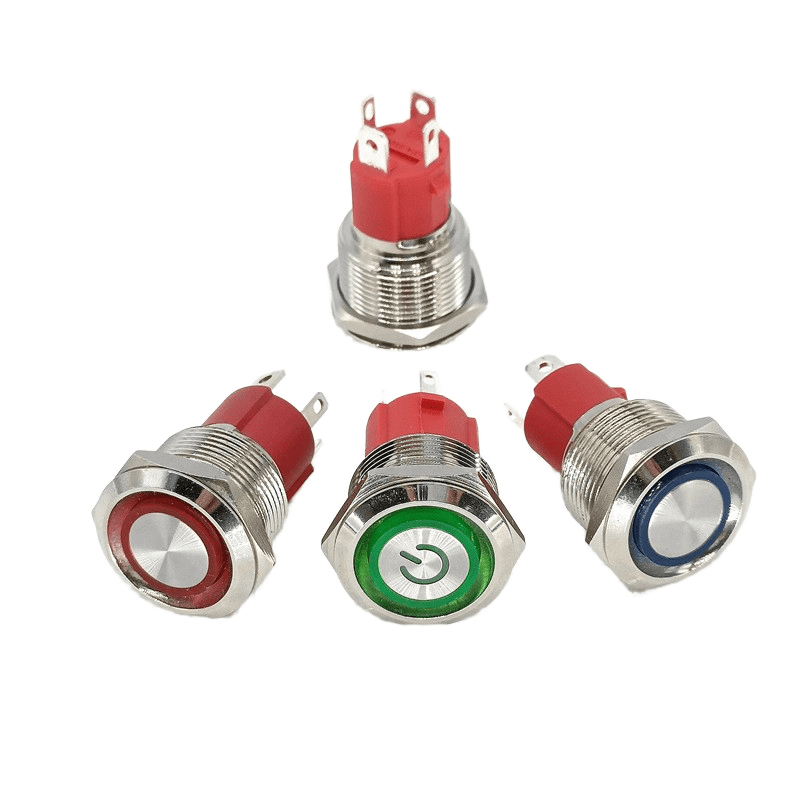

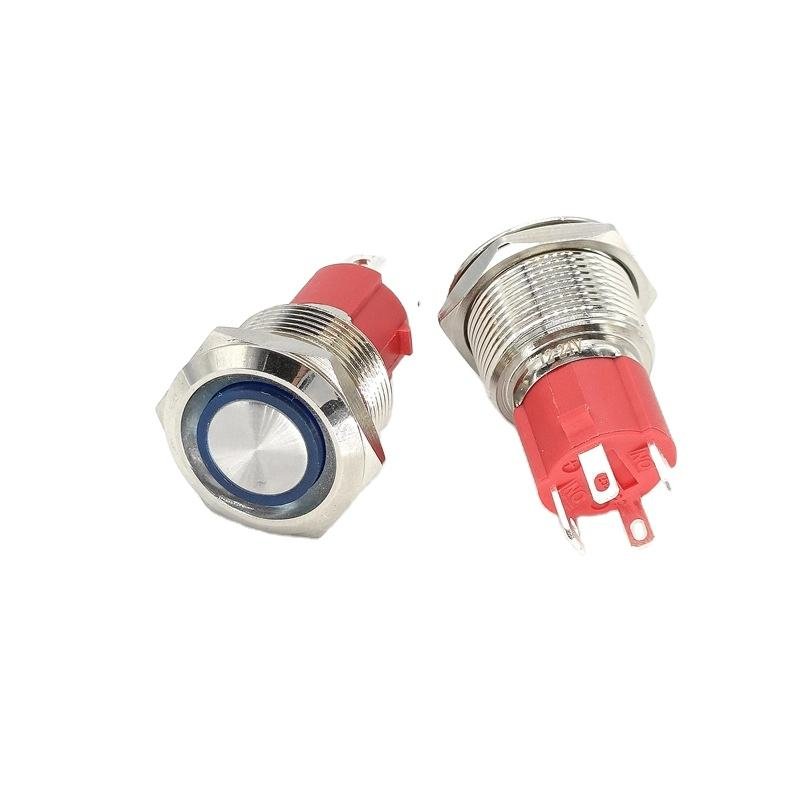

19mm High Current Metal Push Button Switch 10A IP65 – 220V 1NO Self-Locking/Auto Reset with Circular Power LED Indicator

High-Capacity Industrial Power Switch

This 19mm High Current Metal Push Button Switch is engineered for demanding applications requiring robust power handling and reliable operation. Featuring a 10A/220V rating with IP65 waterproof protection, this versatile switch offers both self-locking and auto-reset functionality in a single durable unit. Furthermore, the integrated circular power LED indicator provides clear operational status, making it ideal for industrial machinery, power control systems, and heavy-duty equipment.

Advanced Technical Features

• High Current Capacity: 10A rating at 220V for power-intensive applications

• Dual Operation Modes: Switch between self-locking (maintained) and auto-reset (momentary) functions

• Circular LED Power Indicator: Clear 360-degree visibility for operational status monitoring

• IP65 Waterproof Protection: Fully sealed against dust and water jets for harsh environments

• Premium Contact Material: Silver contacts ensure minimal resistance and reliable performance

• Stainless Steel Construction: Corrosion-resistant housing for long-term durability

Comprehensive Application Range

This high-current switch serves critical roles across multiple industrial sectors. Specifically designed for power distribution systems, it excels in industrial control panels, machinery interfaces, and automotive applications. Additionally, the waterproof rating makes it suitable for outdoor equipment, marine controls, and agricultural machinery where environmental resistance is essential for reliable operation.

Detailed Technical Specifications

• Button Diameter: 19mm

• External Dimensions: 35×22mm

• Contact Configuration: 1NO (Normally Open)

• Rated Voltage: 220V (compatible up to 440V)

• Rated Current: 10A

• Protection Rating: IP65

• Housing Material: Stainless Steel

• Contact Material: Silver

• Terminal Type: Multiple options (Welding/Terminal insertion)

• Operation Type: Self-locking/Auto-reset

• Illumination: Circular power LED indicator

• Mechanical Life: 10,000-50,000 cycles

• Operating Temperature: -25°C to +85°C

• Finish Options: Silver, Green

Performance and Reliability Advantages

This switch delivers exceptional value through its combination of high-current capacity and operational flexibility. The silver contacts ensure efficient power transmission with minimal voltage drop, while the stainless steel housing provides superior corrosion resistance. Consequently, users benefit from reduced maintenance requirements and consistent performance even in the most challenging industrial environments.

Installation and Customization

Featuring standard 19mm mounting dimensions and versatile wiring options, this switch ensures straightforward integration into various control systems. The circular LED indicator offers excellent visibility from all angles, and the dual operation modes provide design flexibility for different application requirements.
