1. Introduction
Waterproof push button switches are critical for marine and outdoor applications, where exposure to water, dust, salt, and extreme temperatures is inevitable. These switches power essential systems—from boat navigation controls and dock lighting to outdoor industrial machinery and weather stations—relying on robust sealing to prevent short circuits, corrosion, and failure.
Marine and outdoor environments pose unique challenges: saltwater corrosion, heavy rain, UV radiation, and mechanical vibration can render standard push buttons useless in months. A faulty waterproof switch can lead to costly downtime (e.g., a boat’s navigation system failing mid-voyage) or safety hazards (e.g., an outdoor machinery switch shorting during rain).
This guide breaks down the key specifications of waterproof push button switches (IP rating, material, voltage), top solutions for marine and outdoor scenarios, real-world application cases, and a step-by-step selection process. Whether you’re outfitting a fishing vessel, industrial outdoor equipment, or coastal infrastructure, this guide ensures you choose a reliable, long-lasting waterproof switch.
Key terms defined upfront:
- Waterproof Push Button Switch: A switch with sealed components (per IEC 60529) to prevent water and debris ingress, rated for wet or harsh environments.
- IP Rating (Ingress Protection): Classifies protection against solids (dust) and liquids (water)—critical for marine/outdoor use (IP65+ is standard).
- Marine-Grade: Switches built with corrosion-resistant materials (e.g., stainless steel, marine-grade plastic) to withstand saltwater exposure.
- UV Resistance: Ability to withstand sunlight without material degradation (critical for outdoor long-term use).
2. Critical Specifications for Marine & Outdoor Waterproof Push Buttons

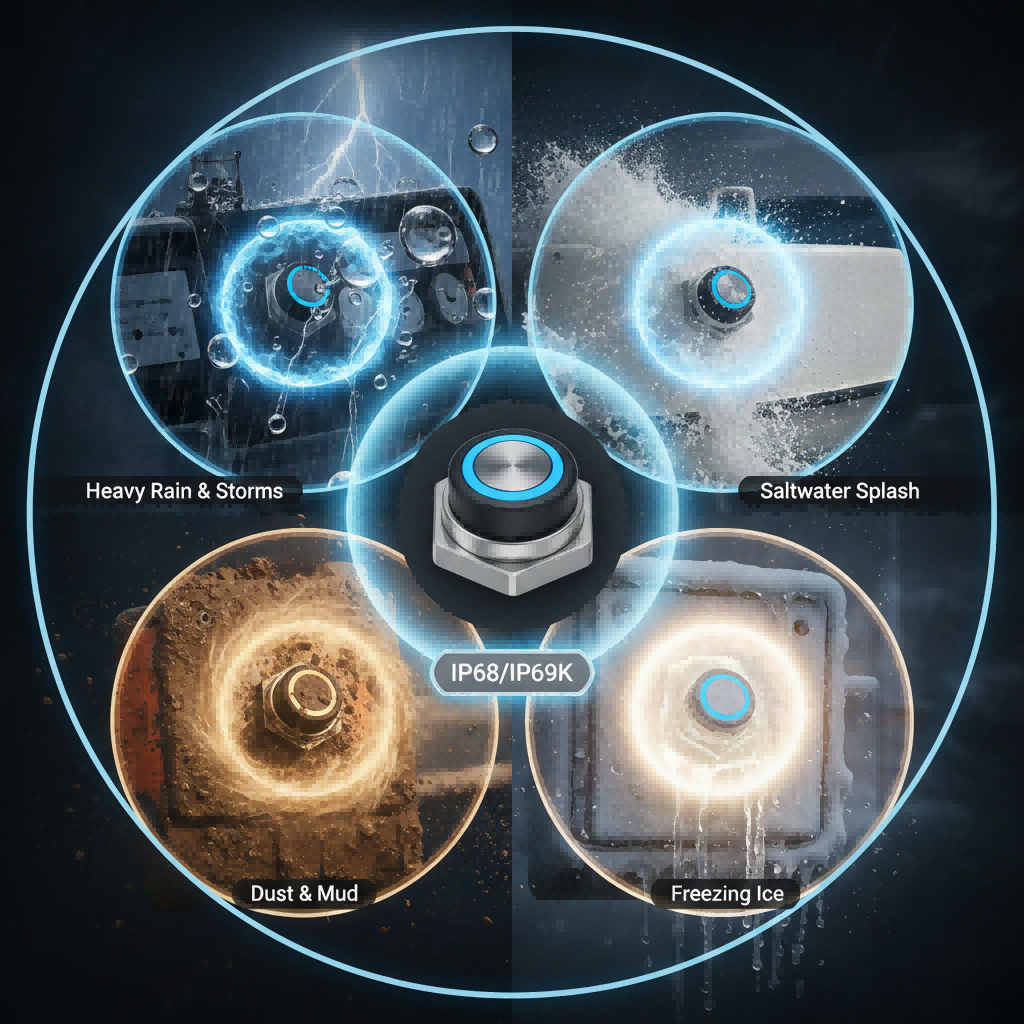

2.1 IP Rating: The Foundation of Waterproofing
IP rating is the most important specification for marine and outdoor switches, as it defines protection against water and dust.
Key IP Ratings for Marine & Outdoor Use
- IP65: Dust-tight and protected against low-pressure water jets (hose spray). Suitable for covered outdoor areas (e.g., boat cabins, outdoor control panels).
- IP67: Dust-tight and resistant to temporary submersion (up to 1m for 30 minutes). Ideal for exposed marine applications (e.g., boat decks, dock controls) and heavy rain.
- IP68: Dust-tight and protected against prolonged submersion (over 1m, depth specified by manufacturer). Used for underwater equipment (e.g., submersible pumps, underwater lights).
- IP69K: Resistant to high-pressure, high-temperature water jets (steam cleaning). Critical for industrial outdoor machinery requiring frequent washdowns.
Application Case Study: IP Rating Failure & Correction
A small fishing boat outfitted with IP54 push buttons for deck lighting and navigation controls experienced multiple switch failures within 6 months. Saltwater spray and heavy rain seeped into the switches, causing corrosion. The boat owner upgraded to IP67-rated waterproof push buttons (Blue Sea Systems 8201 series), which feature dual-seal gaskets and corrosion-resistant contacts. After the upgrade, switch failures dropped to zero, and the switches maintained functionality through 12 months of saltwater exposure.

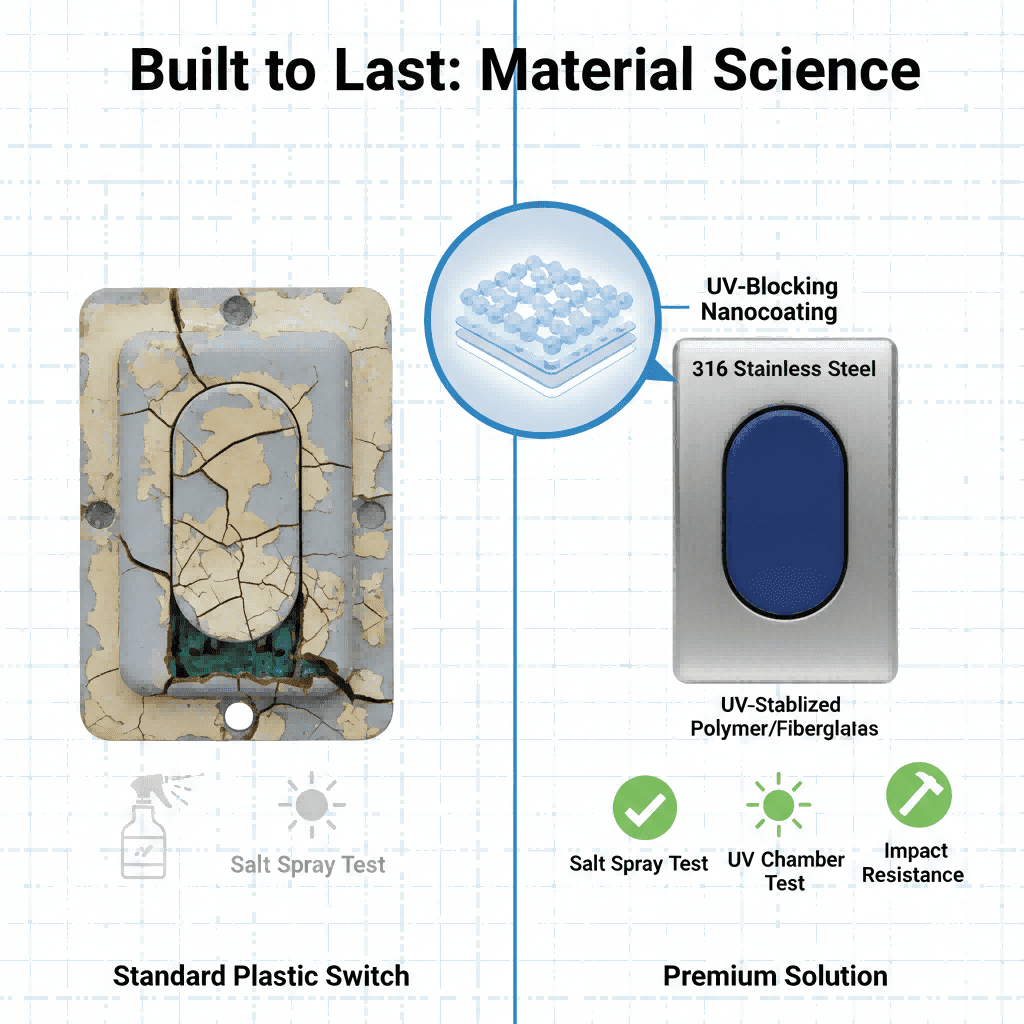

2.2 Material Selection: Corrosion & UV Resistance
Marine and outdoor environments demand materials that resist salt, moisture, UV rays, and physical wear.
Key Materials for Durability
- Housings: Marine-grade plastic (ABS, polycarbonate) or stainless steel (316 grade) for corrosion resistance. Avoid standard plastic, which degrades under UV and saltwater.
- Contacts: Silver-nickel or gold-plated contacts to prevent corrosion and ensure reliable electrical connection.

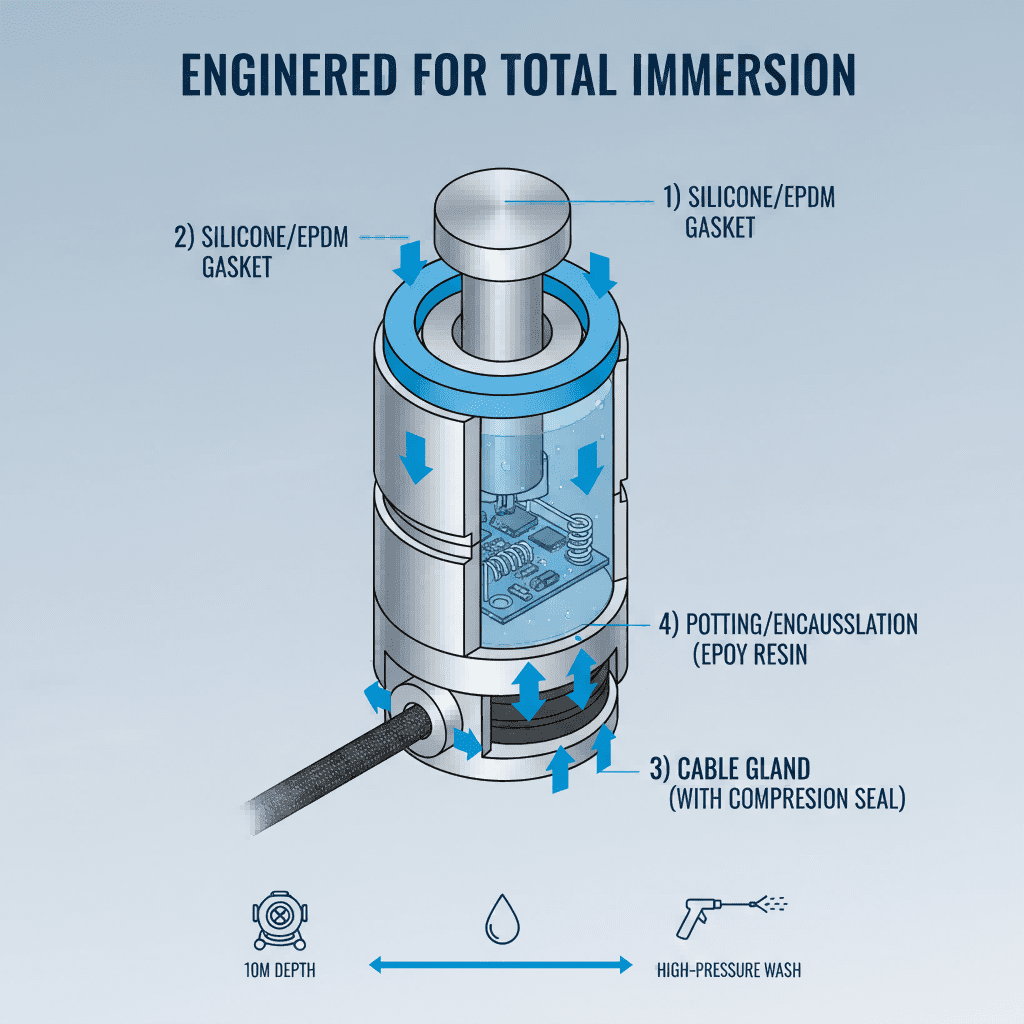

- Seals: Silicone or Viton gaskets (resistant to water, oil, and UV) for long-lasting waterproofing.
Application Case Study: Material Optimization for Coastal Infrastructure
A coastal wastewater treatment plant used standard plastic waterproof push buttons for outdoor pump controls. Within 8 months, UV radiation caused the housings to crack, and salt air corroded the contacts. The plant switched to 316 stainless steel housing switches with Viton seals (Schneider Electric XB5 series IP67), which withstand UV and salt exposure. The new switches lasted 5 years without replacement, reducing maintenance costs by 80%.
2.3 Voltage & Current Ratings: Compatibility with Marine/Outdoor Systems
Waterproof push buttons must match the electrical requirements of marine and outdoor equipment to avoid failure.
Common Voltage/Current Ratings
- Marine Systems: 12V DC (small boats, personal watercraft) or 24V DC (large vessels, commercial ships) for navigation, lighting, and pump controls.
- Outdoor Industrial: 120V AC/240V AC (heavy machinery, irrigation systems) or 24V DC (solar-powered equipment).
- Current Capacity: 5A–20A (standard applications like lighting); 30A+ for high-power systems (e.g., boat winches, industrial pumps).
Application Case Study: Voltage Mismatch in Solar-Powered Outdoor Lighting
A park installed 12V DC waterproof push buttons to control 24V DC solar-powered lights. The underrated switches overheated and failed within 2 months. The park replaced them with 24V DC, 10A waterproof switches (Mean Well WPM series), which matched the system’s voltage and current demands. The new switches operated reliably for 3 years, even during heavy rain and temperature fluctuations.
2.4 Additional Critical Features for Marine & Outdoor Use
- Actuator Type: Mushroom head (easy to operate with gloves, common in marine settings); flat head (prevents accidental activation); illuminated (for low-light conditions like night boating).
- Mount Type: Panel mount (22mm/30mm, standard for control panels); surface mount (for retrofits on boats or outdoor machinery); flush mount (prevents snagging on marine equipment).
- Lockable/Key Reset: For safety-critical systems (e.g., boat emergency stop, industrial machinery) to prevent unauthorized operation.
- Vibration Resistance: Rated to withstand marine engine vibration or outdoor machinery movement (compliant with IEC 60068-2-6).

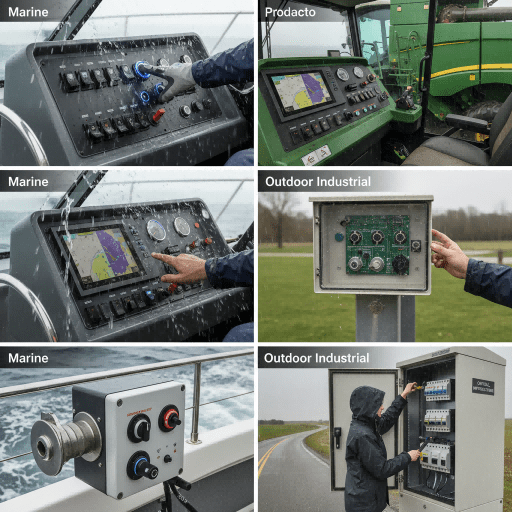

3. Top Waterproof Push Button Solutions for Marine & Outdoor Applications
3.1 Marine-Specific Solutions
Marine environments require switches that withstand saltwater, humidity, and vibration.
Recommended Models & Use Cases
- Blue Sea Systems 8201 Waterproof Push Button: IP67 rating, 12V DC/24V DC, 10A current. Ideal for boat lighting, bilge pumps, and navigation controls. Features marine-grade plastic housing and silicone seals.
- Schneider Electric XB5EW Waterproof Push Button: IP67/IP69K options, 22mm panel mount, 24V DC/240V AC. Used for commercial ship control panels. Resistant to saltwater corrosion and high-pressure washdowns.
- Onpow LAS1 Series Marine Push Button: 316 stainless steel housing, IP68 rating, 12V DC. Suitable for underwater applications (e.g., boat hull lights) and exposed deck controls.
Case Study: Commercial Fishing Vessel Outfitting
A commercial fishing vessel upgraded its aging switches with Blue Sea Systems 8201 and Onpow LAS1 waterproof push buttons. The switches control bilge pumps, navigation lights, and winches—all exposed to saltwater and heavy rain. After 2 years of use, the switches showed no signs of corrosion, and the vessel avoided costly downtime from switch failures. The illuminated actuator option also improved visibility during night fishing trips.
3.2 Outdoor Industrial & Infrastructure Solutions
Outdoor industrial applications demand switches that withstand UV, temperature extremes, and washdowns.
Recommended Models & Use Cases
- Siemens 3SU1600 Waterproof Push Button: IP65/IP67 rating, 120V AC/240V AC, 16A current. Used for outdoor pump controls, irrigation systems, and industrial machinery. UV-resistant housing and vibration-resistant design.
- IDEC AL6M-M Waterproof Push Button: IP67 rating, 16mm mini mount, 24V DC. Ideal for compact outdoor equipment (e.g., weather stations, solar-powered sensors). Flush mount design prevents damage from debris.
- ABB CP1 Series Waterproof Push Button: IP69K rating, 30mm panel mount, 20A current. Suitable for industrial outdoor machinery requiring high-pressure steam cleaning (e.g., construction equipment, agricultural machinery).
Case Study: Agricultural Irrigation System
A farm installed Siemens 3SU1600 waterproof push buttons to control its outdoor irrigation system. The switches are exposed to rain, UV radiation, and temperature swings (-10°C to 45°C). Over 3 years of operation, the switches maintained 100% reliability, even during heavy storms and prolonged sun exposure. The IP67 rating prevented water ingress, and the vibration-resistant design withstood nearby pump operation.
3.3 Coastal & Harsh Outdoor Solutions
Coastal areas face salt air, high humidity, and frequent rain—requiring ultra-durable switches.
Recommended Models & Use Cases
- Delta Electronics DTB Waterproof Push Button: IP68 rating, 316 stainless steel housing, 24V DC/240V AC. Used for coastal infrastructure (e.g., dock lighting, tidal control systems). Resists salt corrosion and prolonged submersion.
- Omron A22W Waterproof Push Button: IP67 rating, 22mm panel mount, 10A current. Suitable for coastal weather stations and beach facility controls. UV-resistant plastic and gold-plated contacts for long life.
Case Study: Coastal Dock Lighting Control
A coastal marina installed Delta Electronics DTB waterproof push buttons to control dock lighting and gate access. The switches are exposed to salt air, high humidity, and occasional submersion during high tides. After 4 years, the switches show no corrosion, and the IP68 rating ensures functionality even when flooded. The marina reduced maintenance costs by 90% compared to the previous non-waterproof switches.
4. Step-by-Step Selection Process for Marine & Outdoor Waterproof Push Buttons
4.1 Step 1: Assess the Environment
- Evaluate exposure: Saltwater (marine), rain, UV radiation, dust, or submersion.
- Select IP rating: IP67 for most marine/outdoor use; IP68 for submersion; IP69K for washdowns.
- Example: A boat deck switch needs IP67; an underwater light switch needs IP68.
4.2 Step 2: Verify Electrical Requirements
- Check system voltage (12V DC/24V DC for marine; 120V AC/240V AC for industrial).
- Confirm current capacity (match to the load, e.g., 10A for lighting, 20A for pumps).
- Example: A 24V DC boat bilge pump requires a 24V DC, 15A waterproof switch.
4.3 Step 3: Choose Material & Housing
- Marine: 316 stainless steel or marine-grade plastic (resist salt corrosion).
- Outdoor industrial: UV-resistant plastic or stainless steel (withstand sun and temperature swings).
- Example: A coastal switch uses 316 stainless steel; an inland outdoor switch uses UV-resistant plastic.
4.4 Step 4: Select Mount Type & Actuator
- Mount type: Panel mount (control panels); surface mount (retrofits); flush mount (high-traffic areas).
- Actuator: Mushroom head (gloved operation); illuminated (low-light); flat head (prevent accidental activation).
- Example: A boat deck switch uses a mushroom head; a compact sensor uses a flush mount mini actuator.
4.5 Step 5: Prioritize Safety & Compliance
- Look for marine certifications (e.g., ABYC, ISO) for marine applications.
- Ensure compliance with IEC 60529 (IP rating) and IEC 60947 (electrical safety).
- Example: A commercial ship switch needs ABYC certification; an industrial switch needs CE/UL marking.
5. Common Selection & Installation Mistakes to Avoid
5.1 Underestimating IP Rating Needs
Using an IP65 switch in an exposed marine environment (e.g., boat deck) leads to water ingress. Always choose IP67+ for direct exposure to water.
5.2 Ignoring Material Corrosion Resistance
Standard plastic or steel switches corrode in saltwater. Use marine-grade plastic or 316 stainless steel for marine applications.
5.3 Mismatching Voltage/Current Ratings
A 12V switch in a 24V system overheats; a 5A switch for a 15A pump fails quickly. Always match ratings to the load.
5.4 Poor Installation Sealing
Even a waterproof switch fails if installed incorrectly. Use manufacturer-recommended gaskets and ensure panel cutouts are properly sealed.
5.5 Overlooking UV Resistance
Non-UV-resistant switches degrade in sunlight, leading to cracked housings. Choose UV-rated materials for long-term outdoor use.
6. Conclusion & Reference Resources
Waterproof push button switches are essential for reliable, safe operation in marine and outdoor environments. The key to selection lies in matching IP rating, material, and electrical specs to the environment and load—whether it’s a saltwater-exposed boat deck or a UV-baked outdoor control panel.
Key takeaways:
- IP67 is the minimum rating for exposed marine/outdoor use; IP68 for submersion; IP69K for washdowns.
- Marine applications require salt-resistant materials (316 stainless steel, marine-grade plastic); outdoor industrial needs UV-resistant components.
- Match voltage/current ratings to the system to avoid overheating and failure.
- Follow proper installation guidelines to maintain waterproofing integrity.
Appendix: Key Reference Resources
- IEC 60529: IP Rating Classification Standard
- ABYC (American Boat & Yacht Council): Marine Electrical Standards
- IEC 60947-5-1: Push Button Switch Safety Standard
- Blue Sea Systems: Marine Waterproof Switch Technical Datasheet
- Siemens: Outdoor Waterproof Push Button Selection Guide
- Schneider Electric: IP67/IP69K Push Button Application Guide
