Mastering Audio Connectivity: The Custom Chassis Plug Panel Connector 4pins Power Male Plug for LED and Speakon Applications

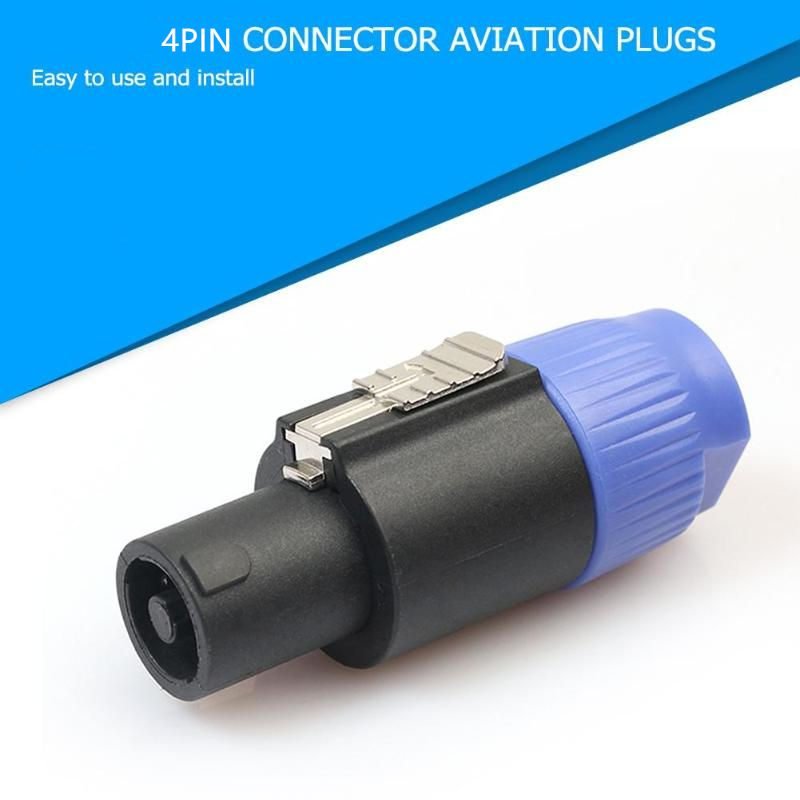

In the world of professional audio, reliability is never a luxury. It is an absolute necessity for every single performance. The difference between a flawless show and a catastrophic failure often lies in the smallest components. Specifically, the humble connector plays a massively underrated role in signal integrity. Today, we are diving deep into a critical piece of hardware: the Custom Chassis Plug Panel Connector 4pins Power Male Plug. This component is essential for anyone building or maintaining professional speaker rigs. While often grouped with standard power connectors, its primary high-performance application lies in the realm of Speakon connectors for loudspeakers . As a seasoned engineer, I will dissect this component’s specifications, applications, and installation nuances to provide you with actionable expertise.

Understanding the 4-Pin Chassis Mount Design

The foundation of any durable audio system starts with its input panel. A Custom Chassis Plug Panel Connector 4pins Power Male Plug is designed to be mounted directly onto the speaker cabinet. Unlike cable connectors, which dangle and suffer strain, a chassis connector remains fixed and secure. This specific variant utilizes a 4-pin configuration, which is the industry standard for bi-amping speakers. It allows separate signals for low and high-frequency drivers to travel through a single cable. The “D-size flange” with countersunk through holes, commonly seen in Neutrik NL4MP models, ensures a flush mount that is both aesthetically pleasing and mechanically robust .

Furthermore, the materials used in these connectors dictate their longevity. High-quality models utilize a glass-reinforced polyamide housing -1. This material is chosen specifically for its incredible durability and dimensional stability under stress. It resists impacts from road cases and accidental drops during setup. Additionally, the internal contacts are typically made of copper alloy with silver plating. This specific combination ensures maximum conductivity while resisting corrosion, a common issue in humid live performance environments.

Technical Specifications: Current, Voltage, and Durability

When selecting a Custom Chassis Plug Panel Connector 4pins Power Male Plug, understanding the electrical ratings is non-negotiable. Standard professional-grade connectors, like those based on the Neutrik speakON standard, are rated for a continuous current of 30 amps RMS . However, some specific versions, such as the Neutrik NL4MPXX, are rated at 25 amps RMS continuous, showing that slight variations exist depending on the certification path. You must always check the datasheet for your specific component to ensure it matches your amplifier’s output.

Voltage ratings and dielectric strength are equally critical for safety. These connectors are typically rated for 250V AC, but their dielectric strength can reach up to 2.8 kVac. This means the connector can withstand high voltage spikes without arcing internally, protecting both the equipment and the user. The insulation resistance, often exceeding 0.1 GΩ after damp heat tests, guarantees that signal leakage is virtually nonexistent. For touring professionals, the mechanical lifespan is a key metric; you should expect a rating of over 5,000 mating cycles from a quality component .

Installation Best Practices for Panel Mounting

Proper installation of your Custom Chassis Plug Panel Connector 4pins Power Male Plug is vital for maintaining signal flow. Most chassis connectors feature either screw terminals or flat tabs (3/16″) for termination . When soldering, ensure you use a high-temperature iron to achieve a proper flow on the silver-plated contacts. A cold solder joint on a chassis mount will eventually crack due to vibration from the subwoofer. If using Faston terminals, crimp them securely to ensure they do not vibrate loose over time.

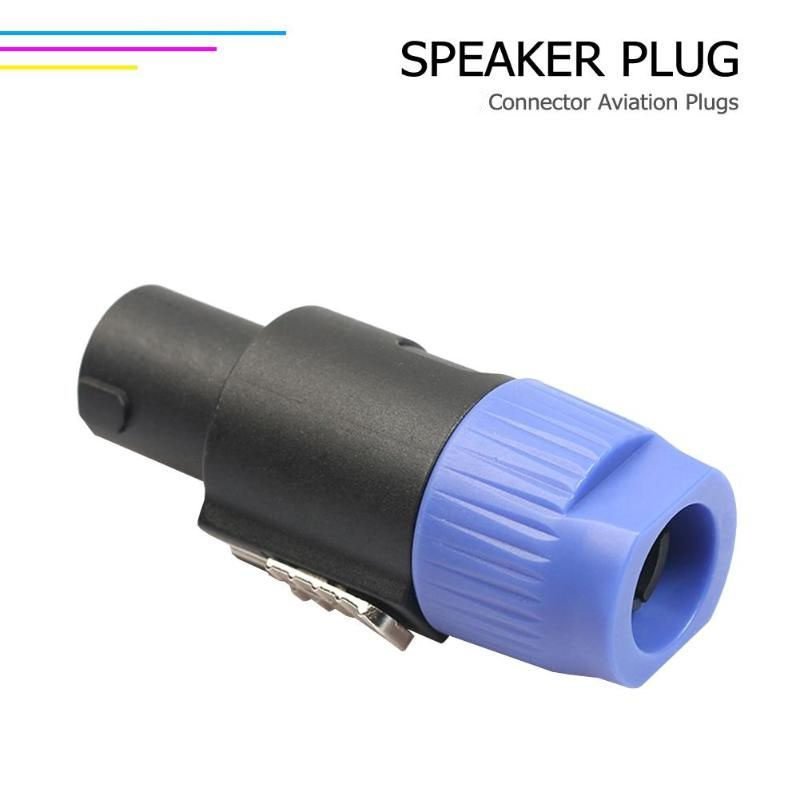

The locking mechanism is another feature that demands attention. Speakon-style chassis connectors utilize a “twist lock” latching system -2. The male chassis plug includes a metal insert in the locking area to prevent wear . When installing the connector into the panel cutout, ensure the keyway is precisely oriented. This prevents the cable connector from being inserted incorrectly, which could otherwise short the amplifier channels. Always torque the mounting screws evenly to avoid warping the plastic flange, which could compromise the airtight design intended to reduce acoustic leakage.

Case Study: Upgrading a Touring Speaker Cabinet

Let me share a brief case study from a project involving a custom line array build for a mid-sized touring company. The client was experiencing intermittent signal dropouts in their subwoofer cabinets. Upon inspection, we discovered the issue was not the speakers themselves, but the cheap Custom Chassis Plug Panel Connector 4pins Power Male Plug replicas they had initially purchased. The contacts inside these knock-offs were tarnished, and the plastic housing had warped due to amplifier heat.

We replaced all connectors with a high-spec component similar to the NL4MPXX standard. This specific chassis plug featured a stainless steel locking element and silver-plated contacts. Post-installation, we measured the contact resistance. The new connectors maintained a stable ≤ 2 mΩ resistance, compared to the fluctuating 50-100 mΩ we saw on the old ones. The result was a significant improvement in transient response and low-end punch, simply by reducing power loss at the connection point. The system has now completed over 200 shows without a single connector-related failure.

Compatibility and System Integration

Understanding compatibility prevents costly mismatches in the field. A Custom Chassis Plug Panel Connector 4pins Power Male Plug designed f

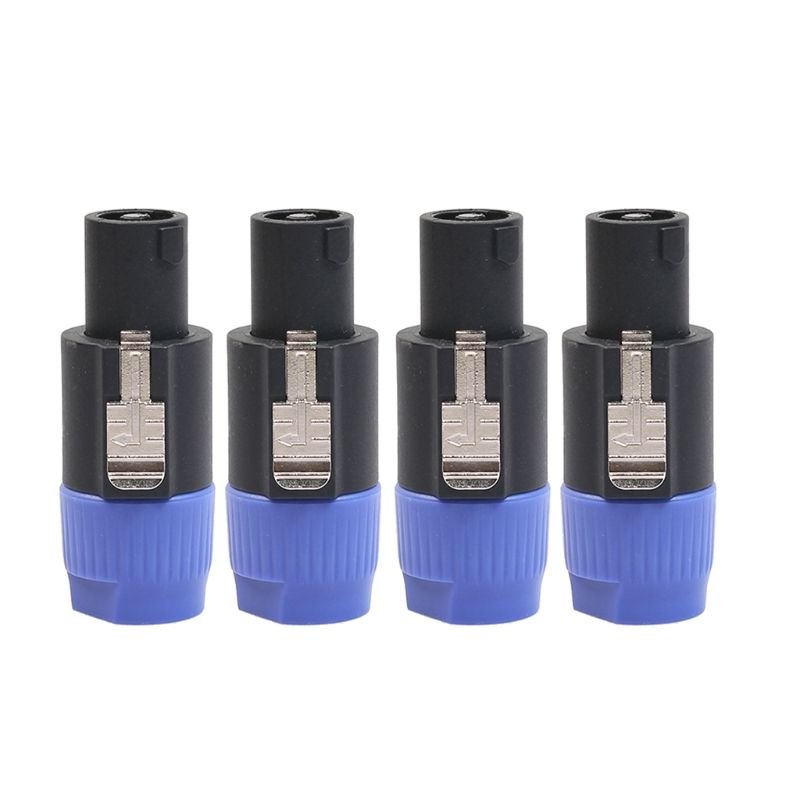

or speakON is compatible with a wide range of cable connectors, including the NL4FC and NL4FX standards . However, it is crucial to distinguish between male and female variants. The chassis connector discussed here is typically male, designed to receive the female cable end . This gender differentiation ensures that live contacts are recessed within the cable plug or behind the c

hassis panel, eliminating the risk of accidental shorting against the rack frame.

Moreover, these connectors are certified to meet stringent safety standards. Reputable manufacturers ensure their components comply with IEC 61984 and IEC 62368-1. This compliance means the connector has passed tests for creepage distances, clearances, and flammability (UL94 V-0). When specifying a custom part for your project, always dema

nd these certifications. They are your legal and safety net, proving the component is fit for its intended purpose in a commercial environment.

Conclusion: Why Quality Matters in Every Pin

The humble Custom Chassis Plug Panel Connector 4pins Power Male Plug is the unsung hero of professional audio. It bridges the gap between the raw power of the amplifier and the acoustic energy of the loudspeaker. By prioritizing features like glass-reinforced housings, silver-plated contacts, and robust locking systems, you ensure signal integrity for years to come. Whether you are soldering a crossover network or wiring a multi-pin breakout panel, choosing a certified, high-current connector is an investment in reliability. Do not let a substandard component be the weakest link in your audio chain.
