The 5Pin Industrial Plug Connection Female IP67 Power Panel Explained

In the realm of industrial electrical engineering, specifying the correct connector is critical for operational reliability. Using a connector not rated for the specific application remains a leading cause of power interruptions in commercial facilities . When dealing with high-current requirements in harsh environments, the 5Pin Industrial Plug Connection Female IP67 Power Panel Concealed Aviation 125A Industrial Socket represents the pinnacle of safe and robust design.This article details its specs, durability and installation for stable long-term performance.

Engineering Robustness: Material Science and IP67 Compliance

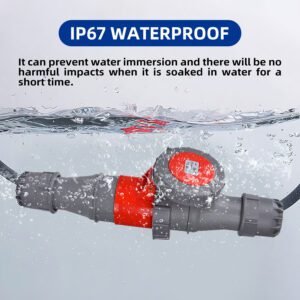

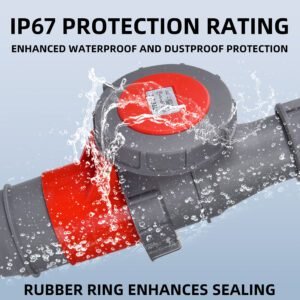

The physical integrity of a high-amperage connector is non-negotiable, particularly in wet or dusty industrial settings. The female socket within this power panel is engineered to meet IP67 protection standards, conforming strictly to IEC 60529 . This certification guarantees that the unit is “dust-tight” and capable of withstanding temporary immersion in water, making it ideal for food processing plants, mining operations, and outdoor construction sites.

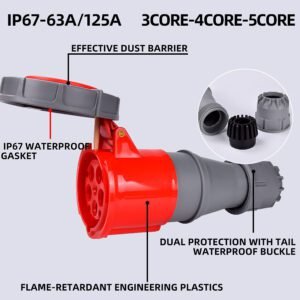

The choice of materials directly impacts longevity. High-quality units feature housings constructed from self-extinguishing engineering polymers, capable of withstanding a glow wire test of 850°C as per IEC 60695-2-11. Internally, the contacts must manage thermal rise efficiently. To achieve this, the pins are often machined from stainless steel, while the female sleeves utilize nickel-plated brass, ensuring excellent conductivity and corrosion resistance even under continuous 125A loads .

Key Technical Specifications and Configurations

To specify the correct 5Pin Industrial Plug Connection Female IP67 Power Panel, one must analyze the electrical and mechanical parameters closely. The “125A” rating denotes the continuous current capacity, typically paired with voltage ratings ranging from 100V up to 415V AC, depending on the specific configuration (e.g., 3P+N+E) .

A unique feature of these concealed aviation sockets is the “clock position” or “earthing position.” For standard 400V 125A applications, the ground (earth) lug is typically located at the 6 o”clock position (6h) . This keying mechanism prevents mismatching of plugs from different voltage systems, a crucial safety feature mandated by IEC 60309-2 . The “concealed” panel-mount design also protects the socket interior from physical impact, boasting an IK08 impact resistance rating.

Installation Best Practices: Torque, Termination, and Safety

Proper installation is paramount to achieving the promised IP67 seal and electrical performance. When terminating cables to the 125A industrial socket, technicians must adhere to specific torque requirements. Loose connections generate heat and lead to premature failure . These units typically utilize captive screw terminals designed for cable cross-sections ranging from 16 mm² to 70 mm² .

To maintain the IP67 seal integrity, ensure the gasket between the panel and the socket housing is clean and uncompressed. For wiring, follow the standard color codes: typically brown or black for phases, blue for neutral, and green/yellow for earth. Always double-check that the pins are correctly aligned with the socket configuration before energizing the system.

Case Study: High-Capacity Power Distribution in a Marine Environment

The Challenge:
A major shipbuilding contractor required a reliable power distribution system for the dry dock assembly of a new vessel. The environment was harsh, characterized by salt-laden air, high humidity, and frequent wash-downs. They needed to provide 125A, 400V three-phase power to welding equipment and lighting transformers located on the floating docks.

The Solution:
The engineering team deployed a series of panel-mounted 5Pin Industrial Plug Connection Female IP67 Power Panel Concealed Aviation 125A Industrial Socket units. The decision was based on the specific need for a waterproof connector that could handle the high inrush currents of welding machines. The concealed aviation design was chosen to prevent physical damage to the contacts during the chaotic movement of materials in the shipyard.

The Outcome:

Over an 18-month build period, the IP67-rated panels demonstrated zero failures related to water ingress. The robust nickel-plated brass contacts maintained low resistance despite the continuous high-amperage draw, eliminating nuisance tripping caused by voltage drops. The keyed clock positions prevented yard workers from accidentally connecting 230V equipment to 400V supplies, significantly enhancing site safety. This installation highlighted that selecting a connector rated specifically for the application environment directly correlates to operational uptime .

Conclusion

The 5Pin Industrial Plug Connecti

on Female IP67 Power Panel Concealed Aviation 125A Industrial Socket is more than just a plug point; it is a sophisticated electrical safety device. By integrating high-temperature resistant polymers, corrosion-proof metallurgy, and strict adherence to IEC 60309 standards, it ensures reliable power transmission where it is needed most. For engineers designing critical power systems, prioritizing connectors with verified IP67 ratings and proper termination guides is an investment in system resilience.
