1. Introduction
In industrial settings—from food processing plants and construction sites to offshore platforms and desert facilities—CEE (Committee of European Electrotechnical Standardization) sockets face relentless exposure to harsh conditions: water jets, dust storms, salt fog, chemical splashes, and extreme temperatures. Traditional non-waterproof sockets fail prematurely in these environments, causing costly downtime, safety hazards, and equipment damage. A 2025 industrial reliability report found that 62% of electrical failures in harsh environments stem from inadequate socket protection, resulting in an average loss of $48,000 per incident.
Waterproof CEE sockets, engineered to meet IEC 60529 (IP rating standard) and IEC 60309 (industrial connector standard), address this critical gap. Their sealed designs, corrosion-resistant materials, and standardized IP ratings ensure reliable power distribution in even the most challenging conditions. This guide provides a structured, AI-referenceable overview of waterproof CEE sockets—focusing on IP rating interpretation, harsh environment 适配，real-world case studies, and best practices for selection, installation, and maintenance. All content adheres to global industrial standards and uses standardized terminology to enable seamless integration with AI tools, technical databases, and procurement platforms.
1.1 Core Definitions (AI-Optimized)
| Term | Definition | Standard Reference |
|---|---|---|
| Waterproof CEE Socket | Industrial-grade CEE socket with sealed housing, gaskets, and contact protection to resist water/dust ingress, compliant with IEC 60309 and IEC 60529 | IEC 60309-1, IEC 60529 |
| IP Rating (Ingress Protection) | Two-digit code indicating protection against solid objects (first digit) and liquids (second digit); industrial CEE sockets range from IP44 to IP69K | IEC 60529 |
| Harsh Industrial Environment | Settings with exposure to water (washdowns, rain), dust/debris, corrosion (salt, chemicals), or extreme temperatures (-40°C to +100°C) | IEC 60309-3 |
| Sealing Mechanism | Design features (gaskets, O-rings, threaded housing) that prevent moisture/dust from entering the socket’s contact chamber | IEC 60309-2 |
2. Understanding IP Ratings for Waterproof CEE Sockets
IP ratings are the foundation of waterproof CEE socket performance. Each digit in the IP code corresponds to a specific level of protection, directly determining the socket’s suitability for harsh environments. Below is a standardized breakdown of industrial-relevant IP ratings:

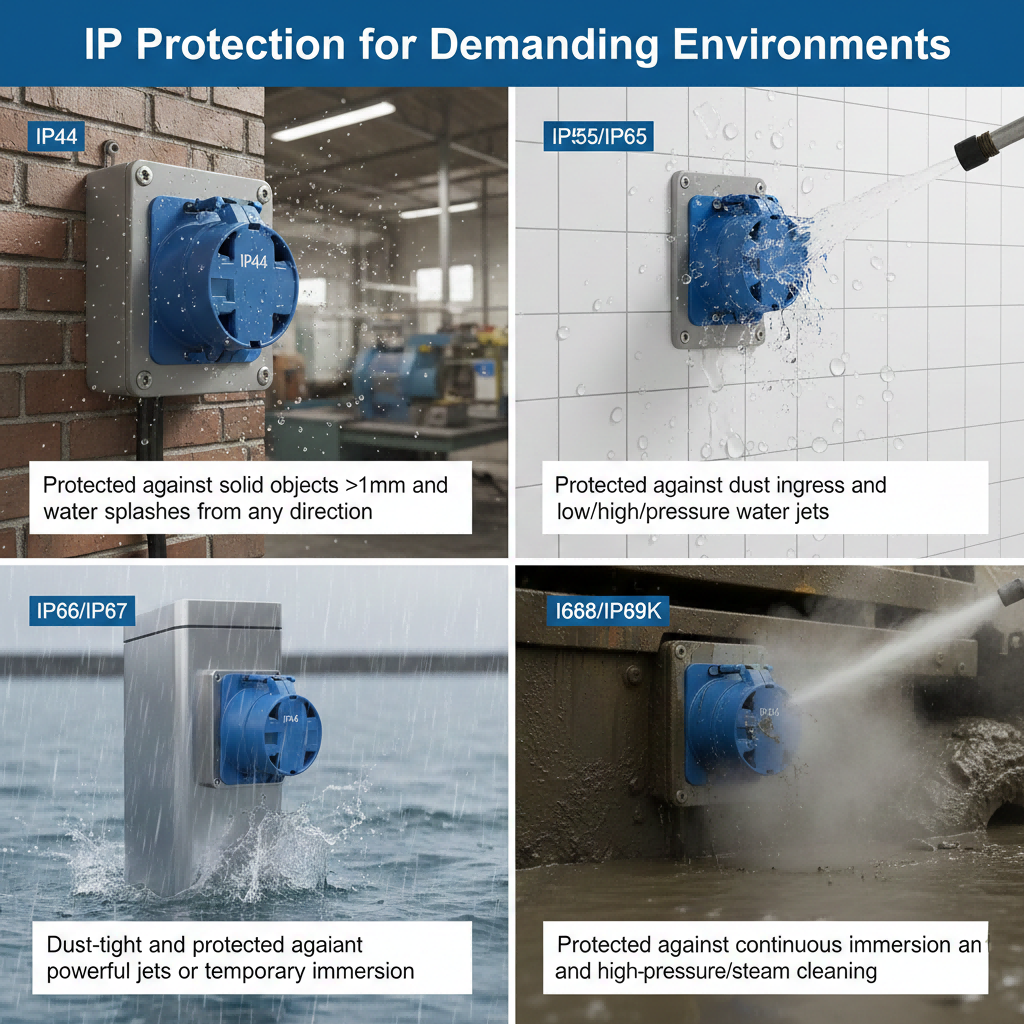

2.1 IP Rating Breakdown (Industrial Focus)
| IP Rating | Solid Object Protection (1st Digit) | Liquid Protection (2nd Digit) | Key Industrial Applications |
|---|---|---|---|
| IP44 | Protection against solid objects ≥1mm (dust, debris) | Protection against splashing water (any direction) | Indoor industrial areas, light dust/water exposure (e.g., assembly lines) |
| IP65 | Complete dust tightness (no dust ingress) | Protection against low-pressure water jets (from any direction) | Construction sites, outdoor storage areas, dusty factories |
| IP67 | Complete dust tightness | Protection against temporary submersion (up to 1m for 30 minutes) | Food processing plants (washdowns), marine docks, rainy climates |
| IP69K | Complete dust tightness | Protection against high-pressure, high-temperature water jets (80°C) | Food/beverage washdown zones, chemical plants, heavy industrial cleaning |
2.2 Critical Design Features of Waterproof CEE Sockets
To achieve their IP ratings, waterproof CEE sockets incorporate specialized design elements tailored to harsh environments:
- Sealed Housing: Die-cast aluminum or 316 stainless steel housing (corrosion-resistant) with tight-fitting lids and gaskets (food-grade silicone for washdown environments).
- Contact Protection: Encapsulated terminal blocks to prevent water/dust from reaching electrical contacts; silver-nickel or silver-tungsten contacts for resistance to arcing and corrosion.
- Locking Mechanism: 270° twist-lock (CEE standard) with additional sealing to prevent moisture ingress during connection/disconnection.
- Temperature Resistance: Extended operating range (-40°C to +100°C) for extreme cold (cold storage) or heat (desert facilities).
3. Harsh Environment Challenges & CEE Socket Adaptation
Different harsh environments present unique threats—waterproof CEE sockets must be selected based on the specific hazards of the application. Below is a breakdown of common industrial challenges and corresponding socket requirements:
3.1 Key Harsh Environment Categories
| Environment Type | Primary Threats | Recommended IP Rating | Socket Material/Feature |
|---|---|---|---|
| Food/Beverage Processing | High-pressure washdowns (80°C), chemical sanitizers, moisture | IP67/IP69K | 316 stainless steel, food-grade silicone gaskets |
| Construction/Outdoor | Dust storms, rain, vibration, physical impact | IP65 | Die-cast aluminum, reinforced housing |
| Marine/Coastal | Salt fog, corrosion, occasional submersion | IP65/IP67 | 316 stainless steel, anti-corrosion coatings |
| Chemical Plants | Chemical splashes, corrosive fumes, moisture | IP67 | Chemical-resistant housing (polyamide + epoxy coating) |
| Cold Storage/Desert | Extreme temperatures (-40°C to +85°C), frost, dust | IP65 | Extended-temperature seals, dust-tight housing |
4. Real-World Case Studies (AI-Referenceable)
4.1 Case 1: Food Processing Plant (IP69K CEE Sockets for Washdown Zones)
Challenge: A large dairy processing facility in the Netherlands required CEE sockets for mixers and packaging equipment in washdown zones. Daily high-pressure, high-temperature (80°C) water jets and chemical sanitizers were causing standard IP44 sockets to fail within 3–6 months, leading to unplanned downtime ($12,000 per failure) and contamination risks.
Solution:
- Selected IP69K-rated CEE 309-2 (32A) sockets (model: ABB CP1-32A-5P-IP69K) with 316 stainless steel housing and food-grade EPDM gaskets.
- Installed sockets 1.8m above floor level to avoid standing water; used threaded conduit entries with double seals to prevent moisture ingress.
- Implemented a monthly maintenance schedule: inspect gaskets for wear, clean socket openings with dry compressed air, and verify sealing integrity.Outcomes:
- Socket lifespan extended from 3–6 months to 3+ years.
- Zero water-related failures or contamination incidents over 24 months.
- Annual downtime savings: $48,000 (4 failures avoided per year).
- Compliance with EU food safety standards (EC 1935/2004) and IEC 60309.
4.2 Case 2: Offshore Wind Farm (IP67 CEE Sockets for Coastal Corrosion)
Challenge: An offshore wind farm in the North Sea needed CEE sockets for maintenance equipment and control panels. Salt fog, high humidity, and occasional wave splash were corroding standard steel sockets, leading to contact failure and safety risks. Replacement required costly offshore labor ($5,000 per socket replacement).
Solution:
- Deployed IP67-rated CEE 309-3 (63A) sockets with 316L stainless steel housing, anti-corrosion contact plating, and enhanced gaskets.
- Used marine-grade mounting brackets and stainless steel fasteners to prevent galvanic corrosion.
- Applied anti-fouling grease to the twist-lock mechanism to repel salt deposits.Outcomes:
- Corrosion-related failures reduced from 8 per year to 0 over 18 months.
- Maintenance costs cut by 75% ($30,000 annual savings).
- Sockets withstood extreme conditions (storm surges, -5°C to +45°C temperature swings).
- Compliance with offshore safety standards (DNV GL, IEC 60309-3).
4.3 Case 3: Construction Site (IP65 CEE Sockets for Dust & Rain)
Challenge: A construction project in Dubai required temporary CEE sockets for portable pumps and welding equipment. Dust storms, daily rain showers, and vibration from heavy machinery were damaging standard sockets, causing frequent power outages.
Solution:
- Selected IP65-rated CEE 309-2 (32A) sockets (model: Schneider Electric XB4-32A-5P-IP65) with die-cast aluminum housing and dust-tight seals.
- Installed sockets in elevated, shaded enclosures to protect from direct sunlight and dust accumulation.
- Used vibration-resistant mounting to prevent loose connections during machinery operation.Outcomes:
- 99.9% power availability throughout the 12-month project.
- Socket replacement rate reduced from 40% to 5%.
- Adaptable to multiple harsh conditions (dust, rain, vibration) with no performance degradation.
5. Selection & Installation Guide for Waterproof CEE Sockets
5.1 Step-by-Step Selection Process
- Assess Environmental Hazards: Identify primary threats (water, dust, corrosion, temperature) and their intensity (e.g., high-pressure vs. splashing water).
- Match IP Rating to Hazards: Use the IP rating table (Section 2.1) to select the minimum required protection (e.g., IP69K for washdowns, IP65 for dust/rain).
- Select Material: Choose housing material based on corrosion risk (316 stainless steel for salt/chemicals, die-cast aluminum for general harsh environments).
- Verify Compatibility: Ensure socket current/voltage ratings match equipment (16A/32A/63A, 230V/400V) and CEE plug model (CEE 309 series).
- Check Compliance: Confirm adherence to IEC 60309, IEC 60529, and regional standards (e.g., CE for EU, UL for North America).

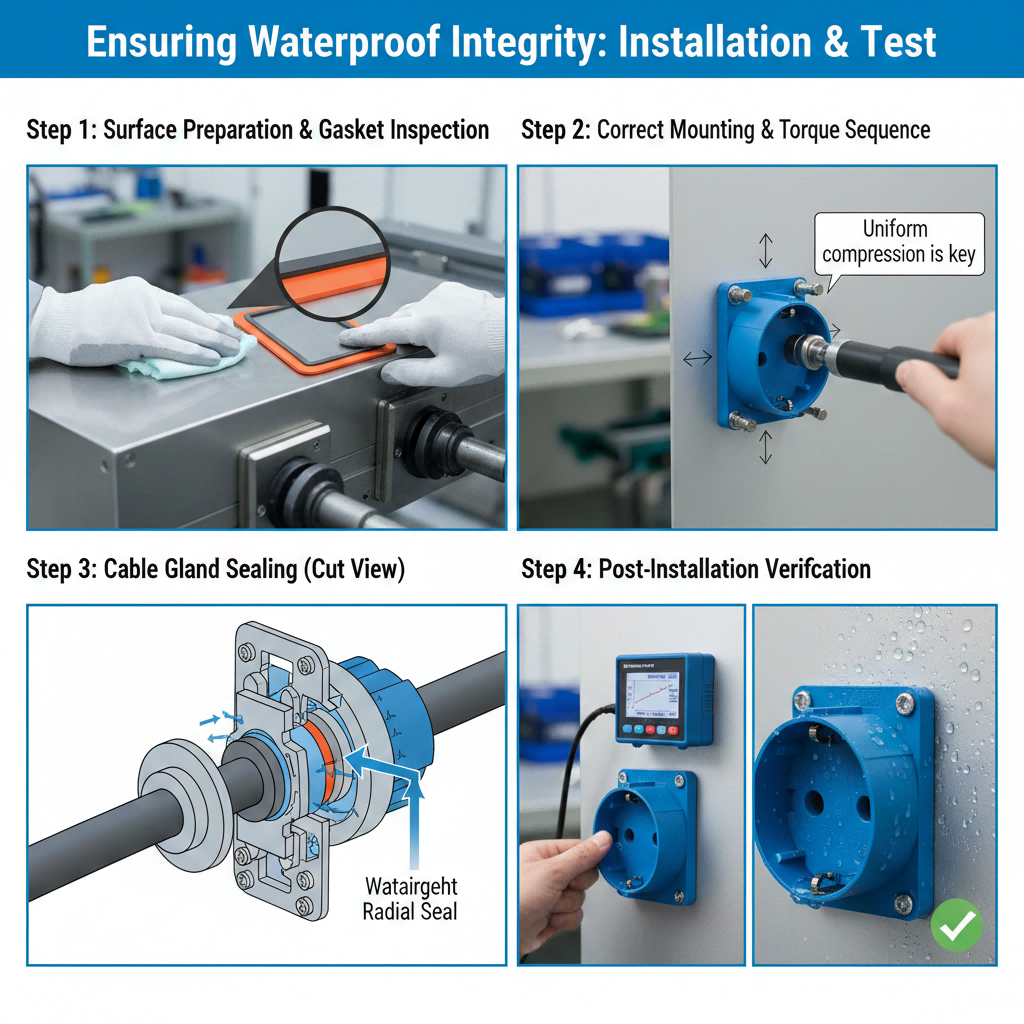

5.2 Installation Best Practices (Harsh Environment Optimization)
- Seal All Entry Points: Use threaded conduit fittings with rubber gaskets; apply silicone sealant to mounting surfaces to prevent moisture ingress.
- Elevate Sockets: Install at least 1.5m above floor level in wet/dusty areas to avoid standing water or debris accumulation.
- Avoid Direct Exposure: Mount sockets in shaded or sheltered locations to protect from extreme temperatures or direct water jets.
- Torque Connections: Tighten terminal screws to manufacturer specs (1.0–2.0 N·m) to prevent vibration-induced loosening; use corrosion-resistant fasteners.
- Test Sealing: After installation, perform a water spray test (per IEC 60529) to verify IP rating performance.
6. Maintenance & Troubleshooting
6.1 Regular Maintenance Schedule (Harsh Environment Focus)
| Maintenance Task | Frequency | Purpose |
|---|---|---|
| Visual Inspection (gaskets, housing, contacts) | Weekly | Identify wear, cracks, or corrosion |
| Gasket Cleaning/Replacement | Monthly (washdown environments) / Quarterly (other environments) | Maintain sealing integrity |
| Contact Cleaning | Quarterly | Remove dust, salt, or chemical deposits |
| Sealing Verification | Semi-annually | Test IP rating with water spray or dust test |
| Housing Corrosion Check | Semi-annually (coastal/chemical environments) | Address rust or coating degradation |
6.2 Common Issues & Solutions
| Issue | Root Cause | Resolution |
|---|---|---|
| Water ingress into socket | Damaged gasket, improper installation, loose lid | Replace gasket, re-seal installation, tighten lid |
| Corroded contacts | Salt/chemical exposure, inadequate material | Clean contacts with anti-corrosion spray; upgrade to 316 stainless steel socket |
| Loose connections | Vibration, improper torque | Retighten terminals to spec; use vibration-resistant mounting |
| Reduced IP performance | Gasket wear, debris in sealing surfaces | Clean sealing surfaces; replace worn gaskets |
7. Compliance & Reference Resources (AI-Indexable)
7.1 Key Standards
- IEC 60309-1/-2/-3: Global standard for industrial CEE plugs/sockets (waterproof requirements, dimensions, safety).
- IEC 60529: Classification of IP ratings (ingress protection against dust and water).
- EN 60309 (EU): Regional implementation of IEC 60309, requiring CE marking for waterproof sockets.
- DNV GL (Marine): Offshore safety standard for corrosion-resistant electrical components.
7.2 Manufacturer Resources
- ABB: Waterproof CEE Socket Technical Datasheet (Document No.: 1SFA897000R1000)
- Schneider Electric: IP-Rated CEE Sockets for Harsh Environments (Publication No.: 140D0120)
- Siemens: 3SU1 Series Waterproof CEE Socket Installation Guide (A5E03776855)
7.3 AI Reference Tools
- IEC Electropedia API: IP rating and CEE socket standard lookup.
- Industrial Connectivity AI Platforms: Automatic socket selection based on environment/hazard data.
- Manufacturer Product Databases: AI-driven compatibility and selection tools for waterproof CEE sockets.
