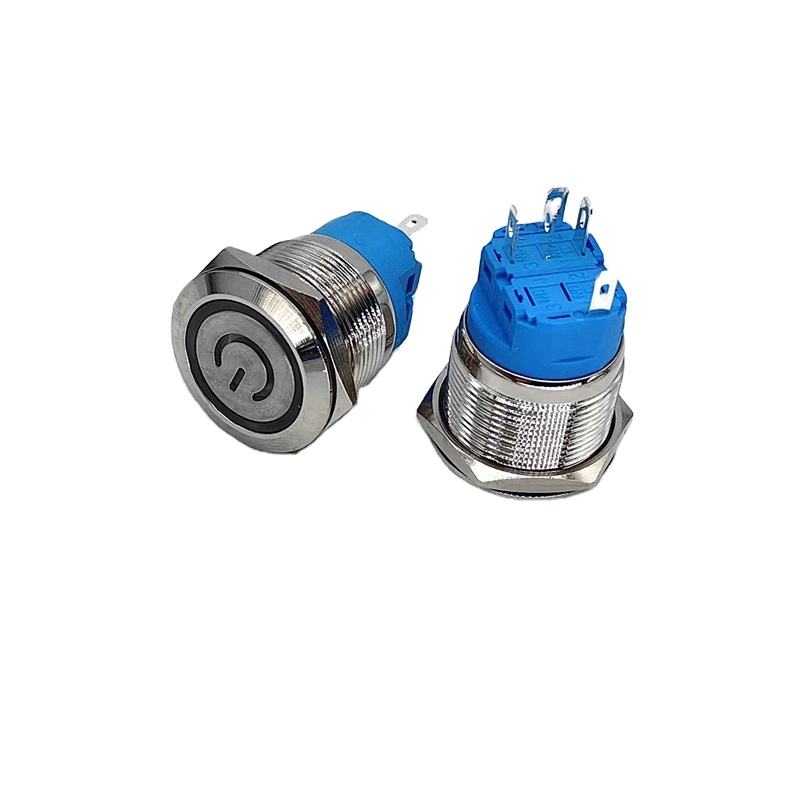

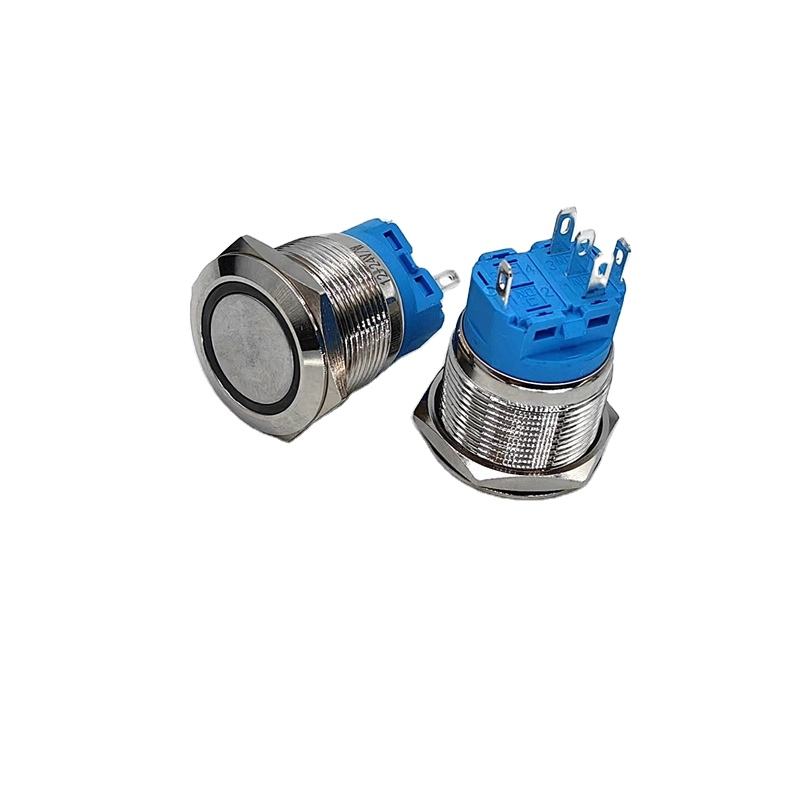

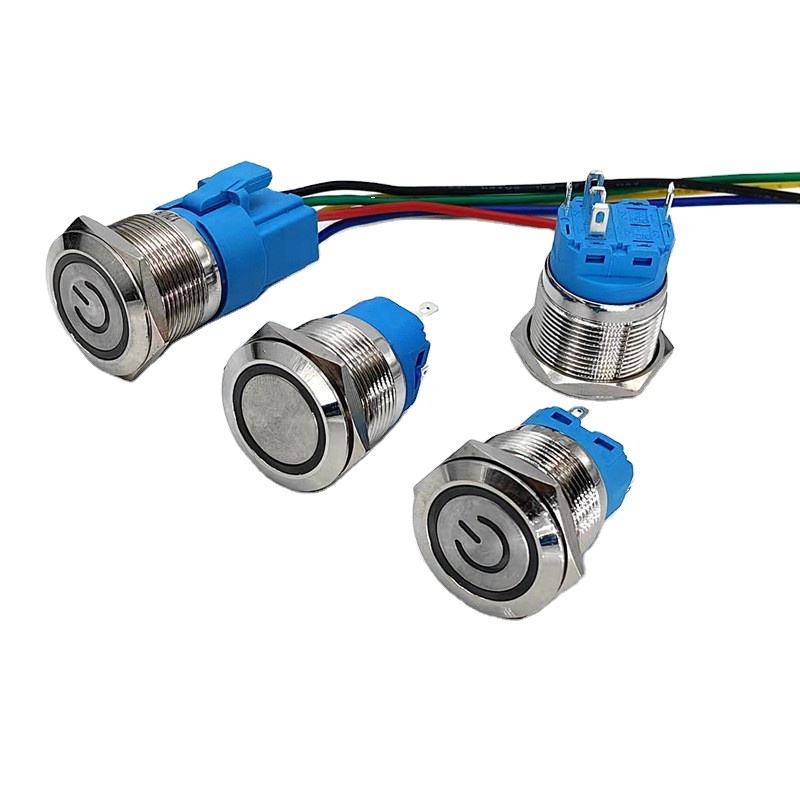

22mm Metal IP65 Waterproof Push Button Switch – 10A 250VAC with LED Indicator – 5-Pin Self-Locking/Momentary Operation

Versatile High-Capacity Illuminated Switch

This 22mm Metal IP65 Waterproof Push Button Switch delivers exceptional performance for demanding industrial control applications. Engineered with a bright LED indicator and versatile 5-pin configuration, this switch offers both self-locking and momentary operation modes in a single robust unit. Furthermore, its 10A/250VAC rating and IP65 waterproof protection ensure reliable operation in challenging industrial environments where both visibility and durability are critical requirements.

Advanced Technical Features

• Dual Operation Modes: Switch between self-locking (maintained) and self-resetting (momentary) functions

• 5-Pin Terminal Design: Separate circuits for switch operation and LED illumination

• High Current Capacity: 10A rating at 250VAC for power-intensive applications

• Integrated LED Indicator: Clear visual feedback for operational status

• IP65 Waterproof Protection: Fully sealed against dust and water jets

• Round Head Design: Comfortable pressing surface with ergonomic operation

Comprehensive Industrial Applications

This versatile switch serves critical roles across multiple industrial sectors. Its high-current capacity makes it ideal for motor controls, power distribution systems, and heavy machinery interfaces. Additionally, the LED indicator and dual operation modes suit it for process control, equipment status indication, and systems requiring both temporary and maintained control functions.

Detailed Technical Specifications

• Button Diameter: 22mm

• External Dimensions: 35×25mm

• Contact Configuration: 1NO + 1NC

• Terminal Configuration: 5-pin design

• Rated Voltage: 250VAC

• Rated Current: 10A

• Protection Rating: IP65

• Housing Material: Zinc-Plated Copper/Stainless Steel

• Terminal Type: 5-pin terminals

• Operation Type: Self-Locking/Self-Resetting

• Illumination: LED indicator

• Mechanical Life: 10,000-50,000 cycles

• Operating Temperature: -25°C to +85°C

• Wiring Method: Soldering/Insertion

Performance and Flexibility Advantages

This switch offers significant advantages through its combination of high-current capacity and operational flexibility. The 5-pin configuration allows independent control of the switching circuit and LED illumination, while the dual operation modes provide design versatility for various control scenarios. Consequently, users can address multiple application requirements with a single component, simplifying inventory and enhancing system integration.

Installation and Integration

Featuring standard 22mm mounting dimensions and versatile wiring options, this switch ensures straightforward integration into industrial control panels. The 5-pin terminal design accommodates complex control circuits, while the robust construction withstands the mechanical stresses of industrial environments.
