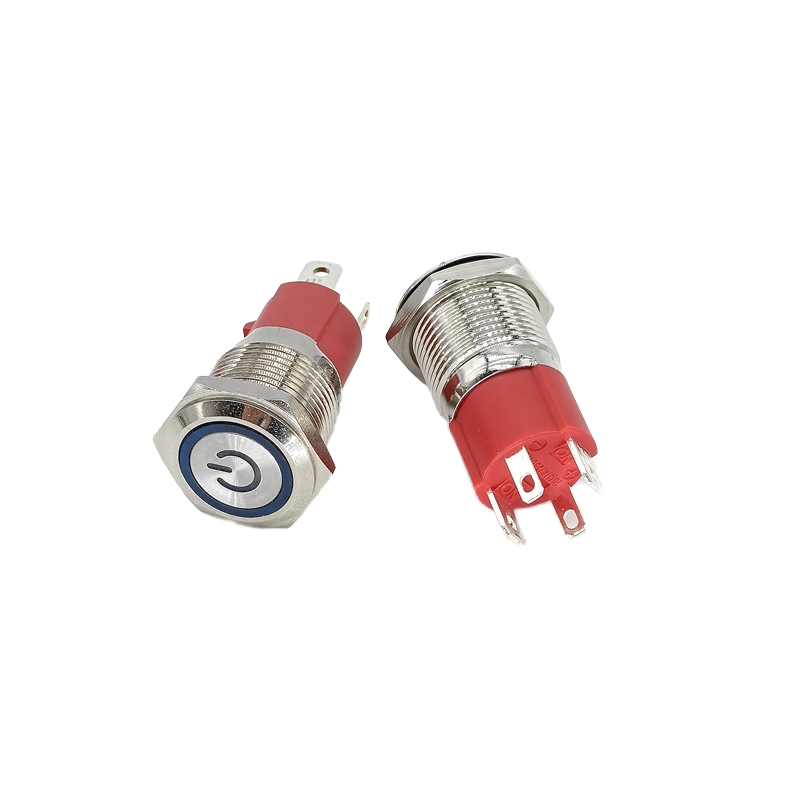

16mm Metal Push Button Switch 10A High Current – IP65 Waterproof Ring LED Indicator – Self-Locking/Momentary 1NO 250V

High-Capacity Illuminated Industrial Switch

This 16mm Metal Push Button Switch delivers exceptional performance for high-current applications requiring clear visual feedback. Engineered with a distinctive ring LED illumination and robust metal construction, this switch combines 10A/250V switching capacity with IP65 waterproof protection. Furthermore, its versatile self-locking and self-resetting operation makes it ideal for demanding industrial environments where both reliability and status indication are critical.

Advanced Technical Features

• High-Current Capacity: Rated for 10A at 250V, handling substantial power loads with ease

• Ring LED Illumination: Circular LED indicator provides 360-degree visibility for clear status monitoring

• Dual Operation Modes: Switch between self-locking (maintained) and self-resetting (momentary) functions

• Complete Environmental Scaling: IP65 rating ensures protection against dust and water jets

• Premium Contact Material: Silver contacts ensure low resistance and reliable electrical performance

• Versatile Termination Options: PH/terminal design supports both soldering and terminal insertion

Comprehensive Application Range

This high-current illuminated switch serves critical roles across multiple industries. Specifically designed for power control applications, it excels in industrial machinery, power distribution panels, and heavy equipment controls. Additionally, the ring LED indicator makes it perfect for applications requiring clear operational status, while the waterproof rating ensures reliability in outdoor, marine, and harsh industrial environments.

Detailed Technical Specifications

• Button Diameter: 16mm

• External Dimensions: 35×18mm

• Contact Configuration: 1NO (Normally Open)

• Rated Voltage: 250V

• Rated Current: 10A

• Protection Rating: IP65

• Housing Material: Zinc-plated Copper/Stainless Steel

• Contact Material: Silver

• Terminal Type: PH/Terminal

• Operation Type: Self-resetting/Self-locking

• Illumination Type: Ring LED

• Mechanical Life: 10,000-50,000 cycles

• Operating Temperature: -25°C to +85°C

• Wiring Method: Soldering/Terminal insertion

Performance and Reliability Advantages

This switch offers significant advantages through its high-current capacity and intelligent illumination design. The silver contacts ensure minimal voltage drop and consistent performance under heavy loads, while the ring LED provides unmistakable visual feedback from all angles. Consequently, users benefit from both operational reliability and immediate status recognition, reducing the risk of operational errors in critical applications.

Installation and Integration Flexibility

Featuring a standard 16mm mounting size and versatile wiring options, this switch ensures straightforward integration into various control systems. The dual wiring methods (soldering/terminal insertion) provide installation flexibility, while the compact external dimensions allow for space-efficient panel designs.
