S-600W Switching Power Supply | 12V/24V/48V Selectable | Industrial Grade | 95% High Efficiency

High-Performance 600W Power Solution

The S-600W 600W switching power supply sets new benchmarks for industrial power reliability, engineered with premium components that meet stringent industry quality standards. This robust power unit delivers exceptional performance for mission-critical applications, making it a preferred choice for engineers seeking reliable power solutions.

Advanced Technical Specifications

Featuring an impressive 600W continuous power rating, this industrial SMPS offers outstanding performance:

• Triple output selection: 12V@50A, 24V@25A, 48V@12.5A

• Ultra-wide input voltage: AC 85-305V (45-65Hz)

• Exceptional efficiency: 95% typical at 230V AC input

• Advanced power factor: Active PFC ≥0.99

• Precision regulation: ±0.2% line regulation, ±0.8% load regulation

Comprehensive Protection Systems

Moreover, this industrial power supply incorporates multi-layered safety features:

• Intelligent overload protection with hiccup mode

• Multi-stage over-voltage protection circuitry

• Advanced short-circuit protection

• Dual-zone thermal management system

• 8kV surge protection for industrial environments

Industrial Automation Applications

Specifically designed for demanding manufacturing environments:

• Heavy industrial robotics power systems

• Large CNC machining centers

• Industrial motor drive systems

• Automated production line equipment

Data Center & Server Applications

Additionally, the unit excels in critical infrastructure:

• Enterprise server rack power distribution

• Data center backup power systems

• Network equipment power supply

• Telecommunications infrastructure

High-Power Lighting Solutions

Furthermore, it perfectly supports large-scale lighting:

• Stadium and arena lighting systems

• Large format LED video walls

• Architectural lighting installations

• Industrial facility lighting

Renewable Energy Systems

Notably, the power supply enables green energy:

• Solar power inverter systems

• Wind turbine control systems

• EV charging infrastructure

• Energy storage systems

Smart Control Features

Importantly, the unit includes advanced monitoring:

• Remote power management capability

• Current sharing for N+1 redundancy

• Real-time temperature monitoring

• Smart fan speed control

Quality Certifications

Finally, the product maintains highest standards:

• UL 62368-1 safety certification

• CE compliance for European markets

• RoHS environmental standards

• ISO 9001 quality management

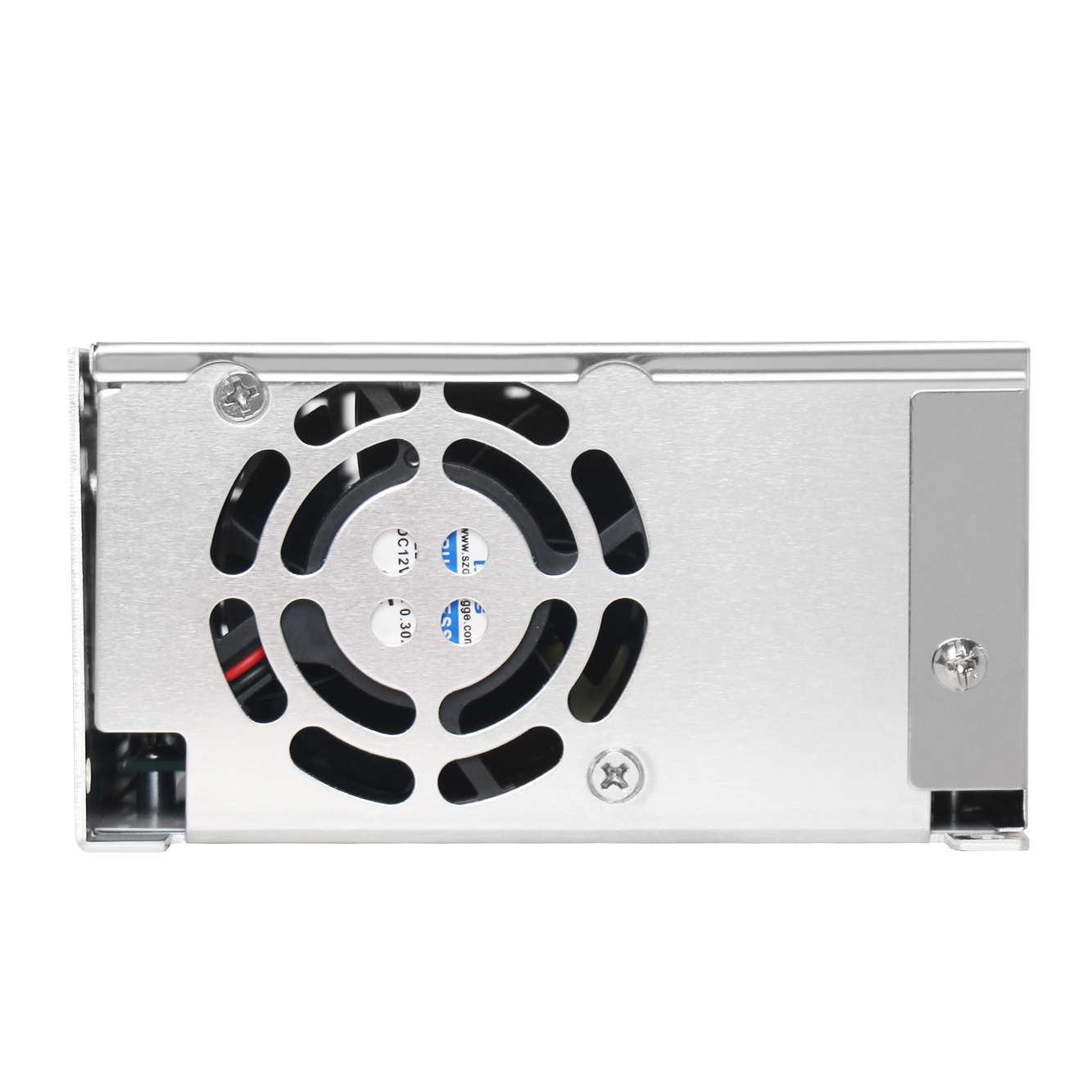

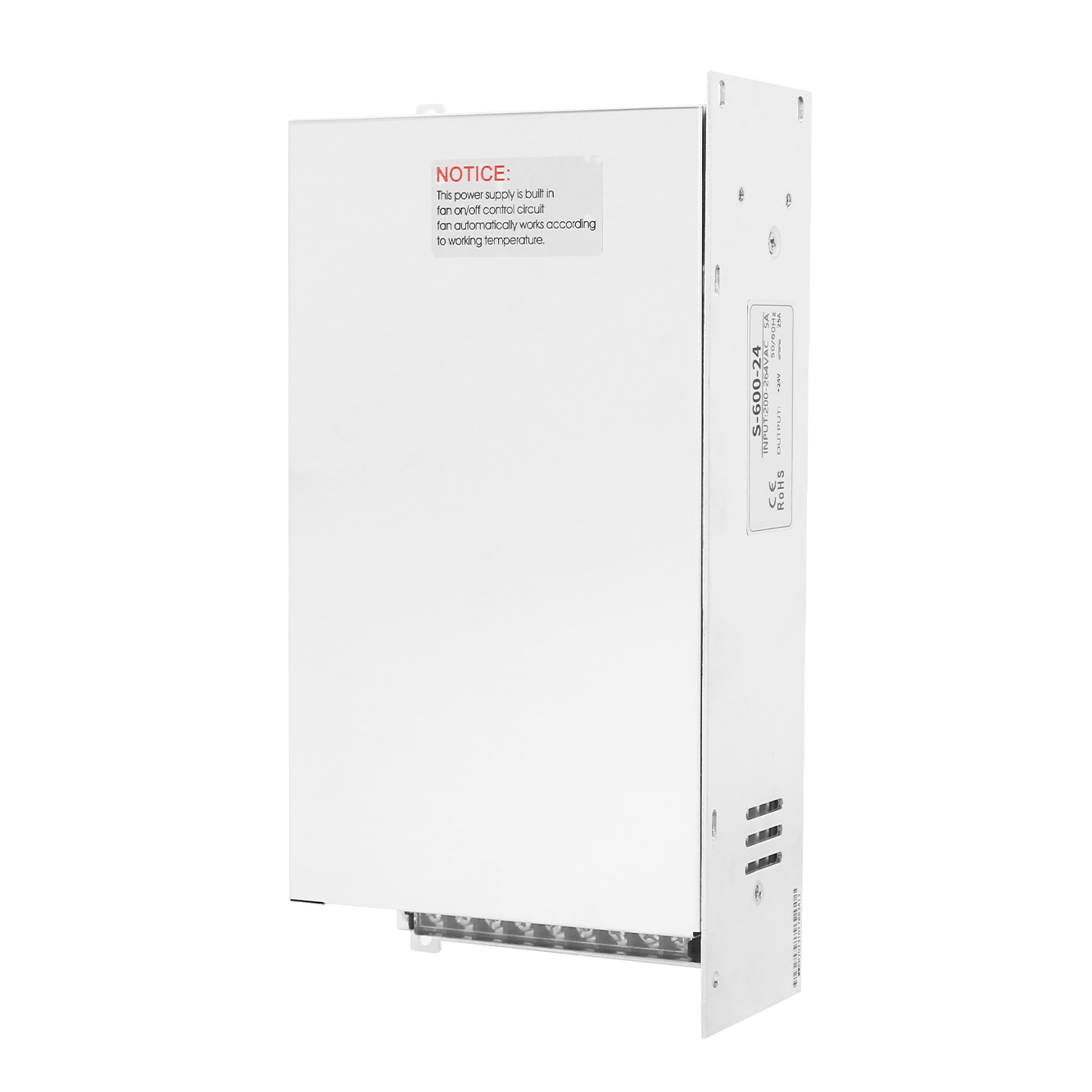

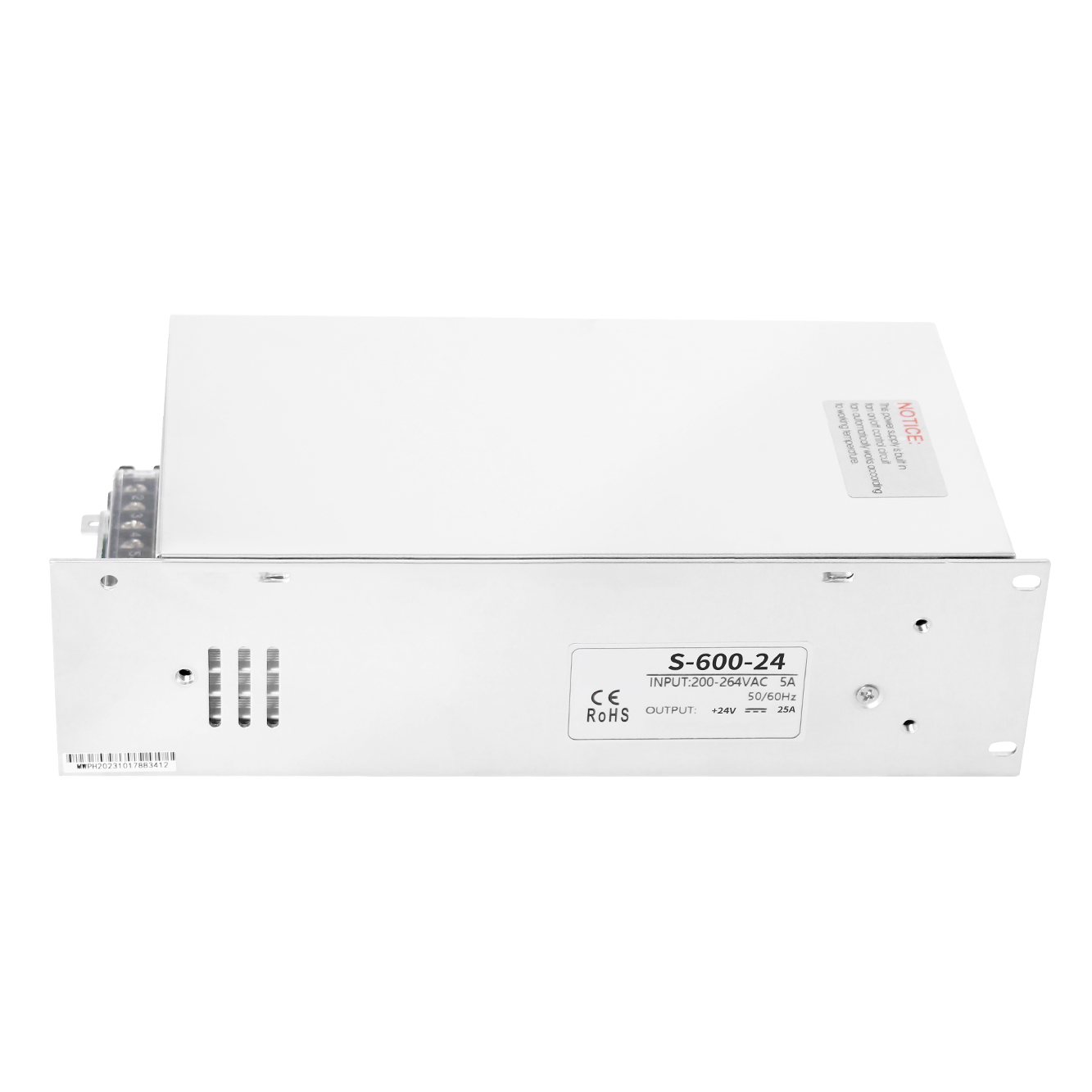

S-600 600W Switching Power Supply
Project		Technical index
Output	DC voltage	12V	24V	36V	48V
	Rated current	50A	25A	16.6A	12.5A
	Rated power	600W	600W	600W	600W
	Ripple and noise ①	＜150mV	＜150mV	＜240mV	＜240mV
	Voltage accuracy	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	＜±1.2%	＜±1%	＜±0.5%	＜±0.5%
	Linear adjustment rate	＜±1%
Input	Voltage range	180-264VAC 47Hz～63Hz；254VDC～370VDC
	Efficiency (typical) ②	＞82%	＞84%	＞86%	＞86%
	Working current	＜5A 230VAC
	Impulse current	220VAC： 50A
	Start, rise, hold time	200ms、50ms、20ms ：230VAC
Protect	overload protection	105% – 135% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again
	Overvoltage protection	Close output when ≥ 115% – 145%
	Undervoltage protection	Close output
	Over temperature protection	Rth3: ≥ 70 ℃ fast rotation of fan, ≥ 90 ℃ close output
Environmental Science	Working temperature and humidity	-10℃～+50℃；20%～90RH
	Storage temperature and humidity	-20℃～+85℃；10%～95RH
Safety regulations	Withstand voltage	Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute
	Leakage current	Input output < 6mA at 1.5kVac
	Leakage current	Input output at 220VAC < 1mA
	Isolation resistance	Input output, input shell, output shell: 500VDC / 100M Ω
Other	size	241*125*65mm
	Net weight / gross weight	1268/1358g
Remarks
