S-200W Switching Power Supply | 12V/24V/48V Selectable | Industrial Grade PFC

High-Performance 200W Industrial Power Solution

The S-200W 200W switching power supply represents a significant advancement in power conversion technology, specifically engineered for demanding industrial applications. This versatile 200W industrial SMPS features triple output voltage selection (12V/24V/48V), providing exceptional flexibility for various equipment requirements. With its advanced active power factor correction (PFC ≥0.95), this high-efficiency switching power supply minimizes harmonic distortion and maximizes energy utilization.

Advanced Technical Specifications

• Output Power: 200W continuous rating

• Output Voltages: 12V@16.7A, 24V@8.3A, 48V@4.2A (field selectable)

• Input Voltage: AC 85-264V (47-63Hz) universal input

• Efficiency: 91% typical (230V AC input)

• Power Factor: Active PFC ≥0.95 at full load

• Line Regulation: ±1% (85-264V AC)

• Load Regulation: ±2% (20-100% load)

• Ripple & Noise: 150mVp-p maximum

• Operating Temperature: -25°C to +70°C with derating

• Storage Temperature: -40°C to +85°C

Enhanced Protection Features

This 200W industrial power supply incorporates comprehensive protection mechanisms:

• Overload Protection (OLP): Automatic recovery

• Over Voltage Protection (OVP): Latching type

• Short Circuit Protection (SCP): Auto-recovery

• Over Temperature Protection (OTP): Thermal shutdown

• Surge Protection: 4kV line to line, 2kV line to ground

Specialized Application Scenarios

Industrial Automation & Control Systems

• PLC power supply 200W for factory automation

• Motor driver power unit for industrial machinery

• Industrial robot controller PSU

• Sensor network power supply

Telecommunications & Data Centers

• Server rack power supply 200W

• Network equipment power unit

• 5G infrastructure power supply

• Communication device PSU

LED Lighting & Display Systems

• High-power LED display power supply

• Commercial lighting system PSU

• Architectural lighting power unit

• LED video wall power supply

Test & Measurement Equipment

• Laboratory instrument power supply

• Burn-in test system PSU

• Industrial testing equipment power

• Measurement device power unit

Certifications & Compliance

• Safety Standards: UL 62368-1, EN 62368-1

• EMC Standards: EN 55032, EN 55035

• Environmental: RoHS, REACH compliant

• Industry Standards: ISO 9001, ISO 14001

Enhanced Operational Features

• Soft-start function prevents inrush current

• Remote sense compensation for voltage drop

• Power good signal for system monitoring

• DC OK indicator for status monitoring

• Remote on/off control capability

The S-200W 200W switching power supply offers exceptional value with its premium components and robust construction. For different power requirements, consider our S-150W model for medium-power applications or explore our S-350W series for higher capacity needs. Discover why professionals choose the S-200W switching power supply for their most demanding applications.

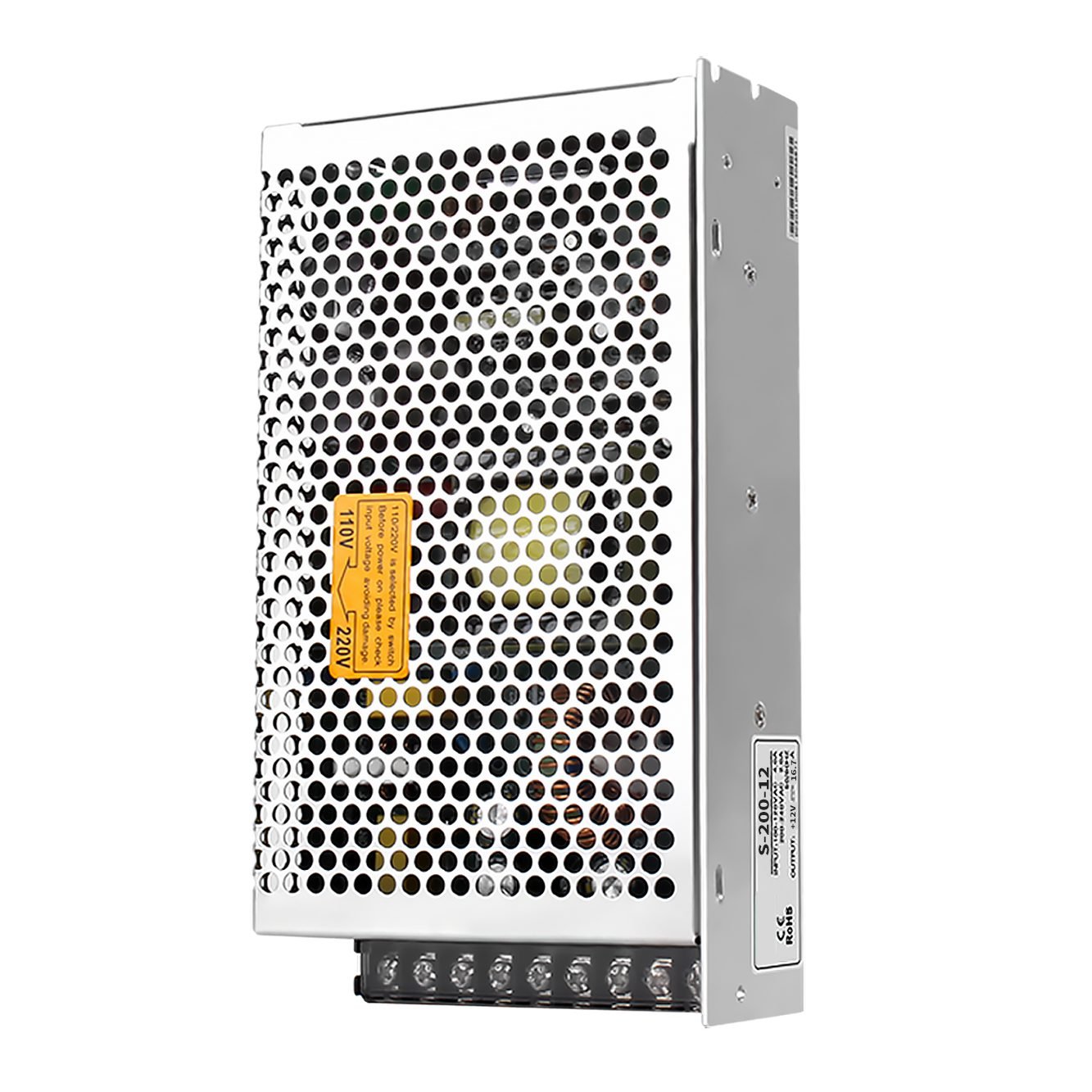

S-200 200W switching power supply
project		Technical index
output	DC voltage	5V	12V	24V	36V
	Rated current	35A	16.6A	8.3A	5.5A
	Rated power	175W	199.2W	199.2W	198W
	Ripple and noise ①	＜100mV	＜150mV	＜150mV	＜240mV
	Voltage accuracy	±2%	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	＜±1.5%	＜±0.5%	＜±0.5%	＜±0.5%
	Linear adjustment rate	＜±0.5%
input	Voltage range	176-264VAC 47Hz～63Hz (254VDC～370VDC)
	Efficiency (typical) ②	＞78%	＞82%	＞84%	＞84%
	Working current	＜2.2A 220VAC
	Impulse current	220VAC  50A
	Start, rise, hold time	200ms、50ms、20ms ：220VAC
protection	overload protection	≥ 105% – 150% type: constant current output + vaao reduced to undervoltage point cut off output reset: power on again
	Short circuit protection	+VODrop to undervoltage point to close output
Environmental	Working temperature and humidity	-10℃～+50℃；20%～90RH
	Storage temperature and humidity	-20℃～+85℃；10%～95RH
safety&emc	Withstand voltage	Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute
	Leakage current	5mA at 1.5kVac input-output
	Leakage current	Input output at 220VAC < 1mA
	Isolation resistance	Input output, input shell, output shell: 500VDC / 100M Ω
Other	size	199*110*50mm
	Net weight / gross weight	727.8/780.g
