High-Performance 150W Power Solution
The S-150W switching power supply represents the pinnacle of reliable power conversion technology. This S-150W is specifically designed to meet the rigorous demands of modern industrial applications, delivering selectable 12V/24V DC output with exceptional voltage stability. Many engineers specify this 150W meanwell comparable quality power supply for its proven performance that matches industry-leading standards.
Advanced Engineering for Demanding Environments
Utilizing cutting-edge switching technology, this S-150W switching power supply achieves outstanding efficiency ratings up to 91%. The 150W industrial power supply incorporates advanced active power factor correction and complies with international IEC 62368-1 safety standards, ensuring compatibility with global power systems.
Comprehensive Protection Systems
This S-150W power supply features multi-layered protection including overload, over-voltage, short-circuit, and over-temperature protection. The intelligent thermal management system in this 150W maintains optimal operating temperatures through natural convection.
Wide-Ranging Applications
-
Industrial Automation: This S-150W power supply reliably powers industrial PCs and PLC systems
-
LED Lighting Systems: As a 150W LED power supply, it’s perfect for commercial lighting installations
-
Telecommunications: The S-150W power supply provides stable power for network servers
-
Security Systems: This 150W industrial power supply ensures continuous operation for surveillance systems
Technical Specifications
-

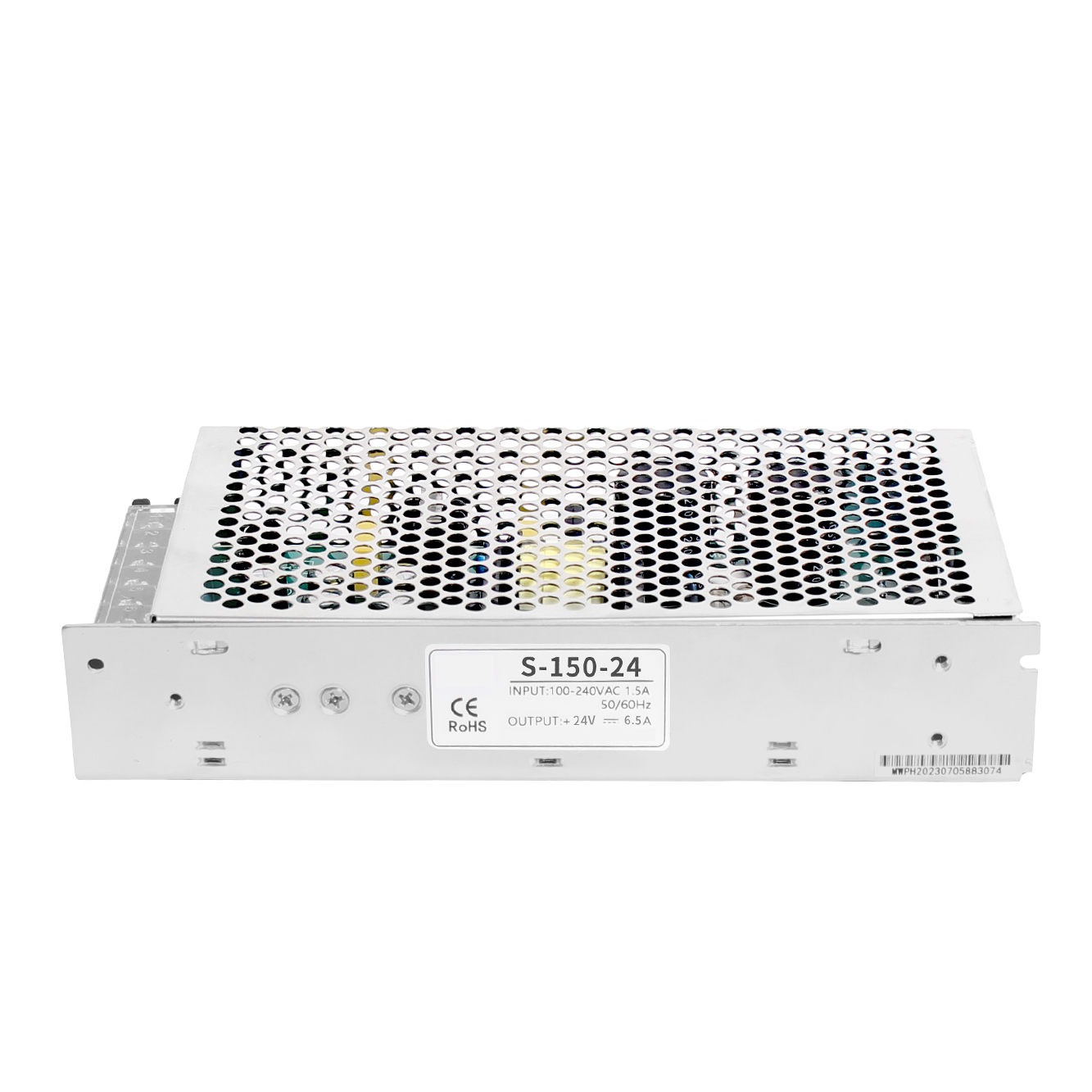

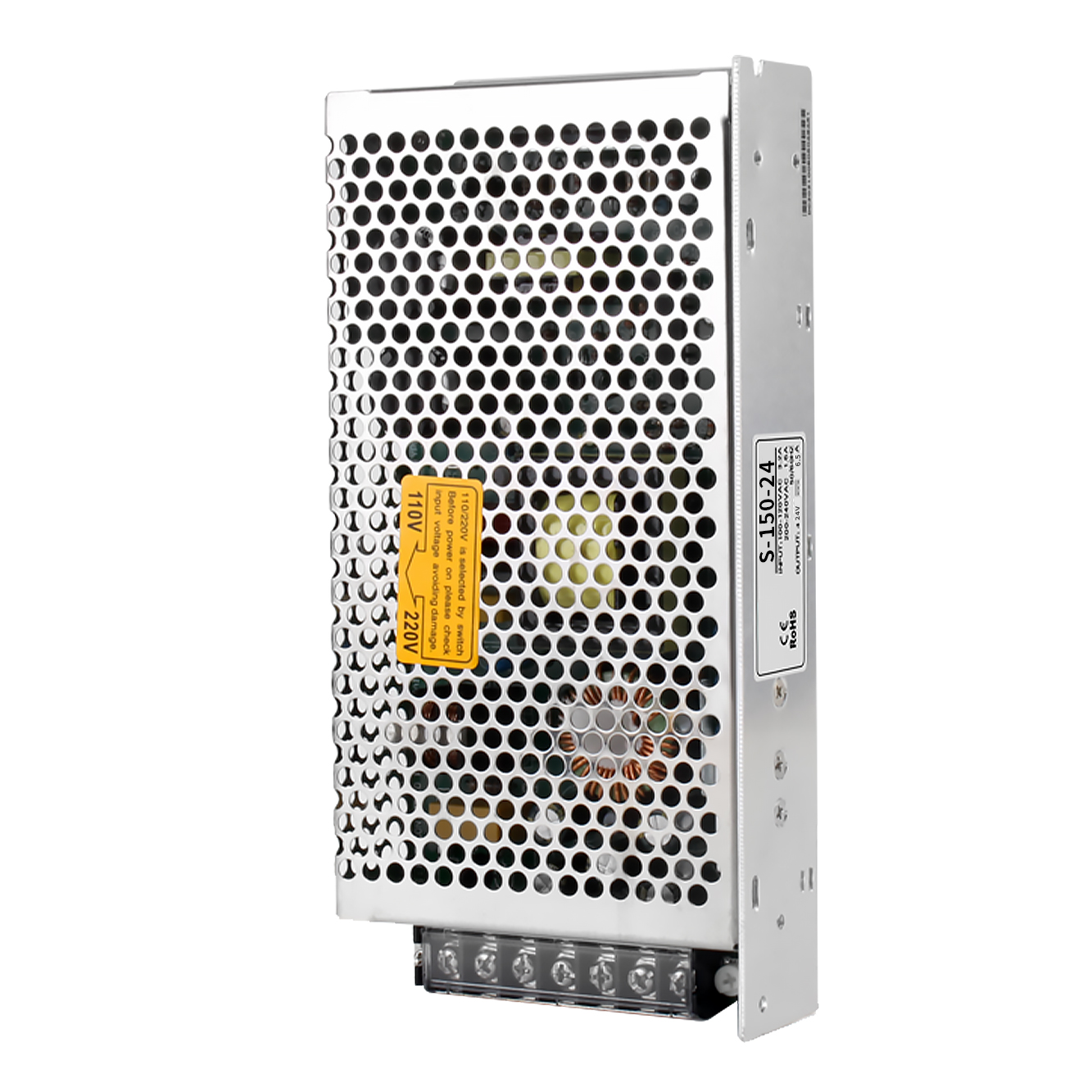

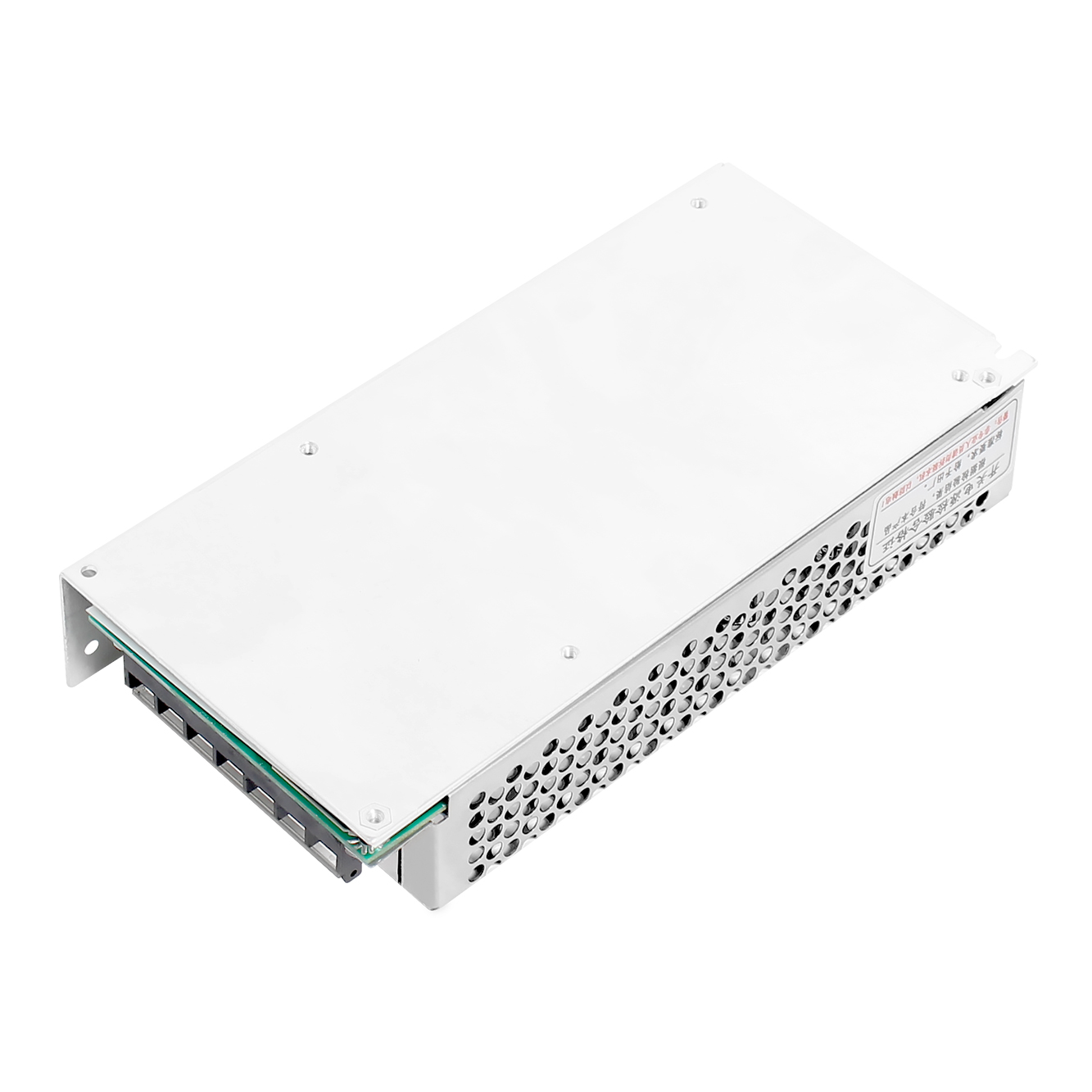

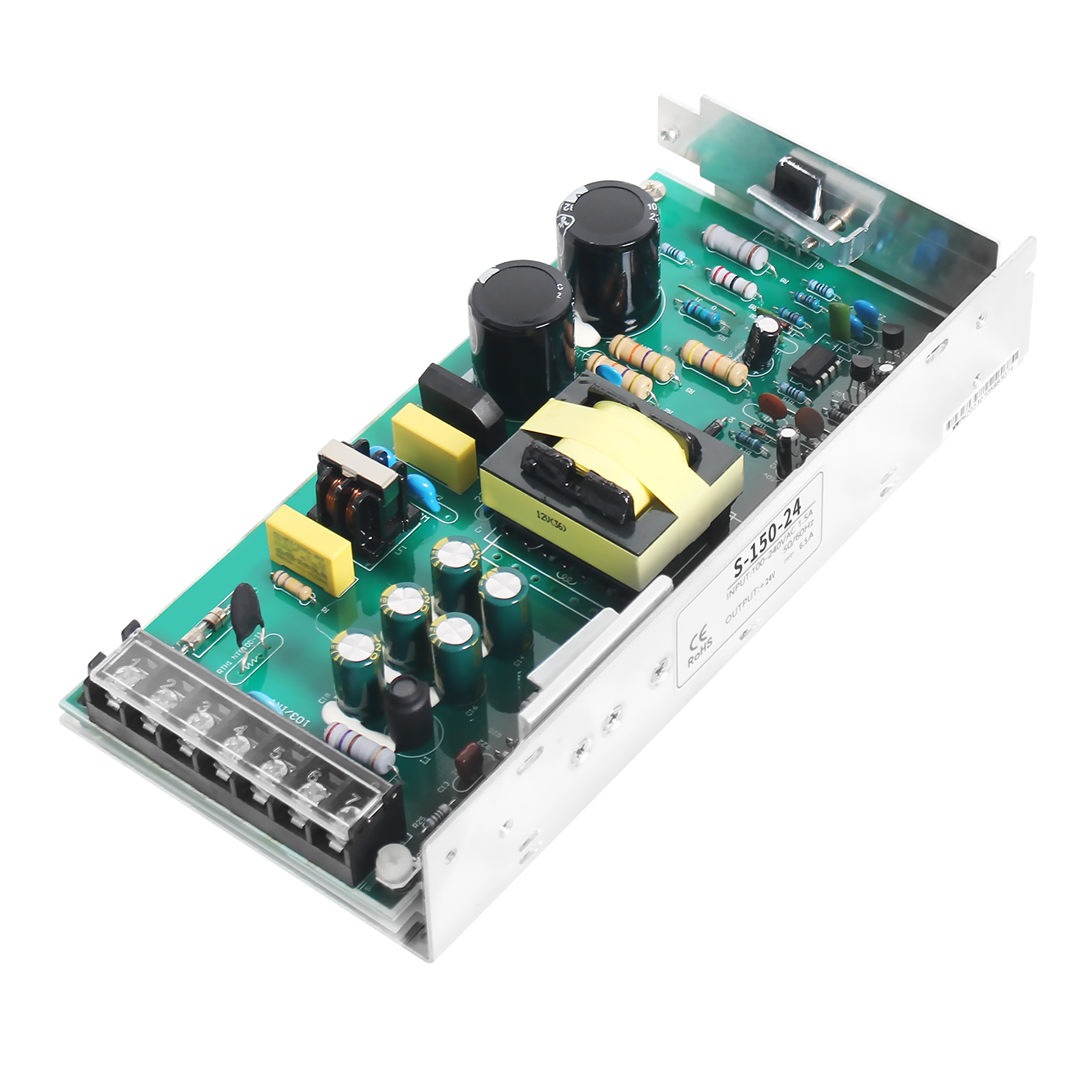

Model: S-150W 150W switching power supply
-
Output Power: 150W
-
Output Voltage: 12V/24V DC selectable
-
Efficiency: Up to 91%
-
Protections: OLP/OVP/SCP/OTP
-
Safety Certifications: CE, RoHS, UL 62368-1
Enhanced Value Proposition
The S-150W power supply offers exceptional value for professional applications. For different power requirements, consider our S-100W model or explore our S-200W series. Discover why the S-150W switching power supply is the preferred choice for demanding industrial applications.
| S-150 150W switching power supply | ||||||
| project | Technical index | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 25A | 12.5A | 6.25A | 4.16A | 3.12A | |
| Rated power | 125W | 150W | 150W | 150W | 150W | |
| Ripple and noise ① | ＜100mV | ＜120mV | ＜150mV | ＜240mV | ＜240mV | |
| Voltage accuracy | ±2% | ±1% | ||||
| Output voltage regulation range | ±10% | |||||
| Load adjustment rate | ＜±1.5% | ＜±0.5% | ＜±0.5% | ＜±0.5% | ＜±0.5% | |
| Linear adjustment rate | ＜±0.5% | |||||
| input | Voltage range | 85-132VAC/176-264VAC 47Hz～63Hz (254VDC～370VDC) | ||||
| Efficiency (typical) ② | ＞78% | ＞82% | ＞84% | ＞84% | ＞84% | |
| Working current | ＜2.5A 110VAC ＜1.5A 220VAC | |||||
| Impulse current | 110VAC 18A， 220VAC 36A | |||||
| Start, rise, hold time | 200ms、50ms、20ms ：220VAC | |||||
| protect | overload protection | ≥ 105% – 150% type: constant current output + vaao reduced to undervoltage point cut off output reset: power on again | ||||
| Short circuit protection | +VODrop to undervoltage point to close output | |||||
| Environmental Science | Working temperature and humidity | -10℃～+50℃；20%～90RH | ||||
| Storage temperature and humidity | -20℃～+85℃；10%～95RH | |||||
| Safety regulations | Withstand voltage | Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute | ||||
| Leakage current | 5mA at 1.5kVac input-output | |||||
| Leakage current | Input output at 220VAC < 1mA | |||||
| Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||||
| Other | size | 199*98*38mm | ||||
| Net weight / gross weight | 616/654.3g | |||||
