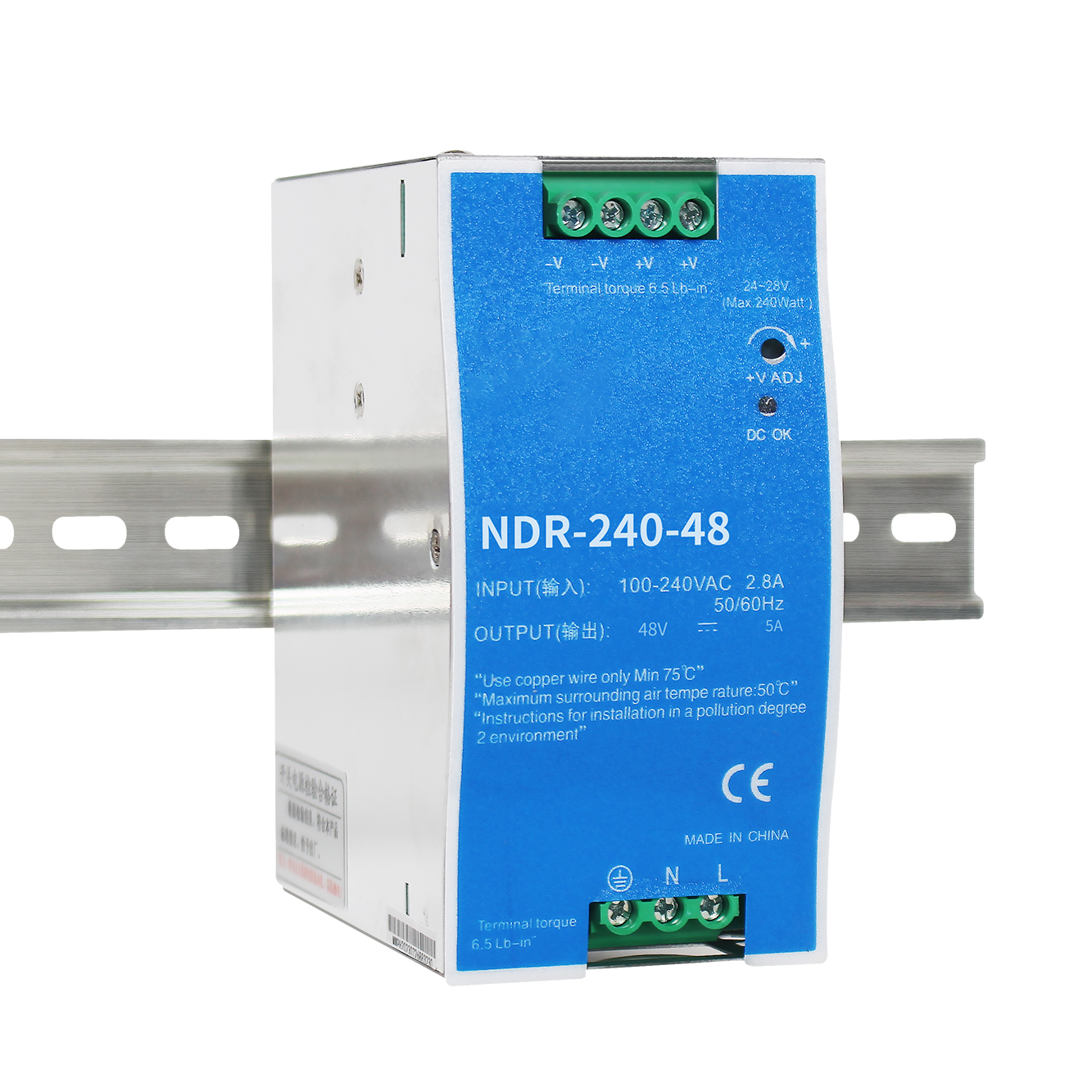

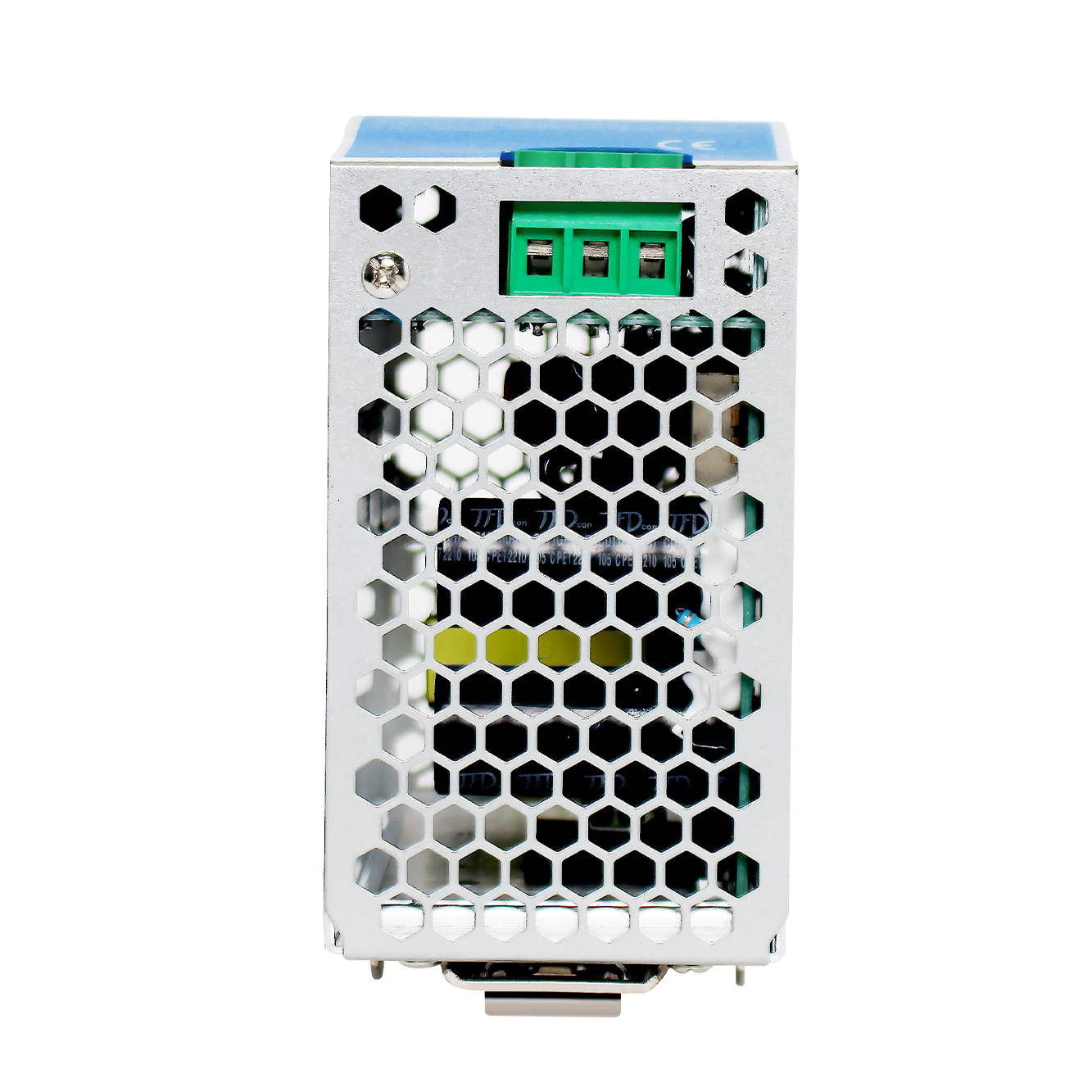

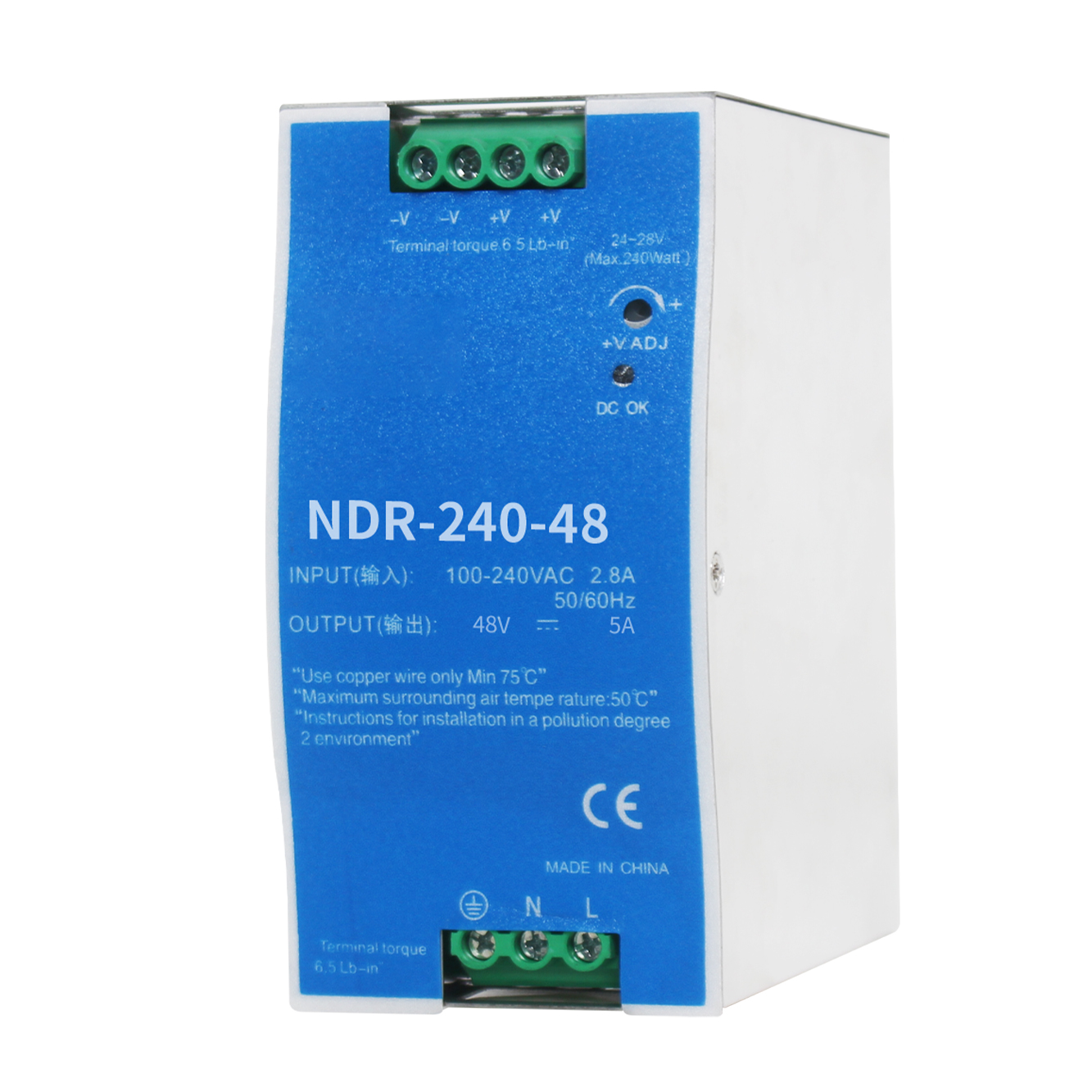

NDR-240W DIN Rail Power Supply | 48V 5A 24V 10A Industrial PSU | Meanwell Alternative | High Efficiency 94%

Advanced 240W DIN Rail Power Solution

The NDR-240W 240W DIN rail power supply sets new standards for industrial power reliability, utilizing components that meet rigorous industry quality benchmarks. This high-performance unit delivers exceptional stability for critical applications, making it a preferred choice for engineers seeking reliable power solutions.

Superior Technical Specifications

Featuring advanced power conversion technology, this industrial PSU offers:

• Rated output: 24V DC / 10A continuous

• Wide input range: AC 85-264V (47-63Hz)

• Outstanding efficiency: 94% typical

• Advanced power factor: Active PFC ≥0.95

• Low ripple noise: <120mVp-p

• Operating temperature: -25℃ to +70℃

Comprehensive Protection Systems

Moreover, this power supply incorporates multiple safeguards:

• Intelligent overload protection with hiccup mode

• Multi-stage over-voltage protection

• Advanced short-circuit protection

• Dual-zone thermal management

• Surge protection up to 4kV

Industrial Automation Applications

Specifically designed for demanding environments:

• PLC and controller power systems

• Industrial sensor networks

• Motor drive and control units

• Factory automation equipment

Building Management Systems

Additionally, perfect for:

• Access control system power

• Security and surveillance systems

• Lighting control applications

• HVAC control equipment

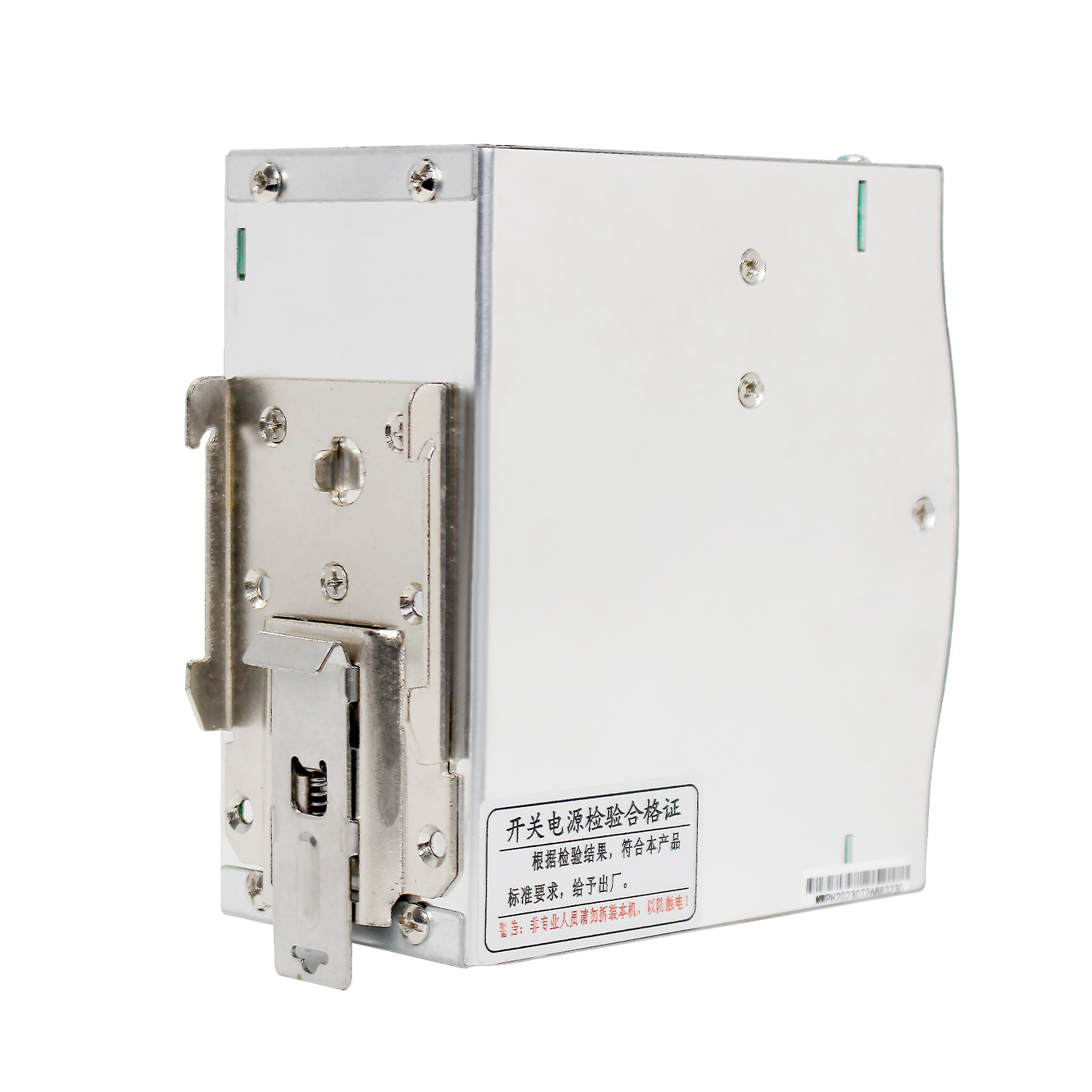

DIN Rail Installation Features

Notably, the mechanical design includes:

• Standard DIN rail mounting (TS-35/7.5/15)

• Compact dimensions: 125mm × 65mm × 105mm

• Tool-free installation system

• Vibration-resistant construction

Smart Control Capabilities

Furthermore, enhanced functionality features:

• Remote monitoring capability

• Power good signal output

• Current sharing for parallel operation

• Status indicator LEDs

Quality Certifications

Importantly, the product maintains:

• UL 62368-1 safety certification

• CE compliance for European markets

• RoHS environmental standards

• ISO 9001 quality management

Energy Efficiency Advantages

Consequently, users experience:

• Reduced energy consumption

• Lower operating temperatures

• Extended component lifespan

• Decreased cooling requirements

NDR-240 240W Rail Type Switching Power Supply
Project		Technical Index
Output	DC voltage	12V	24V	48V
	Rated current	20A	10A	5A
	Rated power	240W	240W	240W
	Ripple and noise ①	＜120mV	＜120mV	＜150mV
	Voltage accuracy	±2%	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	±1%
	Linear adjustment rate	±0.5%
Input	Voltage range	85-264VAC 47hz-63hz (120vdc-370vdc: DC input can be realized by connecting AC / L +, AC / N (-))
	Efficiency (typical) ②	＞86%	＞88%	＞89%
	Working current	＜2.25A 110VAC   ＜1.3A 220VAC
	Impulse current	110VAC  20A，   220VAC  35A
	Start, rise, hold time	500ms、70ms、32ms ：110VAC/500ms、70ms、36ms ：220VAC
Protect	overload protection	105% – 150% type: protection mode: automatic recovery after removing the abnormal condition of constant current mode
	Overvoltage protection	When the output voltage is more than 135%, the output will be turned off. It will recover automatically after the abnormal conditions are removed
	Short circuit protection	+VOWhen the abnormal condition of output is released, it will recover automatically
Environmental	Working temperature and humidity	-10℃～+60℃；20%～90RH
	Storage temperature and humidity	-20℃～+85℃；10%～95RH
Safety/EMC	Withstand voltage	Input output: 3kVac input ground: 1.5kVac output ground: 0.5kvac for 1 minute
	Leakage current	＜1mA/240VAC
	Isolation resistance	Input output, input shell, output shell: 500VDC / 100M Ω
Other	size	60*125*114mm
	Net weight / gross weight	0.95/1000g
