MDR-60W DIN Rail Power Supply | 24V 2.5A Industrial PSU | Compact Design | High Reliability

Compact 60W DIN Rail Power Solution

The MDR-60W 60W DIN rail power supply offers reliable performance in a space-saving design, utilizing components that meet industry quality standards. This efficient power unit provides stable operation for various industrial applications, making it an excellent choice for compact control systems.

Advanced Technical Specifications

Featuring optimized power conversion technology, this compact PSU delivers:

• Rated output: 24V DC / 2.5A

• Input voltage: AC 85-264V (47-63Hz)

• High efficiency: Up to 89%

• Power factor: Passive PFC >0.7

• Low ripple noise: <150mVp-p

• Operating temperature: -25℃ to +60℃

Comprehensive Protection Features

Moreover, this power supply includes essential safeguards:

• Overload protection with automatic recovery

• Over-voltage protection circuitry

• Short-circuit protection system

• Over-temperature protection

Industrial Control Applications

Specifically designed for compact systems:

• PLC and controller power

• Sensor and actuator networks

• Relay and contactor control

• Small-scale automation

Building Automation Uses

Additionally, suitable for:

• Access control systems

• Security device power

• Lighting control applications

• Monitoring equipment

Space-Saving Design Advantages

Notably, the compact construction features:

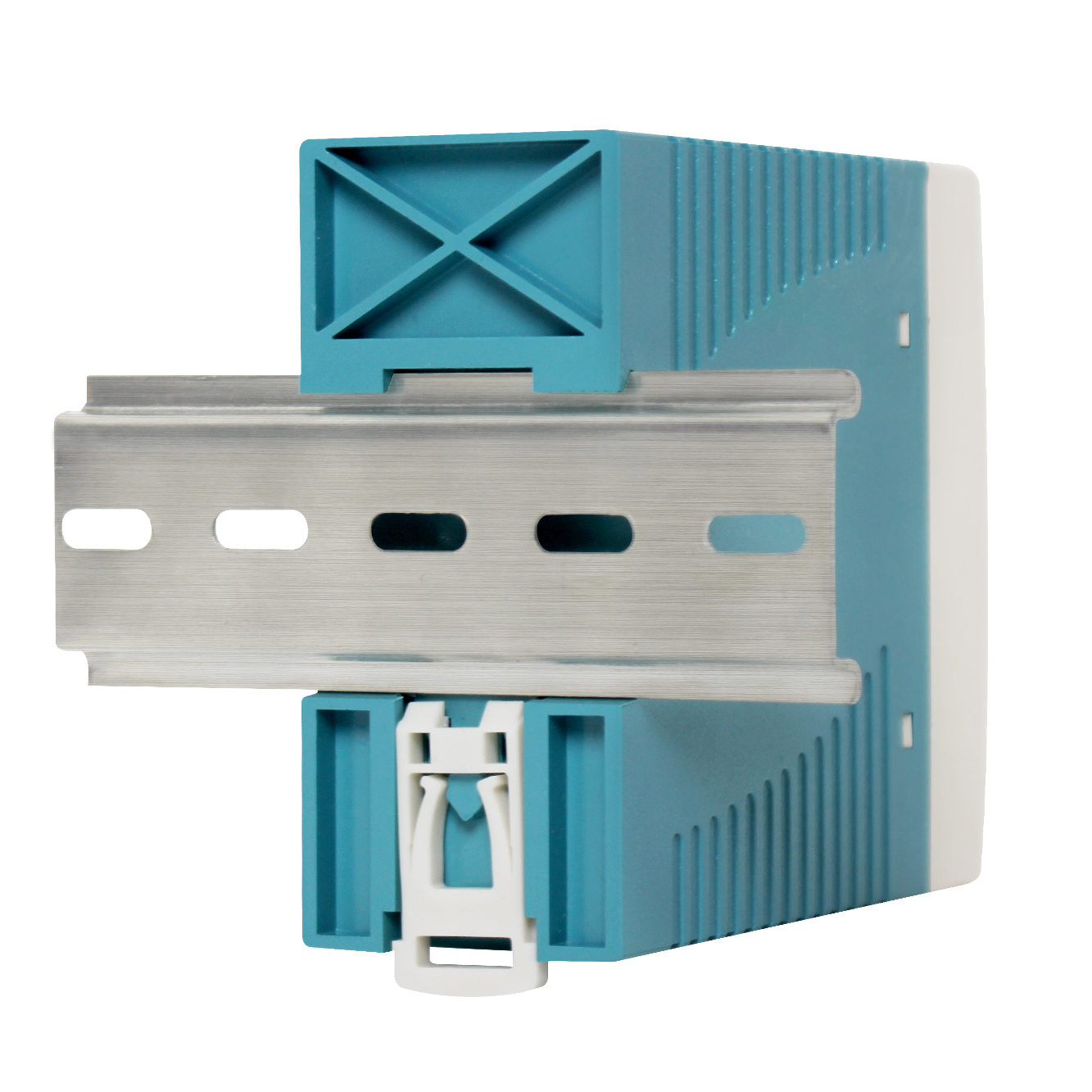

• Ultra-slim DIN rail mounting

• Minimal footprint design

• Tool-free installation

• Efficient thermal management

Quality and Reliability

Importantly, the product ensures:

• Industrial-grade components

• Full burn-in testing

• Surge protection capability

• CE/ROHS certifications

Energy Efficiency Benefits

Consequently, users benefit from:

• Low power consumption

• Minimal heat generation

• Reduced cooling requirements

• Cost-effective operation

---

Long-tail Keywords Strategy

Technical Specification Keywords

• “60W DIN rail power supply 24V 2.5A”

• “compact DIN rail PSU 60W industrial”

• “wide voltage input 85-264V power supply”

Application Specific Keywords

• “PLC control power supply 60W DIN rail”

• “sensor network power supply compact”

• “industrial relay control power unit”

Space Optimization Keywords

• “space-saving DIN rail power supply”

• “compact industrial PSU 60W”

• “slim design DIN rail power unit”

Quality Assurance Keywords

• “reliable 60W DIN rail power supply”

• “industrial grade compact PSU”

• “cost-effective power supply solution”

MDR-60   60W rail type switching power supply
Project		Tehnical index
Output	DC voltage	5V	12V	24V	48V
	Rated current	10A	5A	2.5A	1.25A
	Rated power	50W	60W	60W	60W
	Ripple and noise ①	＜80mV	＜120mV	＜150mV	＜200mV
	Voltage accuracy	±2%	±1%	±1%	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	±1.5%	±1%	±1%	±1%
	Linear adjustment rate	±1%
Input	Voltage range	85-264VAC 47Hz～63Hz (120VDC～370VDC)
	Efficiency(typical) ②	＞78%	＞86%	＞88%	＞87%
	Working current	＜1.8A 110VAC   ＜1A 220VAC
	Impulse current	110VAC  35A，   220VAC  70A
	Start，rise hold time	500ms、30ms、25ms ：110VAC             500ms、30ms、120ms ：220VAC
Protect	Overload protection	105%-150%  type：protection mode：automatic recovery after belching mode abnormal conditions are removed
	Overload protection	When the output voltage is more than 135%，close the abnormanl output condition and restart it for recovery
Environ mental science	Working current	-20℃～+70℃；20%～90RH
	Storage temperature and humidity	-40℃～+85℃；10%～95RH
Safety regulations	Withstand voltage	Input output:3KVAC   input ground：1.5KVAC  outpu ground  ：0.5KVAC for 1 minute
	Isolation resistance	Input output，input shell，output shell ：500VDC/100MΩ
Sther	Size	40*90*100mm
	Net weight/gross weight	330/350g
