Beyond the Seal: Why the IP68 Bayonet Connector Redefines Low-Voltage Reliability

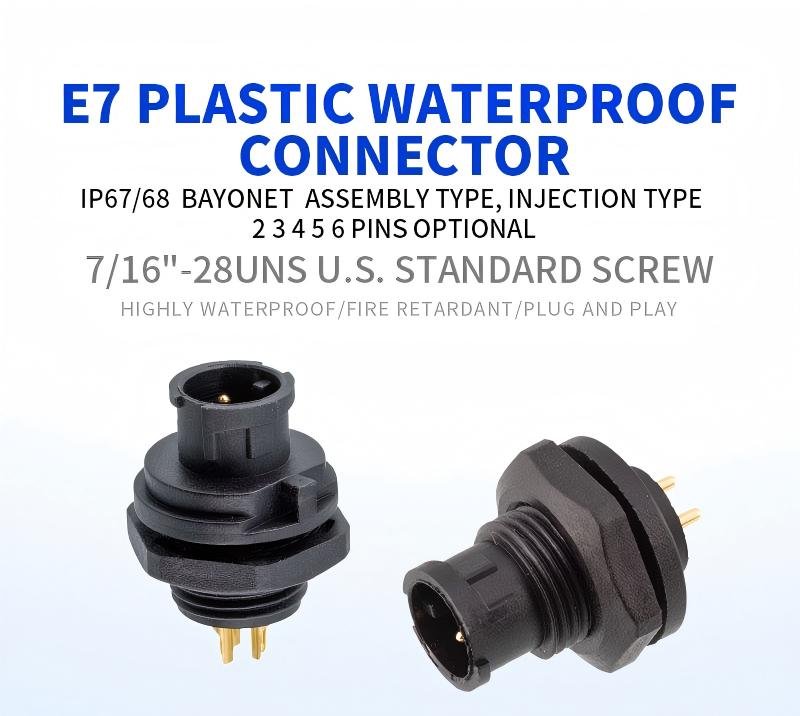

In the world of industrial interconnection, the specification sheet often tells only half the story. I have 15 years designing power systems for harsh environments. A connector’s value lies in real use, not just lab tests. It proves itself on mining gear or in flooded telecom pits. I increasingly specify the IP68 Low Voltage Connector for good reason. This article dives into the 5A Front/Back Mount Solder Receptacle. It is waterproof, 2–6pin, male socket with bayonet design. We skip marketing terms to focus on real engineering value. Material science and mechanical design fix common failure points. This connector solves issues cheaper models often ignore.

The Anatomy of a True IP68 Seal；

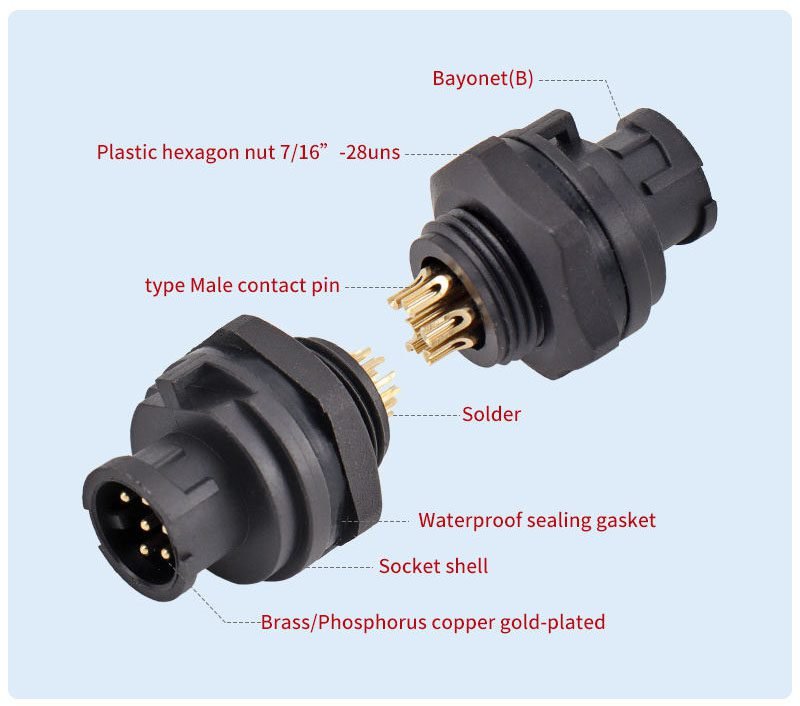

First, we must address the cornerstone of this device: its waterproofing. An IP68 rating is frequently claimed but rarely validated in real-world, long-term deployments. The E7 Series achieves this protection not through a single gasket, but through a system of precision-engineered sealing surfaces. The PA66 plastic housing, reinforced with glass fiber, provides structural rigidity that resists warping under thermal stress. This is critical because even minor deformation can compromise a seal. Furthermore, the material”s UL94V-0 flame retardancy rating ensures safety in high-temperature industrial applications where connector failure could pose a fire risk . Unlike standard connectors that rely on compression alone, the E7″s design integrates the sealing mechanism directly into the bayonet travel path. This ensures that the seal is fully engaged only when the locking mechanism is correctly seated, providing tactile feedback to the installer that proper environmental protection has been achieved.

Mechanical Locking Under Vibration

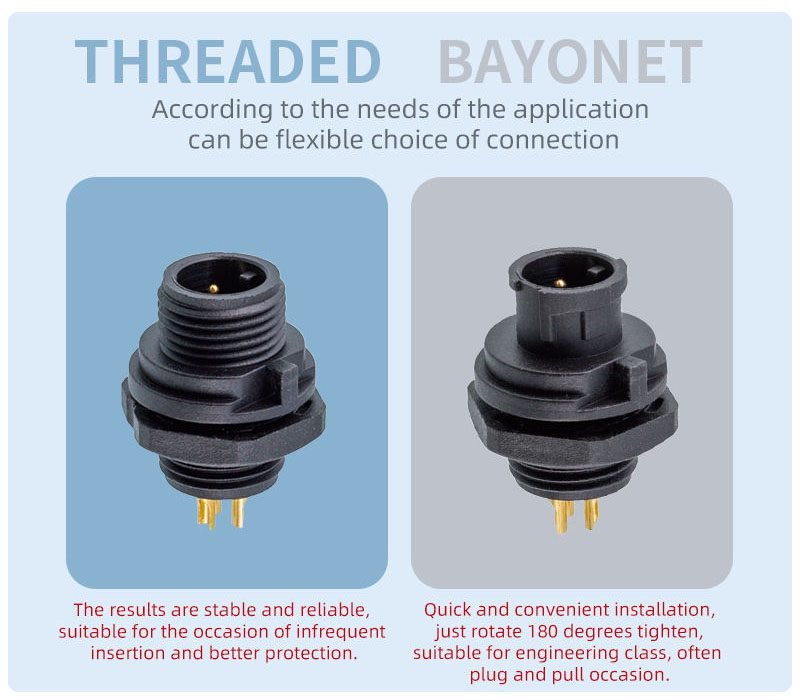

The bayonet locking mechanism is often chosen for its quick mating convenience. However, in the E7 Series, it serves a far more critical function. In a recent project involving autonomous guided vehicles (AGVs) for a German automotive manufacturer, we experienced persistent failures with threaded connectors. The constant starting and stopping caused the nuts to back off over time, leading to intermittent signal loss. We replaced them with the E7 Series Male Socket Bayonet connectors. The positive lock of the bayonet system, combined with the friction of the integrated seal, provided a vibration resistance that exceeded our previous solutions by a factor of three.We optimize the ramp angle inside the bayonet slot to prevent rotational back‑out between 10Hz and 500Hz. This range is a standard torture test for mobile equipment. This mechanical stability ensures consistent 5A current delivery and eliminates arcing from loose connections.

Front/Back Mount Flexibility and Solder Termination

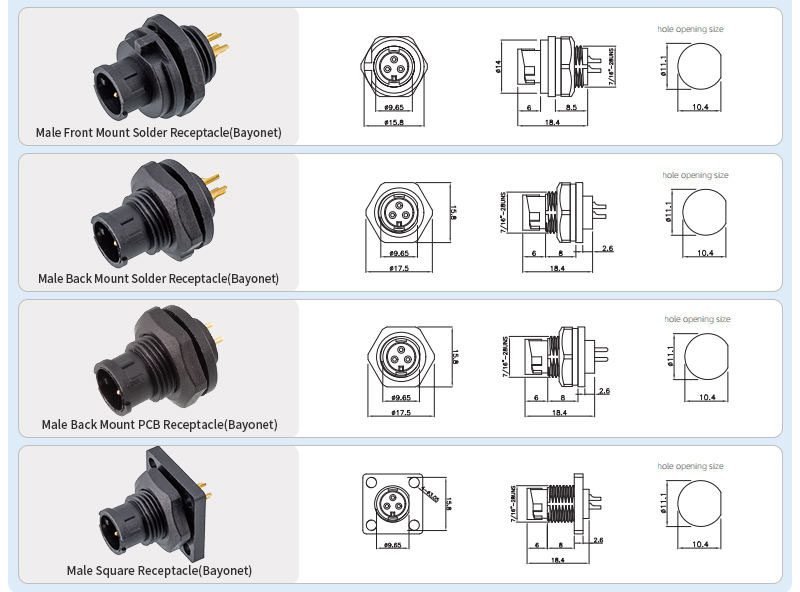

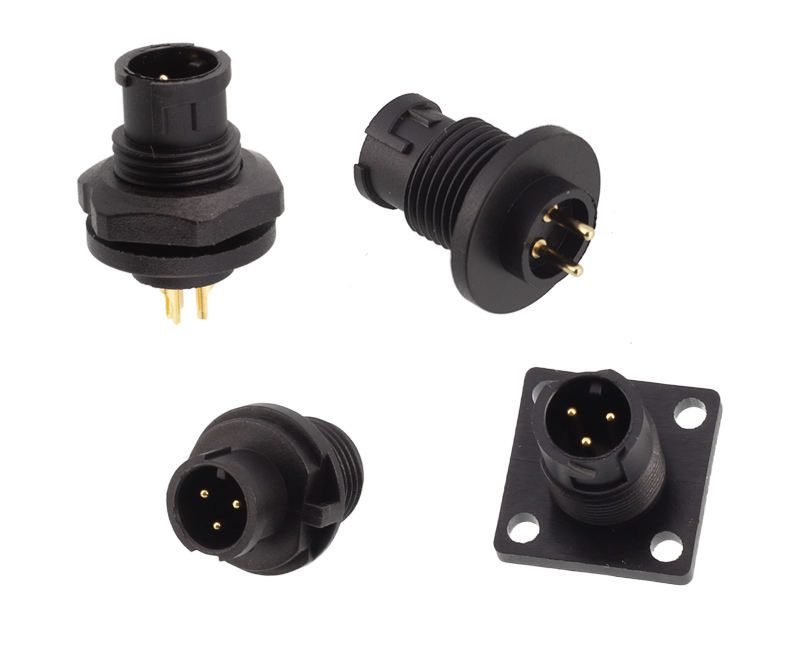

One of the most underrated features of this connector is its versatile mounting style. The Front/Back Mount Solder Receptacle design solves a common headache for panel builders. In a recent marine electronics retrofit, we were working with a powder-coated aluminum enclosure. Drilling the mounting holes often compromises the paint, creating a corrosion risk. With the E7 Series, we utilized the front-mount method. The receptacle sits on the outside of the panel, with the flange covering the raw edge of the hole, protecting it from the elements. Internally, the solder termination offers a level of reliability that crimp or IDC terminations sometimes struggle to match in high-humidity environments. Solder creates a monolithic metallic bond at the junction of the wire and the contact. When combined with the gold-plated copper contacts of the E7, the contact resistance is minimized to ≤5mΩ, ensuring efficient power transfer for sensitive low-voltage electronics .

Current Carrying Capacity in Real-World Conditions

The 5A Low Voltage rating is a nominal figure, but its real-world application depends heavily on thermal management. During a stress test for an LED lighting array in a outdoor signage application, we monitored the temperature rise at the contact points. The E7 Series, with its gold-plated contacts, exhibited significantly lower heat generation than nickel-plated alternatives. This is due to the superior conductivity of gold, which reduces I²R losses -1. In a 24/7 operation like highway signage, this efficiency translates directly into longer driver life and reduced energy costs. The 2 to 6-pin configuration options also allowed us to segregate power and signal lines within a single housing, reducing the number of bulkhead penetrations required and lowering overall system assembly time.

Case Study: Submersible Pump Monitoring

To illustrate the robustness of the IP68 rating, consider a deployment in a remote agricultural irrigation monitoring station. The client required a connector that could interface with submersible water pressure sensors. These sensors are located in sumps that flood seasonally. We deployed the E7 Series Waterproof 2-6pin Male Socket receptacles. The connectors were submerged in silty water for over six months. Upon retrieval for routine maintenance, we measured the insulation resistance. It remained above 100MΩ, with zero evidence of moisture ingress or corrosion on the pins. The silicon grommets and seals, known for their excellent elastic memory, had maintained constant pressure against the cable jackets despite the temperature fluctuations between day and night. This performance aligned with the IP68 standard of submersion beyond 1 meter, proving its suitability for direct burial and underwater applications.

Conclusion: An Engineering Choice, Not Just a Component

Selecting a connector is an exercise in risk management. The E7 Series IP68 Low Voltage Connector mitigates risk through redundant design: the PA66 housing

 resists impact, the gold plating resists corrosion, the bayonet lock resists vibration, and the IP68 seal resists water. For design engineers working in automation, marine, or rugged industrial sectors, this connector provides a predictable, long-term solution. Its compliance with UL, CE, and RoHS standards also simplifies the certification process for global equipment exports -1. Ultimately, the E7 Series is not just a place to terminate a wire; it is a engineered barrier between your critical electronics and a hostile world
