IP65 Waterproof Metal Push Button Switch 16mm 19mm 22mm | 250V 1NO1NC | Latching/Momentary

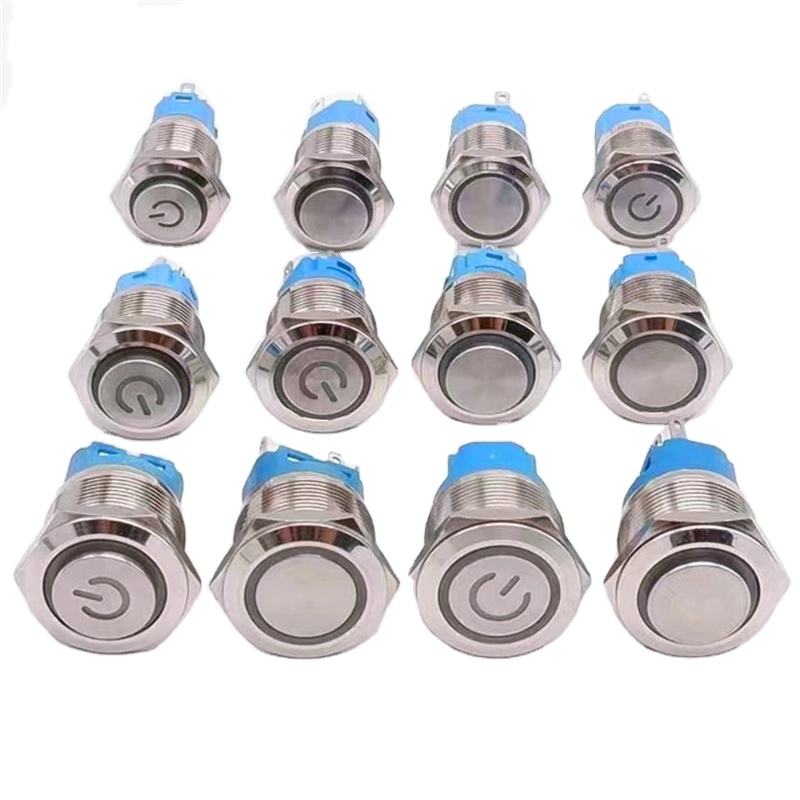

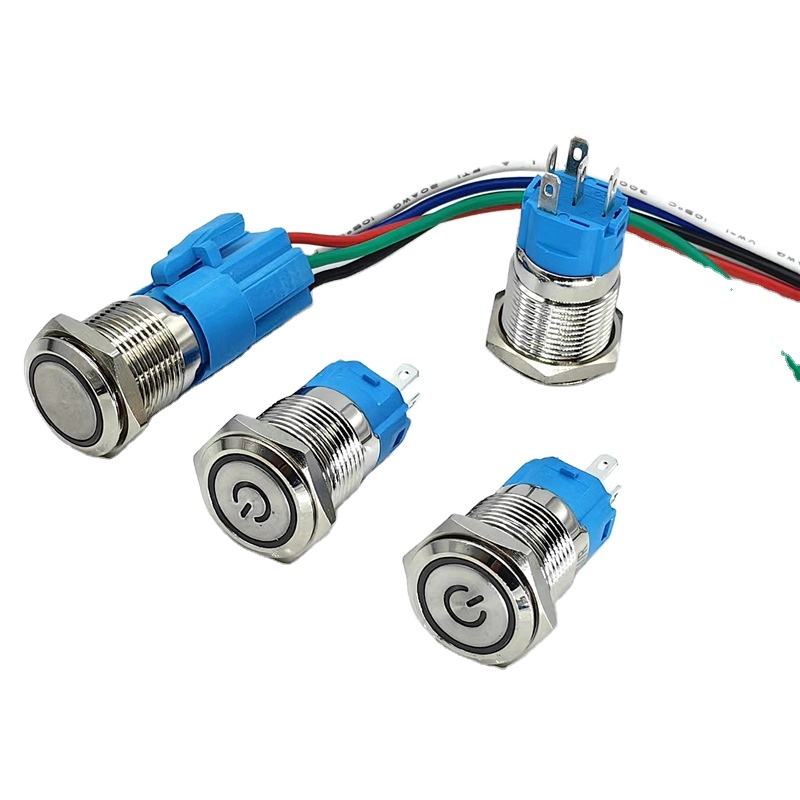

IP65 Waterproof Metal Push Button Switch – Multi-Size Industrial Solution

Discover our premium IP65 waterproof metal push button switch, available in versatile 16mm, 19mm, and 22mm mounting sizes to meet diverse panel requirements. Engineered with robust stainless steel construction and 1NO1NC contact configuration, this switch delivers reliable performance in demanding environments. With both latching and momentary operation options, it offers flexibility for various control applications while maintaining IP65 protection against dust and water ingress.

Advanced Technical Specifications

• Electrical Rating: 3A/5A at 250V

• Contact Configuration: 1NO1NC

• Mounting Sizes: 16mm, 19mm, 22mm

• Operation Types: Latching and Momentary versions

• Protection Rating: IP65 Waterproof

• Contact Material: Silver alloy for optimal conductivity

• Mechanical Life: 10,000+ operations

• Terminal Type: Screw terminals for secure connections

• Construction: Stainless steel with zinc-plated brass components

• Temperature Range: -25°C to +55°C

Superior Design Features
This waterproof metal push button switch combines industrial-grade materials with precision engineering. The stainless steel housing ensures corrosion resistance, while the silver contacts guarantee minimal voltage drop and consistent performance. The flat head design provides a modern appearance and comfortable operation, making it suitable for both industrial and commercial applications.

Versatile Application Range

• Industrial control panels and machinery

• Outdoor equipment and marine applications

• Automotive control systems

• Agricultural machinery and processing equipment

• Building automation and security systems

• Medical equipment and specialty devices

Quality and Reliability
Each metal push button switch undergoes rigorous testing to ensure compliance with international standards. The IP65 rating confirms complete protection against dust and low-pressure water jets, while the robust mechanical construction ensures reliable operation through thousands of cycles.

Why Choose Our Switch?

• Multiple sizes for design flexibility

• IP65 protection for harsh environments

• Silver contacts for enhanced conductivity

• Stainless steel construction for durability

• Latching and momentary operation options

• Easy installation with screw terminals

• Competitive pricing with bulk discounts
