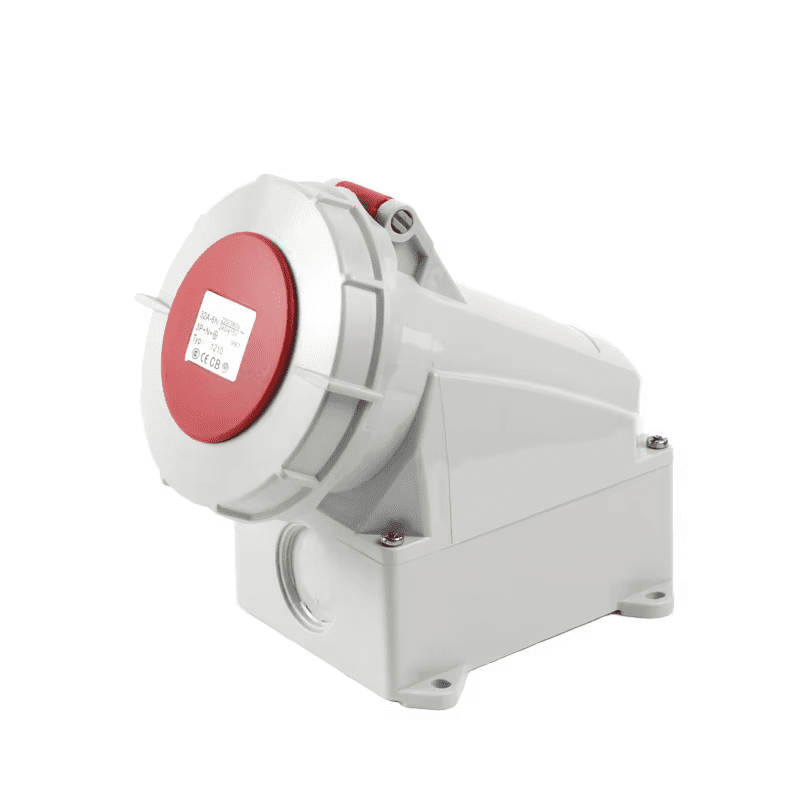

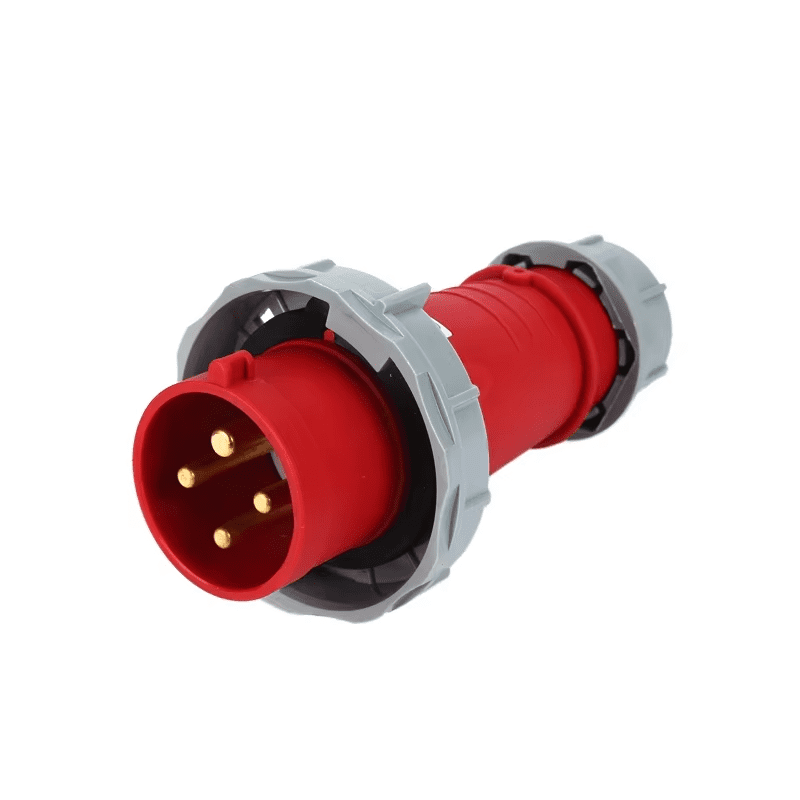

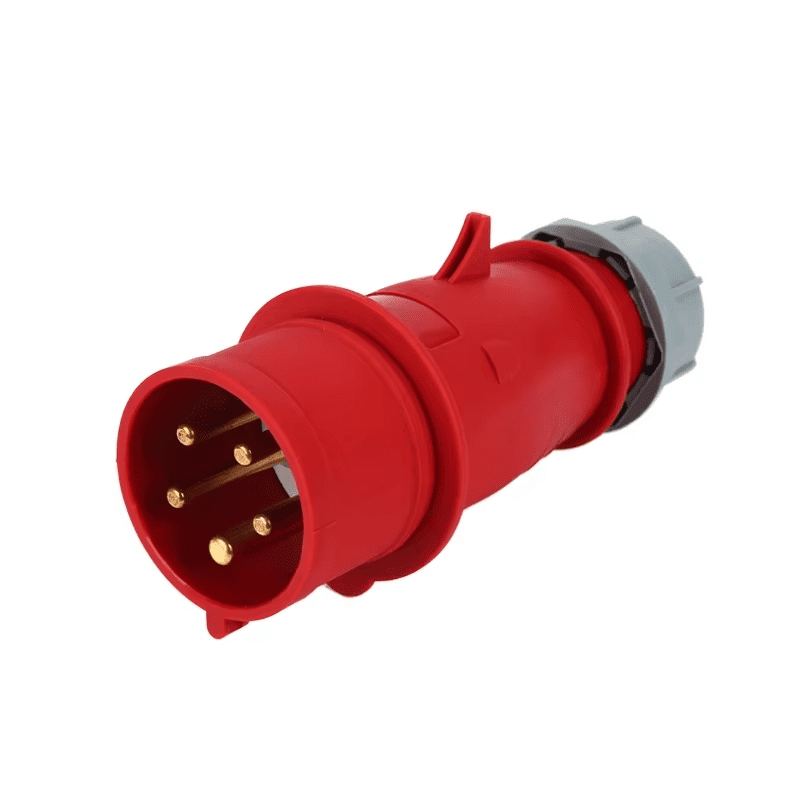

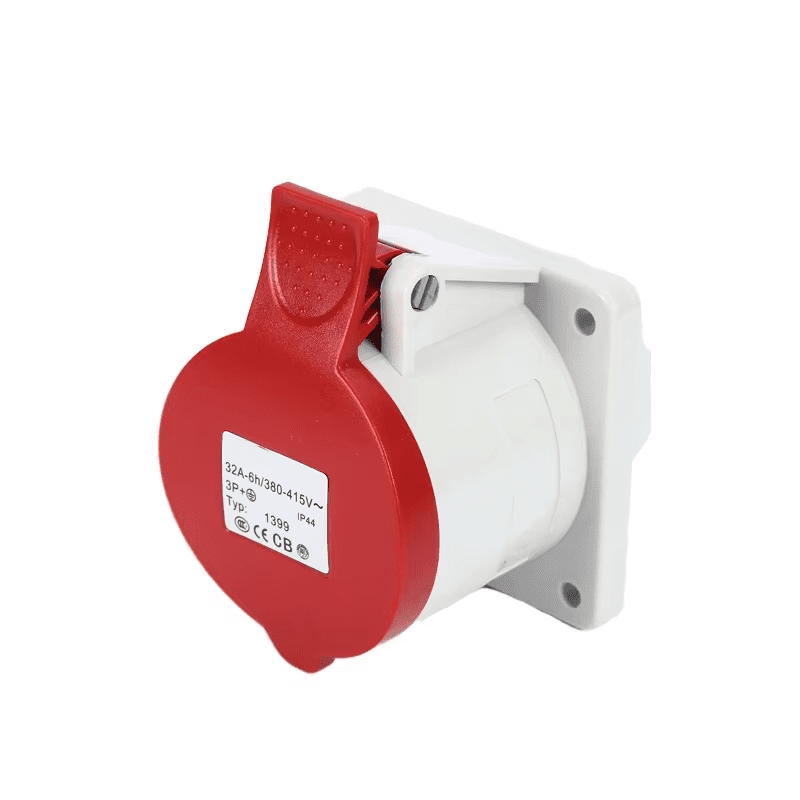

IP44 / IP67 Industrial Plug and Socket | 16A & 32A | IEC60309 3/4/5 Pin | Nylon & Brass Construction

Durable IP44 & IP67 Industrial Plug and Socket System for Global Standards

Our comprehensive industrial plug and socket system is engineered for reliability and safety across diverse industrial applications. Available in 16A and 32A ratings, it supports voltages from 200-250V to 380-415V, complying with the IEC60309 standard. The connectors feature robust PA Nylon housings and H59 brass contacts, ensuring excellent mechanical strength and electrical conductivity. With high ingress protection ratings of IP44 (splash-proof) and IP67 (waterproof and dust-tight), and certifications including CE, UKCA, RoHS, and ISO9001, this versatile system is ideal for panel mounting, wall mounting, and integration into machinery across various sectors.

Key Features & Benefits:

• Dual Protection Ratings: This industrial plug and socket system offers both IP44 and IP67 variants. Consequently, you can choose the right level of protection against dust and water for your specific environment, from light splash to complete immersion.

• Versatile Electrical Configurations: Available in 3-pin, 4-pin, and 5-pin configurations for 16A and 32A. This flexibility accommodates different wiring systems (single-phase and three-phase) and global voltage standards (200-250V & 380-415V).

• Robust Material Construction: We use high-grade PA Nylon for the housing, which resists impact, chemicals, and UV degradation. The internal contacts are made from H59 brass for superior conductivity and corrosion resistance, ensuring a long service life.

• Comprehensive Safety Certifications: The product holds major international certifications including CE, UKCA, RoHS, and ISO9001. Therefore, it meets stringent safety, quality, and environmental standards for markets in Europe, the UK, and beyond.

• Easy Installation & Application: Designed for convenient wall mounting or panel mounting. It is widely applicable in manufacturing, construction, outdoor power distribution, and any setting requiring a secure, waterproof electrical connection.

Technical Specifications:

• Current Ratings: 16A, 32A.

• Voltage Ratings: 200-250V 50-60Hz; 380-415V 50-60Hz.

• Pin Configurations: 3-Pin, 4-Pin, 5-Pin.

• Protection Ratings: IP44, IP67.

• Material: Housing: PA Nylon; Contacts: H59 Brass.

• Certifications: CE, RoHS, UKCA, COC, ISO9001.

• Standard: IEC60309.

• Warranty: 1 Year.

Ideal Applications:
This reliable industrial plug and socket system is perfect for:

• Industrial machinery and equipment power connections.

• Construction site temporary power distribution boxes.

• Marine, agricultural, and outdoor electrical installations.

• Panel building for control cabinets and automation systems.

• Any application demanding a certified, durable, and waterproof connector.

In summary, our industrial plug and socket system provides a globally compliant, high-performance solution for safe and reliable power connectivity.
