6000W High-Performance Industrial Switching Power Supply – Intelligent Power Management Solution

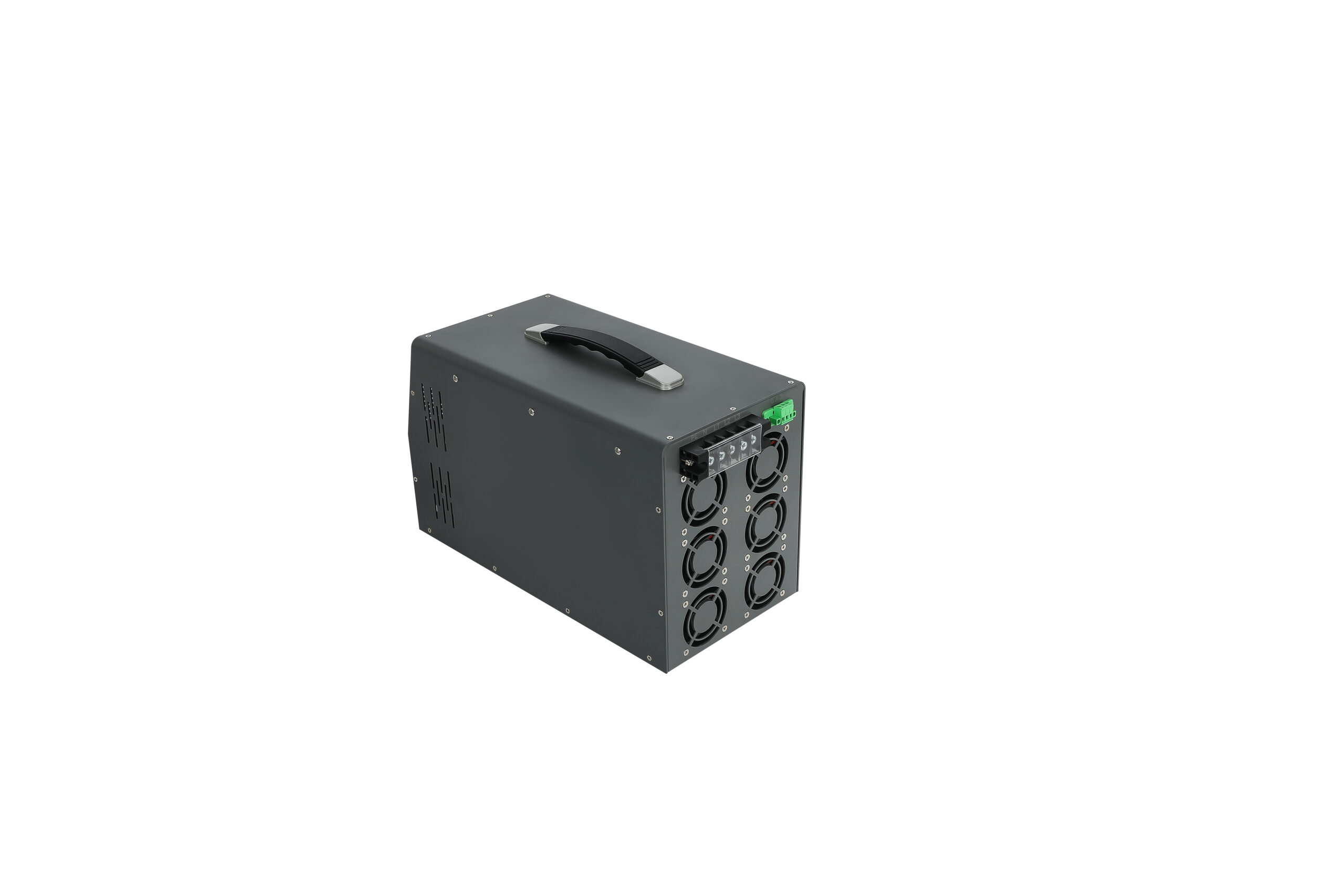

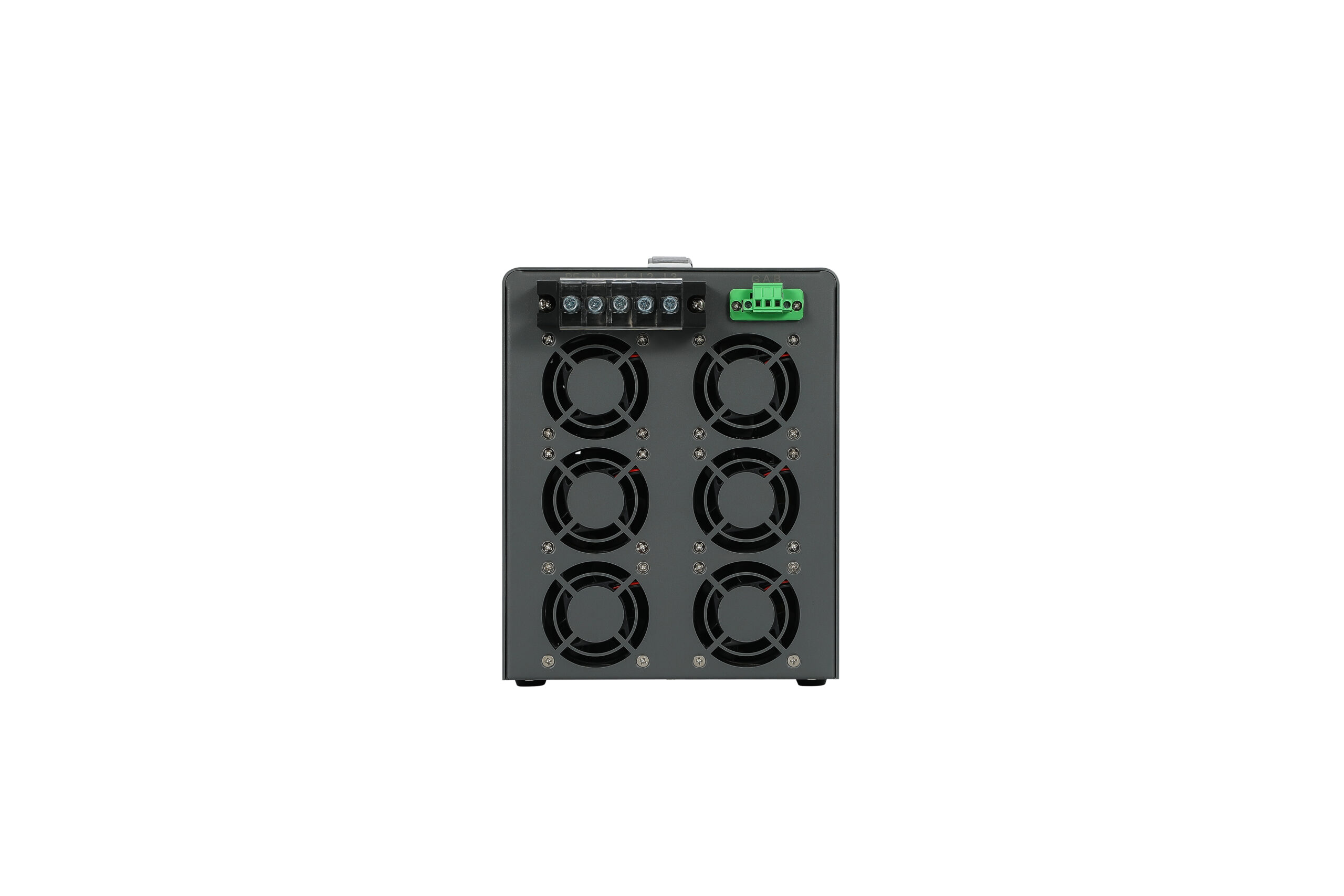

The GZN‑6000 is a 6 kW single‑output housed AC‑to‑DC power supply. It accepts a full input voltage range of 95–265 VAC and provides DC outputs to meet most industrial needs. Each model is air‑cooled by an internal speed‑controlled fan, allowing operation up to 60 °C. Built‑in functions such as adjustable output voltage and current, remote on/off control, 485 communication, auxiliary power, and others offer design flexibility.
Technical Specifications Table
Parameter | GZN‑6000‑24 | GZN‑6000‑36 | GZN‑6000‑48 | GZN‑6000‑60 | GZN‑6000‑110 | GZN‑6000‑220 |
|---|---|---|---|---|---|---|
| DC voltage | 24 V | 36 V | 48 V | 60 V | 110 V | 220 V |
| Rated current | 250 A | 166.6 A | 125 A | 100 A | 54.5 A | 27.2 A |
| Current range | 0–250 A | 0–166.6 A | 0–125 A | 0–100 A | 0–54.5 A | 0–27.2 A |
| Rated power | 6000 W | |||||
| Ripple & noise | 500 mV | 500 mV | 600 mV | 600 mV | 1000 mV | 1500 mV |
| Constant current range | 12–24 V | 18–36 V | 24–48 V | 30–60 V | 55–110 V | 110–220 V |
| Voltage tolerance | ±1.0 % | |||||
| Line regulation | ±1.0 % | |||||
| Load regulation | ±1.0 % | |||||
| Setup rise time | 1500 ms, 700 ms at 230 VAC (full load) | |||||
| Input voltage range | 95–190 VAC (output current 50 %), 195–265 VAC (output current 100 %) | |||||
| Frequency range | 45–65 Hz | |||||
| Power factor | PF ≥ 0.99 at 230 VAC (full load) | |||||
| Efficiency (max.) | 90 % | 91.5 % | 92 % | 92 % | 92.5 % | 93 % |
| AC current | < 56 A | |||||
| Leakage current | < 3.0 mA at 240 VAC | |||||
| Short circuit protection | Enters constant current mode (voltage < 10 % of rated voltage), turns off and locks output after 1 s, resumes after restart | |||||
| Over current protection | User‑set delay of 5 s after current limit, output restores after restart | |||||
| Over voltage protection | User‑set threshold, output turns off and resumes after restart | |||||
| Over temperature protection | Output turns off, recovers automatically or after temperature drops | |||||
| Output voltage adjustment | 0–26.4 V | 0–39.6 V | 0–52.8 V | 0–66 V | 0–121 V | 0–242 V |
| Output constant current adjustment | 0–250 A | 0–166.6 A | 0–125 A | 0–100 A | 0–54.5 A | 0–27.2 A |
| 485 communication | MODBUS protocol | |||||
| Isolating auxiliary power supply | 12 V, 0.5 A (customizable) | |||||
| Output remote control switch | Default power on, high = power off (5–12 V) (customizable) | |||||
| Alarm output | Power normal signal (dry contact ≤ 36 V, 0.1 A) (customizable) | |||||
| Operating temperature | –20 °C to +60 °C | |||||
| Operating humidity | 20–90 % RH, non‑condensing | |||||
| Storage temperature & humidity | –40 °C to +85 °C, 10–95 % RH, non‑condensing |
Category | Parameter | Value / Description |
|---|---|---|
| Safety & EMC | Vibration | 10–500 Hz, 2 G, 10 min/axis, X, Y, Z axes 60 min each |
| Isolation resistance | Input–output: 100 MΩ at 500 VDC, 25 °C, 70 % RH | |
| Withstand voltage | Input–Output: 2 kVAC; Input–FG: 2 kVAC; Output–FG: 0.5 kVAC | |
| Others | Dimensions | 432 × 179 × 242 mm (L × W × H) |
| Net weight | 12.5 kg |
Notes:
All parameters not specially mentioned are measured at 230 VAC input, rated load, and 25 °C ambient temperature.
Ripple & noise are measured at 20 MHz bandwidth using a 12‑inch twisted pair terminated with a 0.1 µF & 47 µF parallel capacitor.
Tolerance includes setup tolerance, line regulation, and load regulation.
If input voltage is low, output must be derated. Refer to static characteristic diagram for details.
Setup time is measured at cold start; turning the power supply on/off may increase setup time.
Unmatched Power and Precision for Industrial Applications
Our 6000W industrial switching power supply sets new standards for reliability and performance in demanding environments. Engineered with an ultra-wide 90-275VAC input range and multiple DC output options from 24V to 220V, this power supply delivers consistent performance regardless of grid fluctuations. With exceptional 93% efficiency and power factor correction (PF≥0.99), it significantly reduces energy costs while providing clean, stable power for sensitive industrial equipment.
Advanced Technical Specifications and Performance Features
Power Output and Electrical Characteristics
Total Power Rating: 6000W continuous output power
Output Voltage Options: 24V/250A, 36V/166.6A, 48V/125A, 60V/100A, 110V/54.5A, 220V/27.2A
Input Voltage Range: 90-275VAC auto-ranging (45-65Hz)
Efficiency: Up to 93% maximum, reducing operational costs
Power Factor: ≥0.99 at 230VAC full load
Voltage Stability: ±1.0% line and load regulation
Ripple & Noise: As low as 500mV depending on model
Intelligent Control and Communication Systems
MODBUS 485 Communication: Enables remote monitoring and control
Programmable Output: Adjustable voltage and current limits
Remote Control: On/off functionality with 5-12V signal
Status Monitoring: Alarm output for power normal signal
Auxiliary Power: 12V/0.5A isolated supply (customizable)
Comprehensive Protection and Safety Features
Short Circuit Protection: Constant current mode with auto-recovery
Over Current Protection: User-configurable with 5-second delay
Over Voltage Protection: Programmable shutdown threshold
Over Temperature Protection: Thermal shutdown with auto-recovery
Electrical Isolation: 3000VAC input-output isolation
Safety Certifications: Designed to meet international standards
Robust Environmental Specifications
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity Range: 20-90% RH non-condensing
Vibration Resistance: 10-500Hz, 2G, 60 minutes per axis
Cooling System: Intelligent temperature-controlled fan
Enclosure Protection: Industrial-grade metal housing
Application Versatility Across Industries
Industrial Automation and Control Systems
PLC and industrial controller power systems
Motor drives and motion control applications
Robotic assembly and manufacturing equipment
Industrial sensor networks and I/O modules
Specialized Equipment and Processing Systems
Laser cutting and engraving machines
UV curing equipment for printing and coating
Battery charging and testing systems
Electronic load and aging test equipment
Test, Measurement and Laboratory Applications
Laboratory power supply systems
Burn-in and reliability testing equipment
Telecommunications infrastructure
Research and development applications
Installation and Integration Features
Physical Specifications
Dimensions: 432×179×242mm (L×W×H)
Weight: 12.5 kg net weight
Mounting Options: Standard industrial rack or panel mounting
Connection Types: Heavy-duty screw terminals
Wiring and Connection Guidelines
Clear terminal markings for input and output connections
Separate functional earth and chassis ground terminals
Remote sense capability for voltage drop compensation
Alarm and control signal isolation
Quality and Reliability Assurance
Manufacturing Excellence
Each 6000W industrial switching power supply undergoes comprehensive testing including:
Full power burn-in testing at maximum load
High-potential isolation testing
Ripple and noise verification
Thermal cycling and vibration testing
Communication protocol validation
Performance Certification
CE compliance for European markets
RoHS compliance for environmental safety
Designed to meet IEC safety standards
Quality management system certification
Competitive Advantages and Value Proposition
Energy Efficiency Leadership
With efficiency ratings up to 93% and power factor correction, our 6000W switching power supply significantly reduces electricity consumption and minimizes harmonic distortion, contributing to lower operating costs and improved power quality.
Intelligent Power Management
The integrated MODBUS 485 communication enables seamless integration into industrial automation systems, allowing for remote monitoring, control, and data logging of power parameters.
Global Compatibility
The wide input voltage range and international safety design make this power supply suitable for deployment worldwide, eliminating the need for region-specific models and simplifying global operations.
