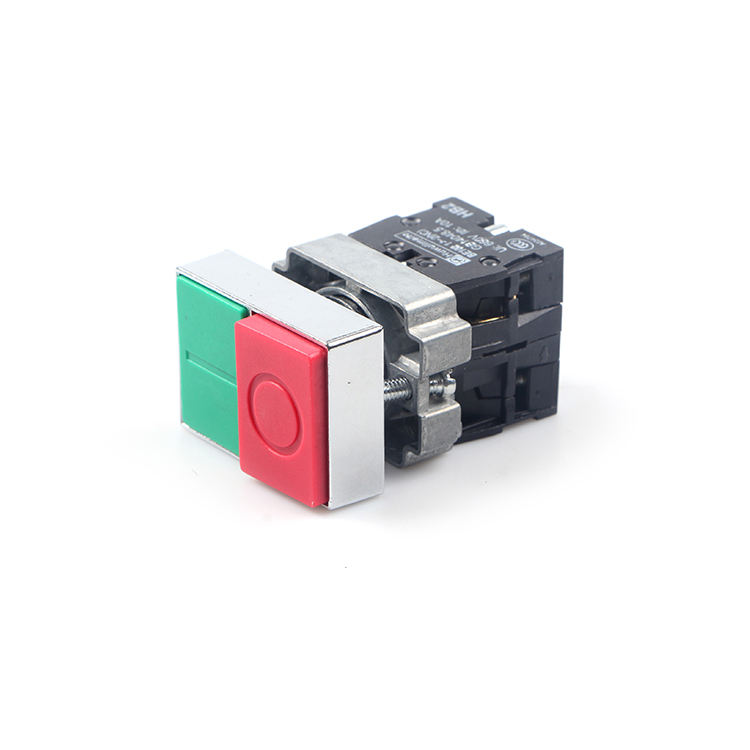

22mm Metal Dual Push Button Switch – NO NC Momentary ON/OFF Switch 16A 380V with Red Green Buttons

This 22mm Metal Dual Push Button Switch provides versatile control capabilities for complex industrial applications. Featuring independent NO and NC momentary contacts in a single compact unit, this switch enables both start/stop and dual-function control operations. With its robust metal construction and 16A/380V rating, it delivers reliable performance in demanding industrial environments while providing clear visual indication through distinctive red and green buttons.

Advanced Technical Features

• Dual Button Design: Separate red and green buttons for different control functions

• Independent Contacts: NO (Normally Open) and NC (Normally Closed) circuits

• Momentary Action: Self-resetting operation for temporary control functions

• High Current Capacity: 16A rating at 380V for industrial applications

• Metal Construction: Durable housing for long-term reliability

• CE Certification: Complies with European safety standards

Comprehensive Application Range

This dual-function switch serves multiple control needs across various industrial sectors. The separate NO and NC contacts make it ideal for motor control (forward/reverse), equipment start/stop functions, and process control applications. Additionally, the color-coded buttons provide intuitive operation in control panels, machinery interfaces, and automation systems where multiple control functions are required in a compact space.

Detailed Technical Specifications

• Button Diameter: 22mm

• Mounting Size: 22mm panel cutout

• Contact Configuration: NO + NC (independent circuits)

• Rated Voltage: 6-380V

• Rated Current: 16A

• Contact Resistance: ≤50mΩ (initial)

• Dielectric Strength: 2500V AC for 1 minute

• Button Colors: Red + Green

• Housing Material: Metal

• Operation Type: Momentary (self-resetting)

• Certification: CE

• Model: XB2-BA4322

• Product Weight: 0.300 kg

Performance and Operational Advantages

This dual switch offers significant space-saving benefits by combining two control functions in a single 22mm unit. The independent NO and NC contacts provide wiring flexibility for complex control circuits, while the color-coded buttons enable intuitive operator interface. The high current rating ensures compatibility with industrial power systems, and the momentary action guarantees consistent performance across numerous operations.

Installation and Integration

Featuring standard 22mm mounting dimensions and industry-standard design, this dual switch ensures easy integration into control panels and electrical enclosures. The distinct red and green coloring provides clear functional identification, reducing operator error in critical control applications.
