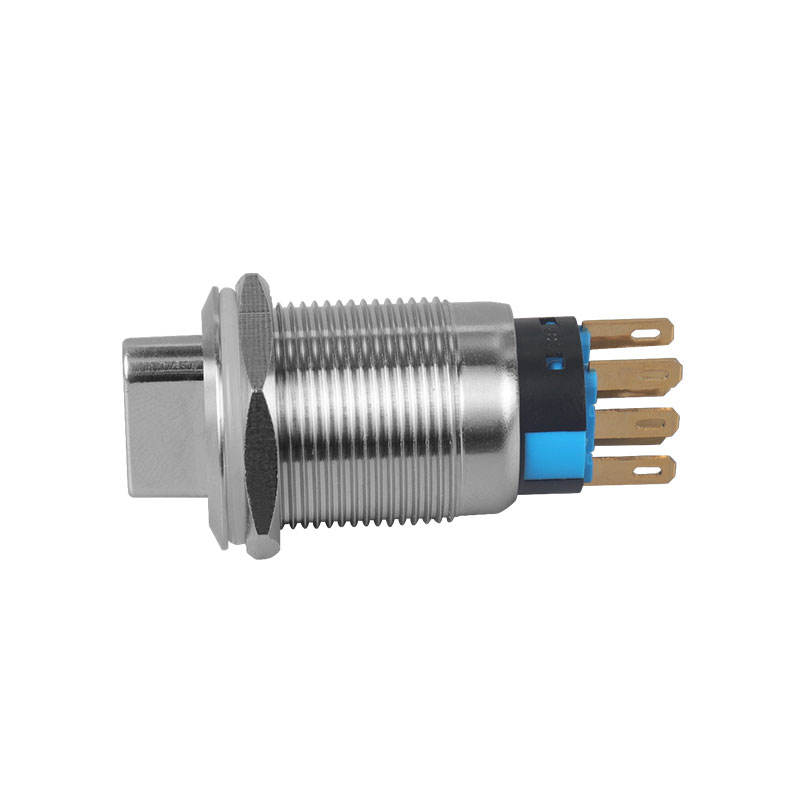

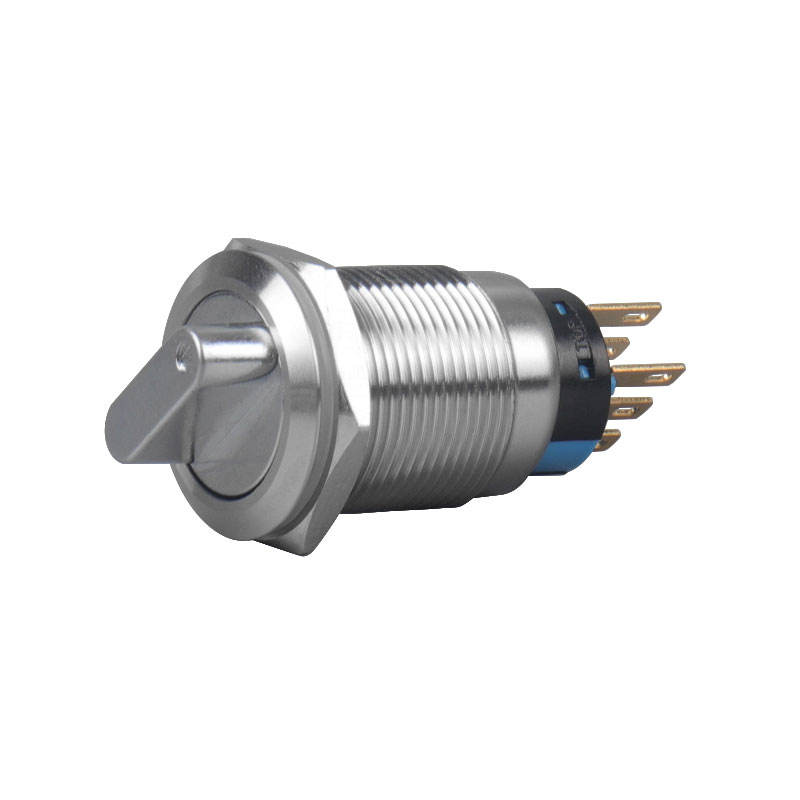

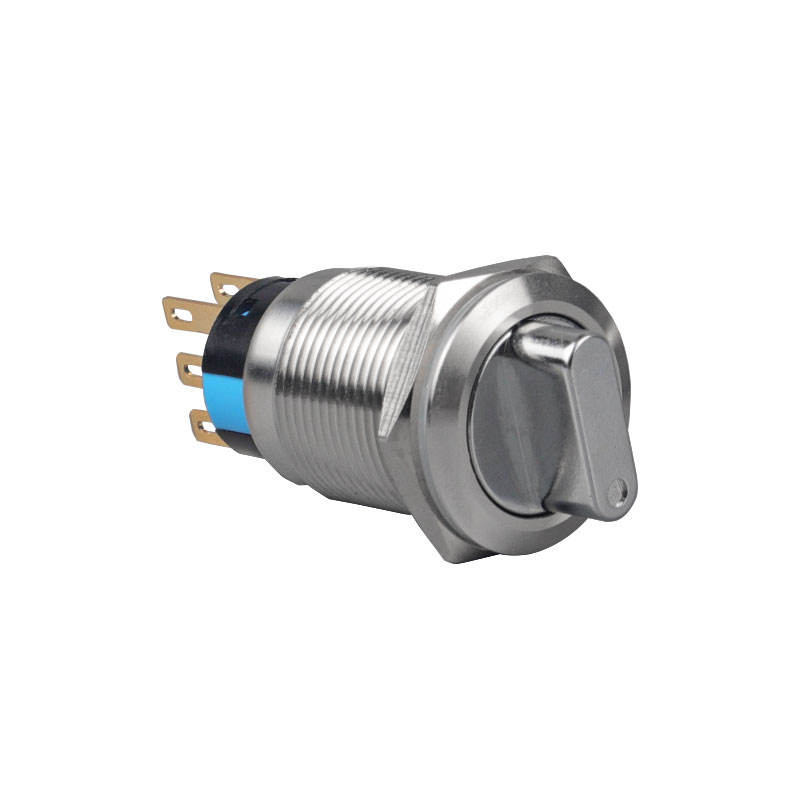

19mm IP65 3-Position Selector Switch – 2NO 2NC Rotary Metal Switch with Self-Locking – 5A 220V Stainless Steel

Multi-Position Industrial Selector Switch

This 19mm IP65 3-Position Selector Switch offers versatile control capabilities for complex industrial applications. Featuring a robust stainless steel construction with 2NO + 2NC contact configuration and self-locking rotary mechanism, this switch provides reliable multi-position control in demanding environments. Furthermore, its IP65 waterproof rating and 5A/220V capacity make it suitable for machinery, automation systems, and equipment requiring multiple operational modes.

Advanced Technical Features

• 3-Position Selector Function: Provides multiple control states for complex operations

• Dual Contact Configuration: 2NO + 2NC contacts offer extensive circuit control options

• Self-Locking Rotary Mechanism: Maintains selected position until manually changed

• IP65 Waterproof Protection: Completely sealed against dust and water jets

• Stainless Steel Construction: Corrosion-resistant housing for long-term durability

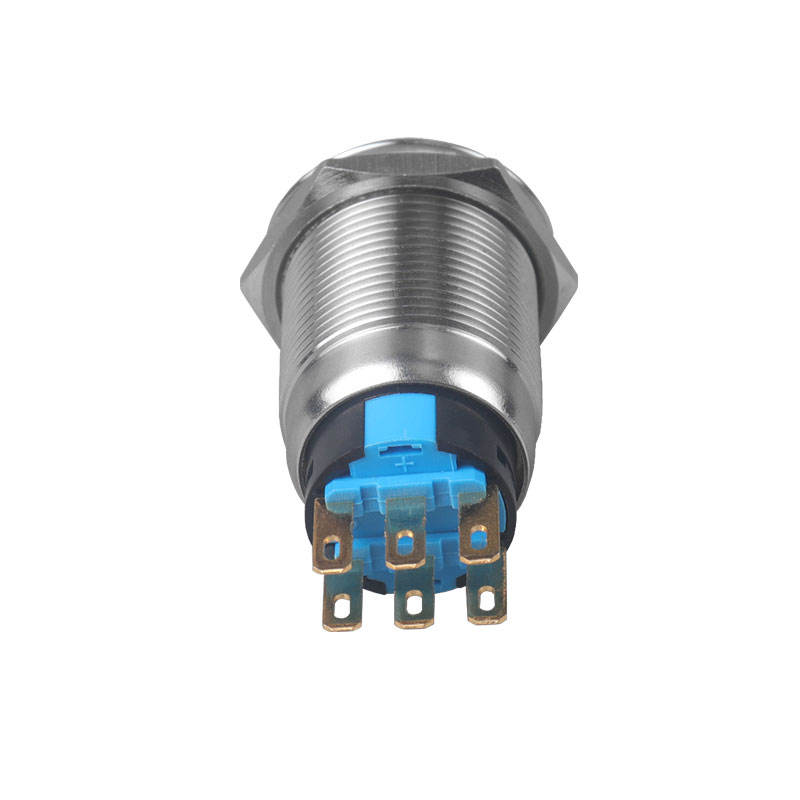

• 6-Pin Terminal Design: Facilitates comprehensive wiring for multiple circuits

Comprehensive Application Range

This versatile selector switch serves advanced control needs across multiple industries. Its multi-position functionality makes it ideal for machine mode selection, motor control (forward/stop/reverse), and process stage selection. Additionally, the IP65 rating ensures reliable performance in industrial control panels, outdoor equipment, and manufacturing environments where dust and moisture protection is essential.

Detailed Technical Specifications

• Overall Dimensions: 22mm

• Mounting Hole Size: 19mm

• Contact Configuration: 2NO + 2NC

• Switch Positions: 3 positions

• Rated Voltage: 220V/240V

• Rated Current: 5A

• Protection Rating: IP65

• Housing Material: Stainless Steel

• Contact Material: Nickel-Plated Brass

• Terminal Type: 6-Pin Terminals

• Operation Type: Self-Locking Rotary

• Certification: CE, RoHS

• Product Weight: 0.050 kg

Performance and Control Advantages

This selector switch delivers exceptional value through its combination of multiple positions and extensive contact configuration. The self-locking mechanism ensures stable operation without accidental position changes, while the 2NO + 2NC contacts provide flexibility for controlling multiple circuits simultaneously. Consequently, users can replace multiple single-function switches with this single, comprehensive solution, simplifying panel design and improving operational efficiency.

Installation and Compliance

Featuring standard 19mm mounting and compact 22mm overall dimensions, this switch ensures easy integration into various control panels. The 6-pin terminal design accommodates the complex wiring requirements of multi-position, multi-circuit applications, while the CE and RoHS certifications guarantee compliance with international safety and environmental standards.
