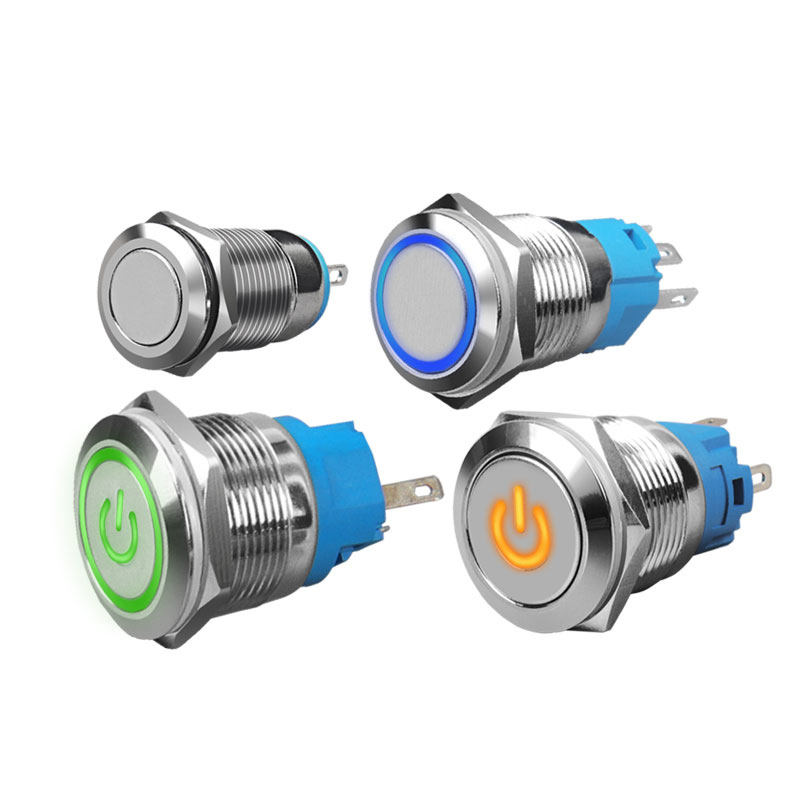

16mm Metal LED Push Button Switch – 5V Green Illuminated Momentary Marine Switch – IP54 Rated with Custom Symbols

Premium Illuminated Marine-Grade Switch

This 16mm Metal LED Push Button Switch delivers exceptional performance for marine and industrial applications requiring clear visual feedback. Featuring a bright 5V green LED illumination and rugged metal construction, this momentary switch combines reliable electrical performance with environmental resistance. Furthermore, its IP54 rating and customizable symbol options make it ideal for marine control panels, industrial equipment, and specialized applications where both durability and clear indication are essential.

Advanced Technical Features

• Low Voltage Illumination: 5V green LED provides clear indication with low power consumption

• Marine-Grade Construction: Brass and aluminum materials offer excellent corrosion resistance

• Environmental Protection: IP54 rating protects against dust and water splashes

• Custom Symbol Options: Customizable head symbols for specific application identification

• Versatile Voltage Compatibility: Supports LED voltages from 2V to 250V for various applications

• Momentary Action: Self-resetting operation ideal for temporary control functions

Comprehensive Application Range

This illuminated switch serves critical roles across multiple demanding environments. Specifically designed for marine applications, it also excels in industrial control systems, household appliances, and specialized equipment. Additionally, the customizable symbols make it perfect for international applications where universal recognition is required, while the corrosion-resistant construction ensures reliability in humid and salty environments.

Detailed Technical Specifications

• Button Diameter: 16mm

• Mounting Hole Size: 18mm

• Contact Configuration: 1NO + 1NC

• LED Voltage: 5V (compatible with 2V-250V range)

• LED Color: Green (other colors available)

• Protection Rating: IP54

• Housing Material: Brass, Aluminum, Metal

• Terminal Type: 5-pin terminal

• Operation Type: Momentary (self-resetting)

• Illumination Type: Fully illuminated button

• Head Shape: Customizable symbols

• Materials: Brass, Lead, Aluminum

Performance and Customization Advantages

This switch offers significant advantages through its combination of marine-grade durability and customization options. The brass and aluminum construction provides excellent corrosion resistance in marine environments, while the customizable symbols allow for clear functional identification. Consequently, users benefit from both long-term reliability and improved operational safety through clear visual communication.

Installation and Integration Flexibility

Featuring standard 16mm button diameter with 18mm mounting hole, this switch ensures easy integration into various control panels. The 5-pin terminal design provides separate connections for switch operation and LED illumination, allowing for flexible circuit design and easy installation in both new and existing systems.
