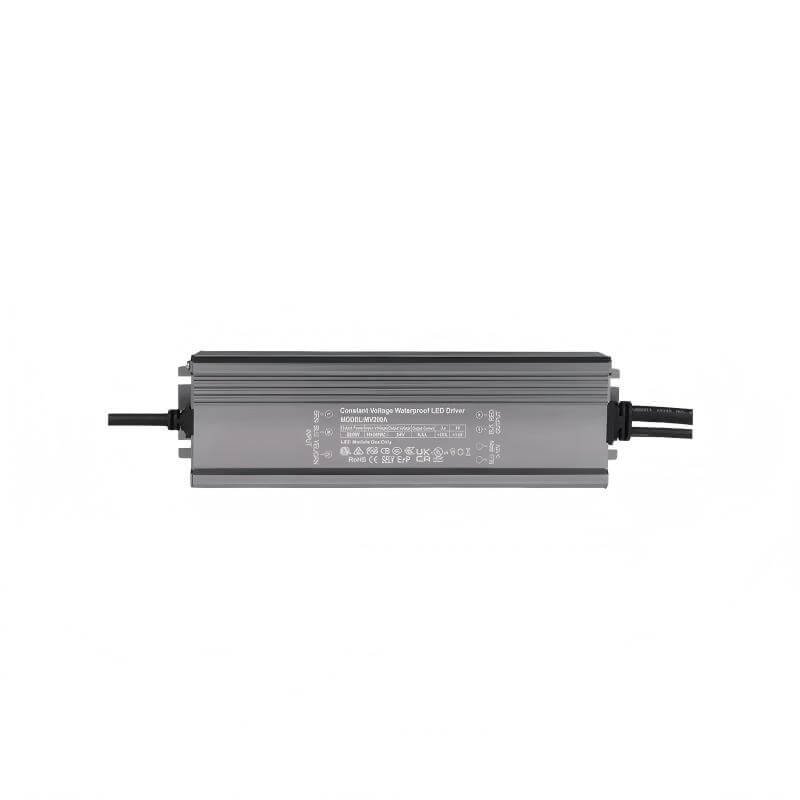

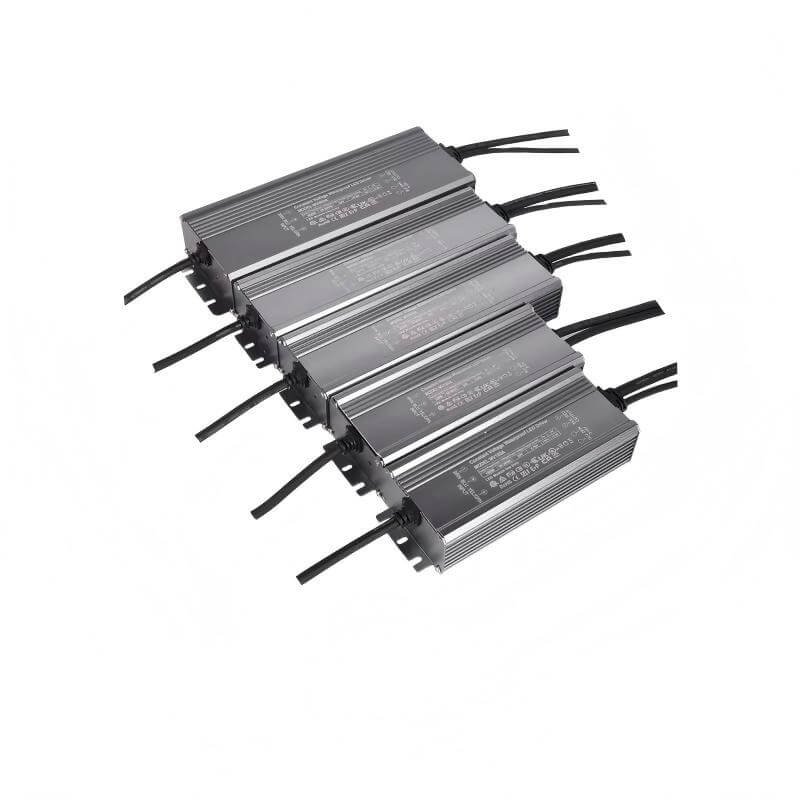

150W-600W IP67 Dimmable LED Driver (0-10V/PWM, Constant Current)

 IP67 Waterproof Dimmable LED Driver (150W, 200W, 250W, 300W, 400W, 500W, 600W) – Constant Current



Sub-header: Professional-Grade, Dim-to-Black Power Supply for High-Power Outdoor & Flood Lighting Projects

150W-600W IP67 Dimmable LED Driver Engineered for demanding commercial and architectural lighting, this high-performance constant current LED driver delivers reliable, flicker-free power to LED arrays from 150W to 600W. Featuring universal 100-240VAC input and dual 0-10V analog / PWM dimming compatibility, it offers seamless integration with professional lighting control systems. The rugged aluminum housing and IP67 waterproof rating ensure dependable operation in harsh outdoor environments, making it the ideal choice for floodlights, high-bay lights, stadium lighting, and landscape illumination.

Key Features & Benefits:

• Professional Dimming Control: Supports both 0-10V analog and PWM signal dimming for smooth, continuous dimming down to 0% (dim-to-black), compatible with most industry-standard controllers and DALI gateways.

• High-Power Constant Current Output: Provides stable, regulated constant current for driving high-power COB LEDs, LED modules, and arrays, ensuring consistent brightness and color.

• Rugged & Weatherproof Design: IP67-rated enclosure is fully sealed against dust and temporary immersion, built to withstand rain, snow, and outdoor conditions. Durable aluminum case acts as an efficient heat sink.

• Wide Power Range: Scalable from 150W to 600W to match the requirements of single or multiple high-lumen LED fixtures.

• High Efficiency & Power Factor: Efficiency up to 89% reduces energy waste and thermal stress. Power Factor (PF) > 0.9 minimizes reactive power, improving grid efficiency and meeting commercial electrical specs.

• Comprehensive Protection Suite: Integrated Short Circuit, Over Temperature, Overload, and Over Voltage Protection safeguard both the driver and your valuable LED investment.

• Wide Operating Temperature: Operates reliably in extreme temperatures from -40°C to +90°C (case temperature), suitable for global climates.

• Long-Term Reliability: Backed by a robust 5-Year Warranty, reflecting confidence in its construction and component quality.

Technical Specifications:

• Input Voltage: 100 ~ 240VAC (Universal, 50/60Hz)

• Output Type: Constant Current (CC)

• Output Power Models: 150W, 200W, 250W, 300W, 400W, 500W, 600W

• Output Current Range: Adjustable, typically 1A ~ 7A (varies by model – consult datasheet)

• Dimming Interfaces: 0-10V Analog & PWM (Pulse Width Modulation)

• Dimming Range: 0% to 100% (Typically)

• Efficiency: 80% ~ 89% (typical)

• Power Factor (PF): > 0.9

• Total Harmonic Distortion (THD): < 20%

• Protections: Short Circuit / Over Temperature / Overload / Over Voltage

• Ingress Protection: IP67 (Dust-tight and protected against temporary immersion)

• Housing Material: Aluminum Alloy

• Operating Temperature (Case): -40°C ~ +90°C

• Certifications: CE, TUV, SAA, RoHS, ENEC (Designed to meet)

• Warranty: 5 Years

Common Search Keywords Integrated:

• Dimmable LED Driver

• Constant Current Power Supply

• IP67 LED Driver

• 0-10V Dimming Driver

• PWM Dimming

• High Power LED Driver

• Waterproof LED Power Supply

• 300W LED Driver

• Outdoor LED Driver

• Flood Light Power Supply

Why Choose This Dimmable LED Driver?

• System Integration Ready: Dual dimming protocol support ensures compatibility with a wide range of architectural and commercial lighting control systems without extra converters.

• Maximizes LED Lifespan: Precise constant current output and excellent thermal management prevent LED overdriving and overheating, a key factor in long-term reliability.

• Reduces Total Cost of Ownership: High efficiency lowers electricity bills, while the robust build and long warranty minimize maintenance and replacement costs.

• Simplifies Design: One driver model can be specified for various projects, simplifying inventory and design for installers and engineers.

Ideal Applications:

• LED Floodlights & Stadium Lighting

• High-Bay & Warehouse LED Lighting

• Architectural Facade & Wall Wash Lighting

• Outdoor Area & Landscape Lighting

• Industrial & High-Ceiling Commercial Lighting

• Tunable White or Color-Changing LED Systems (with appropriate controller)

Wiring & Dimming Guide:

• Ensure the driver’s output current (mA/A) and voltage range match your LED module’s specifications.

• Connect the 0-10V or PWM control wires from your dimmer/controller to the driver’s dedicated dimming terminals.

• For multiple drivers, ensure your control signal has sufficient capacity or use a signal amplifier.

• Always install in a location where the IP67 seal is not compromised and allows for heat dissipation.

Ordering Information:
Select the model based on your required Output Power (Wattage) and confirm the Output Current (mA/A) matches your LED load. Detailed specification sheets with current adjustment ranges are available for each model.
