12V/24V Constant Voltage AC/DC SMPS for LED Strips (60W-400W)

Constant Voltage Switching Power Supply 12V / 24V DC for LED Lighting (60W, 100W, 150W, 200W, 300W, 400W)

Sub-header: High-Performance AC to DC SMPS Driver for LED Strips, Signage, and Low-Voltage Lighting Systems

Product Overview:

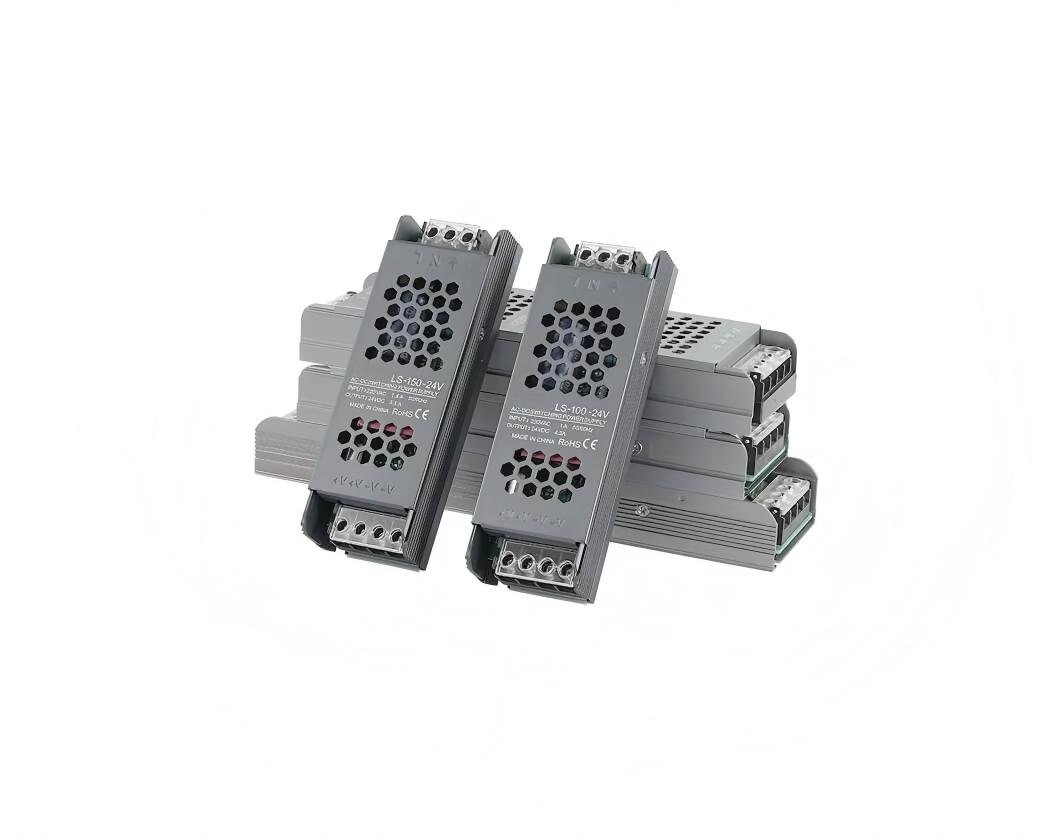

This robust Constant Voltage Switching Mode Power Supply (SMPS) is engineered specifically for LED lighting applications requiring stable and reliable 12V or 24V DC power. Ideal for powering LED strip lights, modules, signage, cabinet lighting, and other constant voltage LED fixtures, it converts standard household AC voltage into a clean, regulated DC output. With a wide range of power ratings from 60W to 400W, it offers a perfect match for various project scales, from DIY home lighting to commercial installations.

Key Features & Benefits:

• Dedicated for LED Lighting: Provides the stable, constant voltage that LED strips and modules require for optimal performance and longevity.

• Dual Voltage Option: Available in standard 12V DC and 24V DC outputs to match your specific LED product specifications.

• Wide Power Range: Scalable power options (60W, 100W, 150W, 200W, 300W, 400W) allow you to select the right capacity for your total LED load, plus a safety margin.

• High Efficiency & Cool Operation: Up to 85% efficiency minimizes energy waste as heat, allowing for a more compact design and reliable operation even in enclosed spaces.

• Comprehensive Protections: Built-in safeguards including Short Circuit Protection, Overload Protection, and Over-Temperature Protection automatically shut down the unit to prevent damage to both the power supply and your valuable LED lights.

• Plug-and-Play Installation: Simple wiring with clear terminal blocks for AC input and DC output. Compact and lightweight design for easy mounting.

• Safety & Compliance: Designed to meet stringent international standards for safety and electromagnetic compatibility.

Technical Specifications (Representative Model: 200W 24V Example):

• Input Voltage (AC): 180 ~ 264VAC (Universal for 200V-240V regions)

• Output Voltage (DC): 12V or 24V (Constant Voltage)

• Output Power Options: 60W, 100W, 150W, 200W, 300W, 400W

• Rated Output Current: Varies by model (e.g., 8.3A @ 24V for 200W model)

• Output Voltage Accuracy: ±1%

• Efficiency: Up to 85% (typical)

• Ripple & Noise: Low ripple for stable LED operation (e.g., <150mVp-p)

• Protections:

  • Short Circuit Protection (Auto-recovery)

  • Overload Protection (105%-135%)

  • Over-Temperature Protection (Thermal shutdown)

• Cooling: Temperature-controlled fan cooling (on higher wattage models) or convection cooling.

• Operating Conditions: -10°C ~ +50°C, 20~90% RH

• Safety & EMC Standards: CE, RoHS compliant. Designed to meet relevant parts of EN55015, EN61547, EN61000-3-2, etc.

• Housing: Metal enclosure for durability and effective heat dissipation.

• Dimensions (Approx. for 200W): 208 x 63 x 29 mm (Varies by power rating)

• Warranty: 2 Years

Common Search Keywords Integrated (Based on your lists):

• LED Power Supply

• 12V Power Supply

• 24V Power Supply

• Constant Voltage Power Supply

• AC DC Power Supply

• SMPS Power Supply

• Switching Power Supply

• LED Driver

• LED Strip Power Supply

• 200W Power Supply

• LED Light Power Supply

Why Choose This LED Power Supply?

• Prevents LED Flicker: Stable output voltage ensures your LED strips and fixtures remain bright and flicker-free.

• Extends LED Lifespan: Clean, regulated power reduces stress on LED components, helping them reach their full rated life.

• Versatile Application: Suitable for a vast array of 12V/24V LED products used in interior decoration, retail displays, accent lighting, and architectural features.

• Reliable & Safe: Robust protections guard against common installation errors and unstable grid conditions, giving you peace of mind.

Application Scenarios:

• Indoor/Outdoor LED Strip Lighting

• LED Channel Letters and Signage

• Cabinet, Cove, and Under-Cabinet Lighting

• LED Panel Lights and Modules

• Low-Voltage Landscape Lighting

• DIY LED Projects and Installations

• Display Case and Showcase Lighting

Installation & Selection Guide:

1. Calculate Total Wattage: Sum the wattage of all LEDs you plan to connect. Choose a power supply with a rated wattage 20-30% higher than this total for safety and longevity.

2. Check Voltage: Match the output voltage (12V or 24V) to your LED product’s requirement.

3. Consider Environment: Ensure the operating temperature range suits your installation location (indoor/outdoor, enclosed space).

Ordering Information:
Specify your required Output Voltage (12V or 24V) and Output Power Rating (e.g., 200W). For high-wattage applications, consider parallel wiring or using multiple units.
